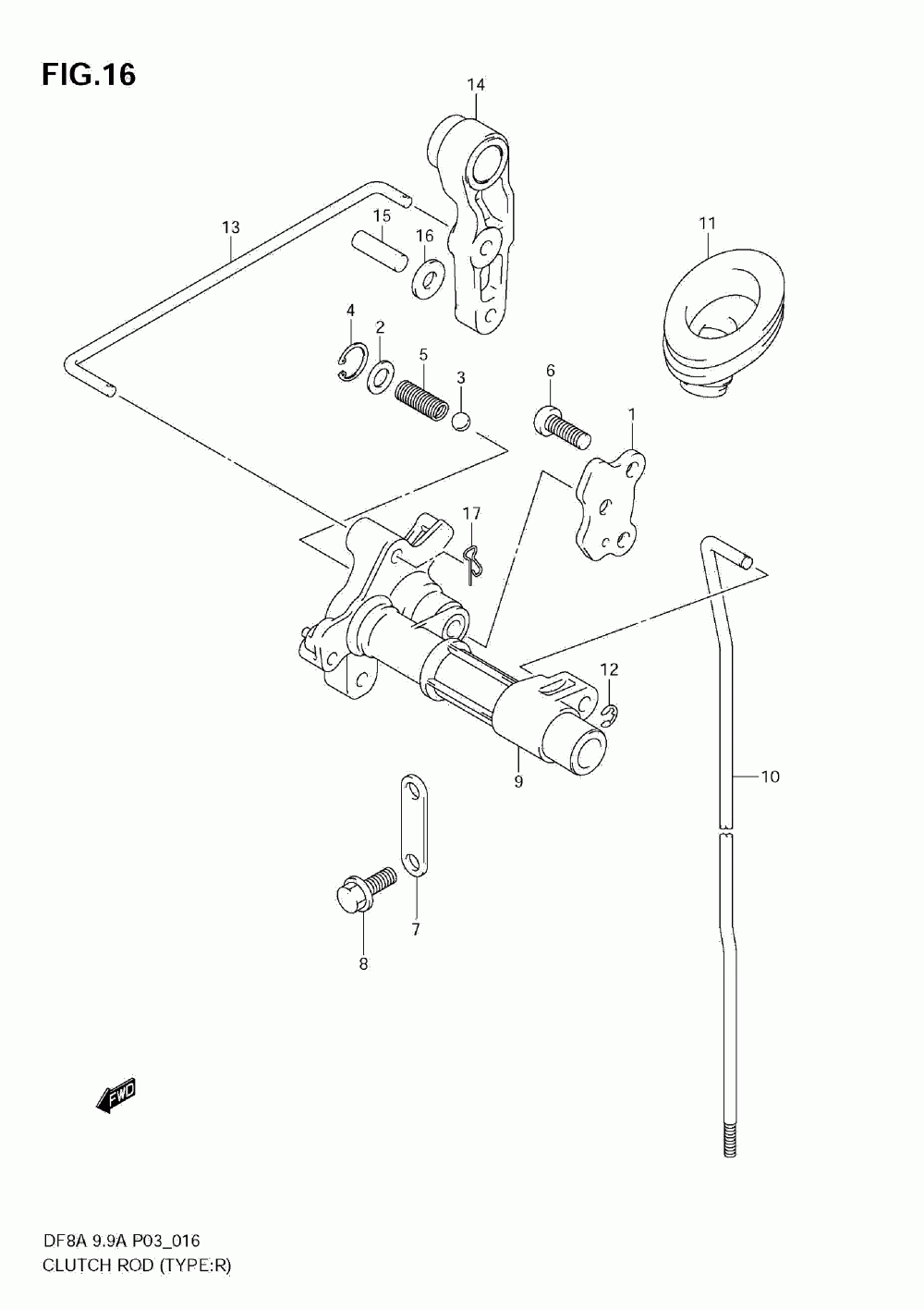

Clutch Rod (type:r)
Clutch Rod (type:r)

Clutch Rod (type:r)

Suzuki Marine DF9.9AR

Clutch Rod (type:r)

#

oem код

название

цена

1

PLATE, CLUTCH NOTCH

PLATE, CLUTCH NOTCH

2

WASHER, NOTCH SPRING (6.5X13X1)

WASHER, NOTCH SPRING (6.5X13X1)

3

BALL, CLUTCH NOTCH

BALL, CLUTCH NOTCH

4

CIRCLIP, NOTCH SPRING

CIRCLIP, NOTCH SPRING

5

SPRING, CLUTCH NOTCH

SPRING, CLUTCH NOTCH

6

SCREW, NOTCH PLATE

SCREW, NOTCH PLATE

7

HOLDER, CLUTCH SHAFT

HOLDER, CLUTCH SHAFT

8

Болт

Болт

9

SHAFT, CLUTCH LEVER

SHAFT, CLUTCH LEVER

10

ROD, CLUTCH (L)

ROD, CLUTCH (L)

10

ROD, CLUTCH (S)

ROD, CLUTCH (S)

11

BOOT, CLUTCH ROD

BOOT, CLUTCH ROD

12

Стопорное Е-кольцо

Стопорное Е-кольцо

13

LINK, CLUTCH LEVER

LINK, CLUTCH LEVER

14

LEVER, CLUTCH CONTROL

LEVER, CLUTCH CONTROL

15

PIN, CLUTCH LEVER LINK

PIN, CLUTCH LEVER LINK

16

WASHER, CL LINK LEVER (5.5X12X0.8)

WASHER, CL LINK LEVER (5.5X12X0.8)

17

CLIP, CL LEVER LINK

CLIP, CL LEVER LINK
