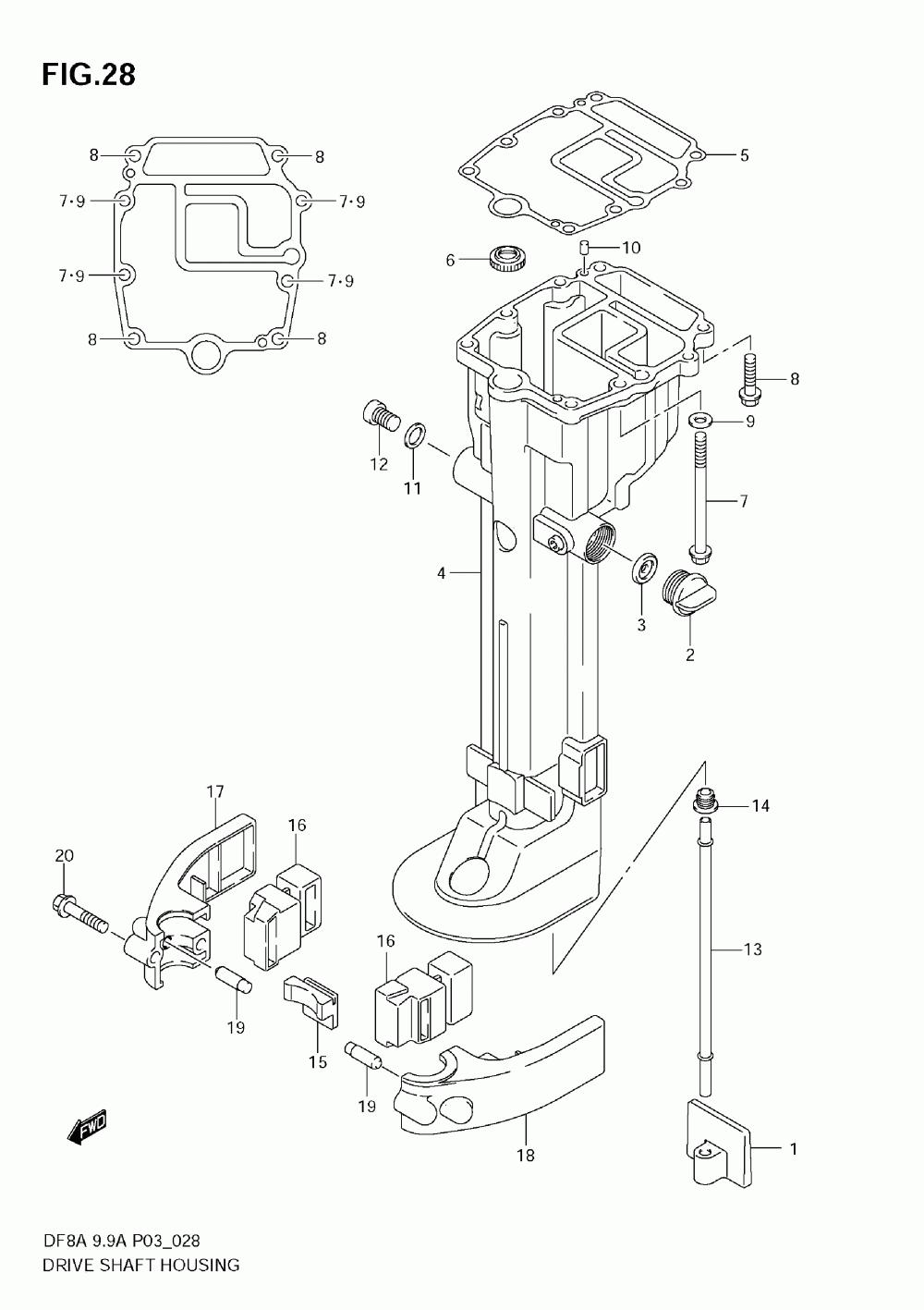

КОРПУС ПРИВОДНОГО ВАЛА
КОРПУС ПРИВОДНОГО ВАЛА

КОРПУС ПРИВОДНОГО ВАЛА

Suzuki Marine DF9.9AR

КОРПУС ПРИВОДНОГО ВАЛА

#

oem код

название

цена

1

GUIDE, WATER TUBE

GUIDE, WATER TUBE

2

PLUG, WATER

PLUG, WATER

3

GASKET, WATER PLUG

GASKET, WATER PLUG

4

52110-99J00-0EP

HOUSING, DRIVE SHAFT (S)

HOUSING, DRIVE SHAFT (S)

4

52110-99J10-0EP

HOUSING, DRIVE SHAFT (L)

HOUSING, DRIVE SHAFT (L)

5

GASKET, DRIVE SHAFT HSG

GASKET, DRIVE SHAFT HSG

6

GUIDE, DRIVE SHAFT

GUIDE, DRIVE SHAFT

8

BOLT, DRIVE SHAFT HSG (8X30)

BOLT, DRIVE SHAFT HSG (8X30)

9

WASHER, DRIVE SHAFT HSG (8.5X16X1.2)

WASHER, DRIVE SHAFT HSG (8.5X16X1.2)

10

PIN, KNOCK (6X10)

PIN, KNOCK (6X10)

11

GASKET, DRAIN PLUG (12X17X1)

GASKET, DRAIN PLUG (12X17X1)

12

PLUG, DRAIN (12X18.65)

PLUG, DRAIN (12X18.65)

13

Трубка водная (L)

Трубка водная (L)

13

TUBE, WATER (S)

TUBE, WATER (S)

14

GROMMET, WATER TUBE

GROMMET, WATER TUBE

15

MOUNT, LWR THRUST

MOUNT, LWR THRUST

16

MOUNT, LWR SIDE

MOUNT, LWR SIDE

17

54211-99J00-0EP

COVER, LWR MOUNT STBD

COVER, LWR MOUNT STBD

18

54221-99J00-0EP

COVER, LWR MOUNT PORT

COVER, LWR MOUNT PORT

19

PIN, KNOCK

PIN, KNOCK

20

BOLT, LWR MOUNT COVER (8X40)

BOLT, LWR MOUNT COVER (8X40)
