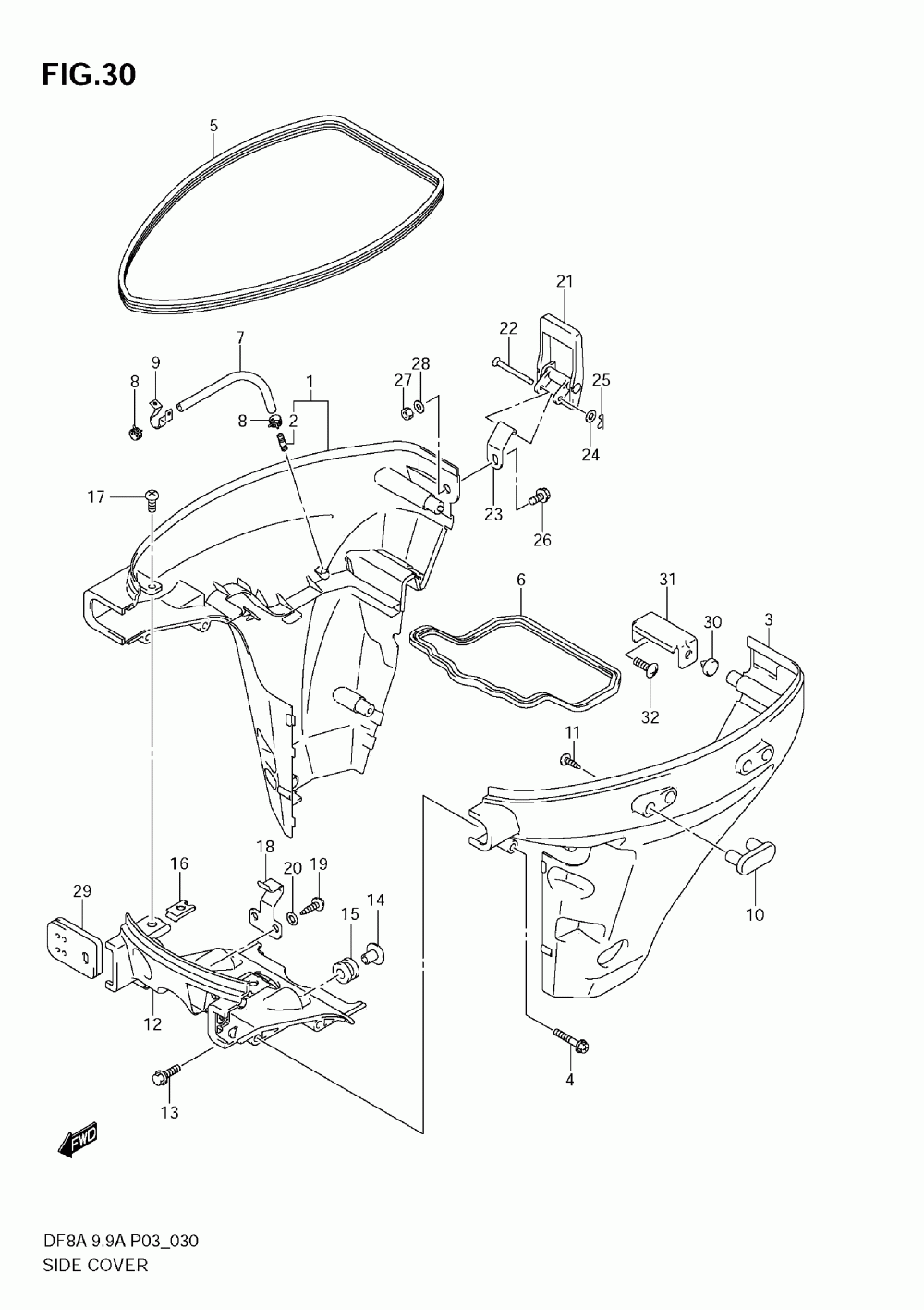

БОКОВАЯ КРЫШКА

Suzuki Marine DF9.9AR
Suzuki Marine
#oem кодцена
1
61810-99J00-0EP
COVER, SIDE STBD
3
61821-99J00-0EP
COVER, SIDE PORT
4
61815-99J00
SCREW, SIDE COVER (6X35)
5
61112-99J00
Резинка
6
61134-99JL0
SEAL, SIDE COVER
6
61134-99J00
SEAL, SIDE COVER
7
61157-99J00
HOSE, WATER INSPECTION
8
09401-08413
CLIP, WATER INSPECTION HOSE
9
09403-12316
CLAMP, WATER INSPECTION HOSE
10
61851-93E10
PROTECTOR, SIDE COVER
11
59139-94J00
SCREW, PROTECTOR
12
61831-99J00-0EP
Панель
13
09116-06133
BOLT, FRONT PANEL (6X25)
14
09169-06075
WASHER, FRONT PANEL
15
09320-09039
CUSHION, FRONT PANEL
16
09148-06017
NUT, FRONT PANEL
17
02142-06167
SCREW, FRONT PANEL
18
61412-99J00
HOOK, FRONT PANEL
19
61643-99J00
SCREW, HOOK
20
09160-05029
WASHER, HOOK SCREW (5.5X12X0.8)
21
61610-93901
Застежка
22
61616-93E00
PIN, LEVER
23
61642-99J00
HOLDER, FASTENER LEVER
24
09161-04012
WASHER, FASTENER LEVER PIN (4.2X11X1)
25
09385-04003
PIN, SNAP
26
29103-93J00
BOLT, HOLDER (6X12)
27
08310-00067
NUT, FASTENER HOLDER
28
09160-06082
WASHER, HOLDER NUT (6.5X13X1)
29
61124-99J10
GROMMET, R-CON CABLE (STBD)
29
61124-99J00
GROMMET, CABLE (STBD)
30
61151-99J00
CUSHION, SIDE COVER HOLDER
31
61827-99J00
HOLDER, SIDE COVER
