РЕМЕНЬ ПРИВОДА ГРМ Каталог оригинальных запчастей для лодочных моторов Suzuki Marine DF9.9AR (2010)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Suzuki Marine
2010
DF9.9AR
РЕМЕНЬ ПРИВОДА ГРМ
РЕМЕНЬ ПРИВОДА ГРМ

РЕМЕНЬ ПРИВОДА ГРМ

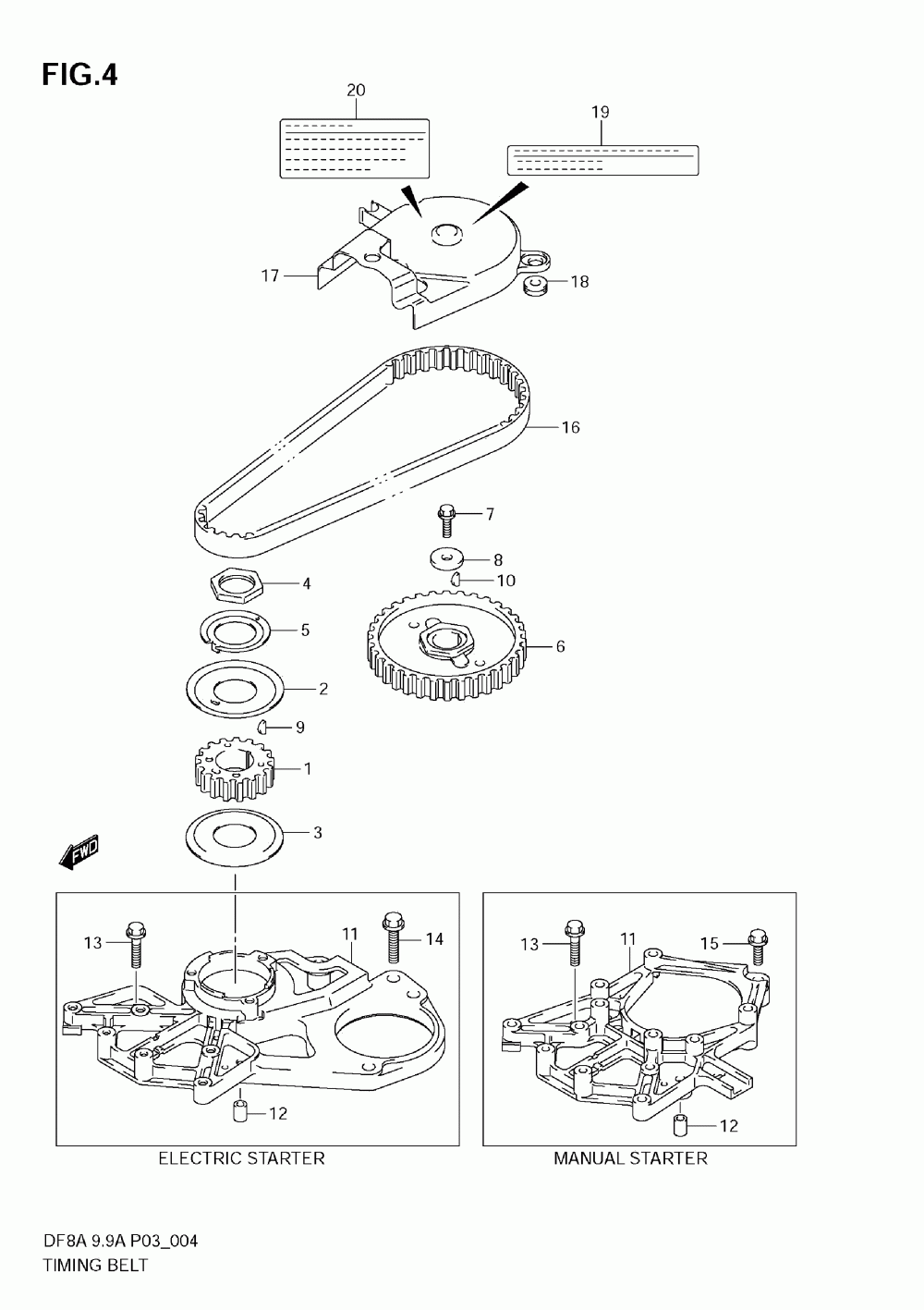

Suzuki Marine DF9.9AR

РЕМЕНЬ ПРИВОДА ГРМ

#

oem код

название

цена

1

PULLEY, CRANKSHAFT

PULLEY, CRANKSHAFT

2

GUIDE, TIMING BELT (UPPER)

GUIDE, TIMING BELT (UPPER)

3

GUIDE, TIMING BELT (LOWER)

GUIDE, TIMING BELT (LOWER)

4

NUT, TIMING PULLEY (M24)

NUT, TIMING PULLEY (M24)

5

WASHER, PULLEY NUT LOCK

WASHER, PULLEY NUT LOCK

6

PULLEY, CAMSHAFT

PULLEY, CAMSHAFT

7

BOLT, CAMSHAFT PULLEY (6X18)

BOLT, CAMSHAFT PULLEY (6X18)

8

WASHER, CAMSHAFT PULLEY (6.5X24X4)

WASHER, CAMSHAFT PULLEY (6.5X24X4)

9

KEY, CRANKSHAFT PULLEY

KEY, CRANKSHAFT PULLEY

11

Основание

Основание

11

Основание

Основание

12

DOWEL PIN, STATOR BASE

DOWEL PIN, STATOR BASE

13

BOLT, STATOR BASE NO.1

BOLT, STATOR BASE NO.1

14

BOLT, STATOR BASE NO.3

BOLT, STATOR BASE NO.3

15

BOLT, CLAMP

BOLT, CLAMP

16

BELT, TIMING

BELT, TIMING

17

COVER, TIMING BELT

COVER, TIMING BELT

18

GROMMET, TIMING BELT COVER

GROMMET, TIMING BELT COVER

19

LABEL, CLEARANCE

LABEL, CLEARANCE

20

LABEL, OIL

LABEL, OIL
