Suzuki Marine DF100

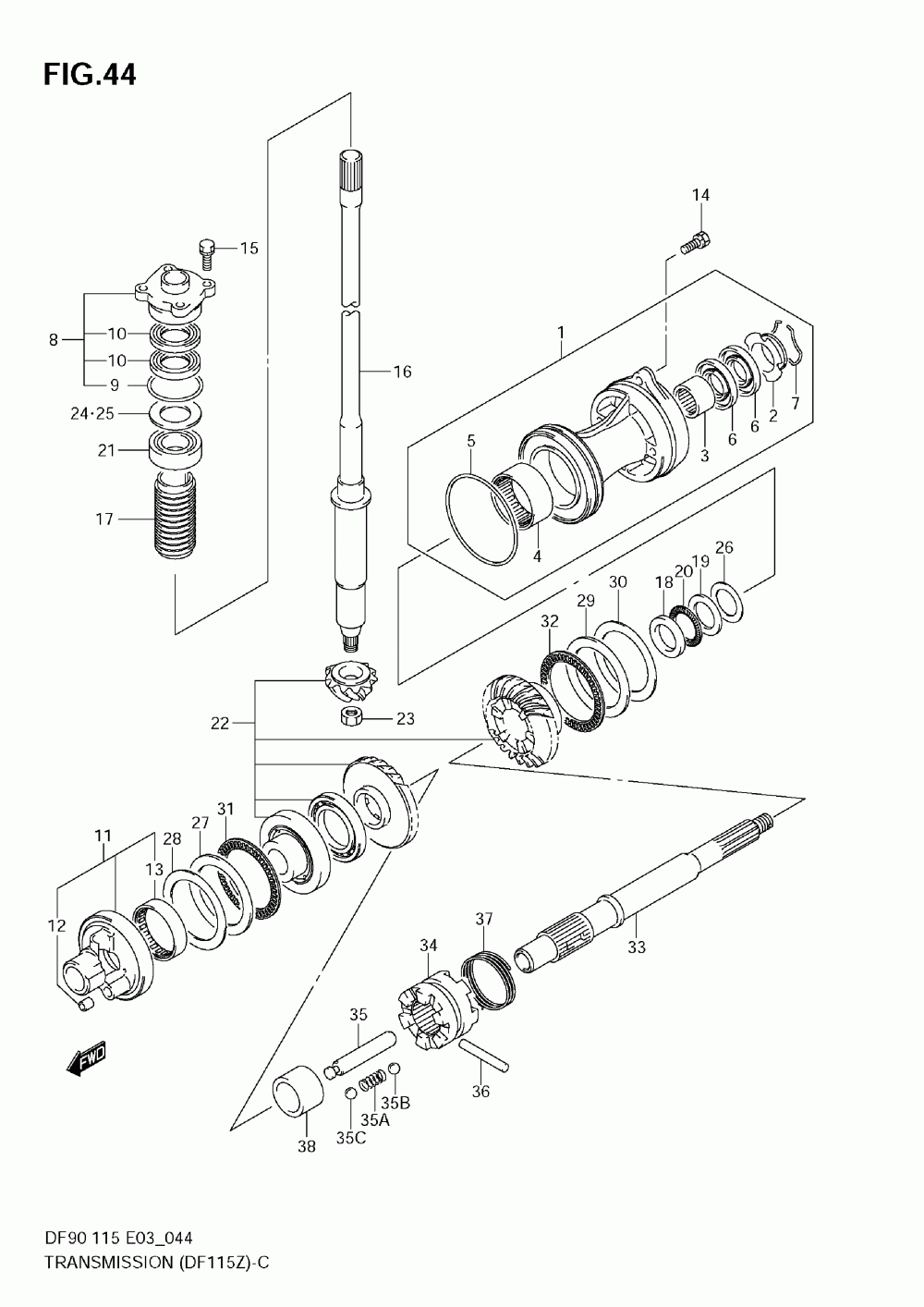

Transmission (df115z)

#

oem код

название

цена

1

56120-92J12-0EP

HOUSING, BEARING (BLACK)

HOUSING, BEARING (BLACK)

8

HOUSING, DRIVE SHAFT BEARING

HOUSING, DRIVE SHAFT BEARING

11

HOUSING, REV GEAR BEARING

HOUSING, REV GEAR BEARING

14

Болт (8x30)

Болт (8x30)

15

BOLT (8X25)

BOLT (8X25)

16

SHAFT, DRIVE (X)

SHAFT, DRIVE (X)

17

COLLAR, DRIVE SHAFT

COLLAR, DRIVE SHAFT

18

WASHER (30X47X6.0)

WASHER (30X47X6.0)

19

WASHER (32X47X3.0)

WASHER (32X47X3.0)

20

BEARING (30X47X2.0)

BEARING (30X47X2.0)

21

BEARING (25X49.3X19.25)

BEARING (25X49.3X19.25)

22

PINION-GEAR SET

PINION-GEAR SET

23

Гайка

Гайка

24

SHIM SET, DRIVE SHAFT

SHIM SET, DRIVE SHAFT

26

WASHER (35X46X0.70)

WASHER (35X46X0.70)

26

WASHER (35X46X1.00)

WASHER (35X46X1.00)

26

WASHER (35X46X0.60)

WASHER (35X46X0.60)

26

WASHER (35X46X0.95)

WASHER (35X46X0.95)

26

WASHER (35X46X1.15)

WASHER (35X46X1.15)

26

WASHER (35X46X0.90)

WASHER (35X46X0.90)

26

WASHER (35X46X1.10)

WASHER (35X46X1.10)

26

WASHER (35X46X0.80)

WASHER (35X46X0.80)

26

WASHER (35X46X1.05)

WASHER (35X46X1.05)

27

WASHER (60X85X3.0)

WASHER (60X85X3.0)

28

WASHER (60X85X1.1)

WASHER (60X85X1.1)

28

WASHER (60X85X1.0)

WASHER (60X85X1.0)

28

WASHER (60X85X1.4)

WASHER (60X85X1.4)

28

WASHER (60X85X0.9)

WASHER (60X85X0.9)

28

WASHER (60X85X1.3)

WASHER (60X85X1.3)

28

WASHER (60X85X0.8)

WASHER (60X85X0.8)

28

WASHER (60X85X1.2)

WASHER (60X85X1.2)

29

WASHER (70X95X2.0)

WASHER (70X95X2.0)

30

SHIM (70X95X0.75)

SHIM (70X95X0.75)

30

SHIM (70X95X0.95)

SHIM (70X95X0.95)

30

SHIM (70X95X0.7)

SHIM (70X95X0.7)

30

SHIM (70X95X0.9)

SHIM (70X95X0.9)

30

SHIM (70X95X0.65)

SHIM (70X95X0.65)

30

SHIM (70X95X0.85)

SHIM (70X95X0.85)

30

SHIM (70X95X0.6)

SHIM (70X95X0.6)

30

SHIM (70X95X0.8)

SHIM (70X95X0.8)

30

SHIM (70X95X1.0)

SHIM (70X95X1.0)

31

BEARING (60X85X3.0)

BEARING (60X85X3.0)

32

BEARING (70X95X4.0)

BEARING (70X95X4.0)

33

SHAFT ASSY, PROPELLER

SHAFT ASSY, PROPELLER

34

SHIFTER, CLUTCH DOG

SHIFTER, CLUTCH DOG

35

Шарик

Шарик

35

SPRING, DETENT

SPRING, DETENT

35

Толкатель

Толкатель

35

BALL, DETENT NO.2

BALL, DETENT NO.2

36

Штифт

Штифт

37

Пружина

Пружина

38

SPACER, CLUTCH DOG FORWARD

SPACER, CLUTCH DOG FORWARD
