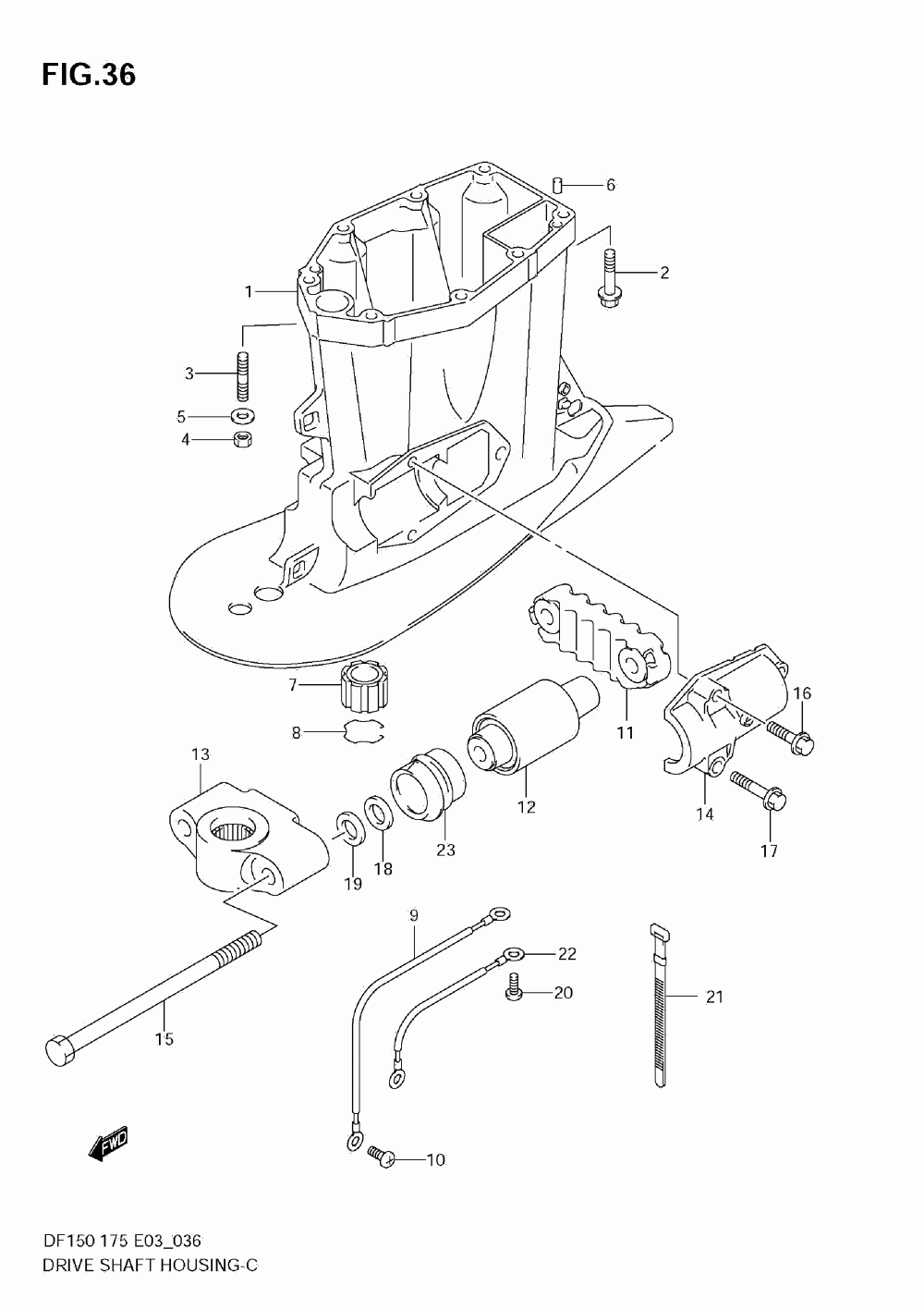

КОРПУС ПРИВОДНОГО ВАЛА

Suzuki Marine DF150
Suzuki Marine
#oem кодцена
1
52111-96J10-0EP
HOUSING, DRIVE SHAFT (X)
1
52111-96J00-0EP
HOUSING, DRIVE SHAFT (L)
2
09116-10139
BOLT, DRIVE SHAFT HSG (10X44)
3
09108-10150
BOLT, DRIVE SHAFT HSG STUD
4
29141-93J20
NUT, DRIVE SFT HSG STUD (M10)
5
09160-10141
WASHER, DRIVE SHAFT HSG STUD (10.5X19X2)
6
09202-08006
PIN, DRIVE SHAFT HOUSING
7
57130-87D10
BUSH, DRIVE SHAFT
7
57130-87D01
BUSH, DRIVE SHAFT
8
09387-38002
RING, DRIVE SHAFT BUSH SNAP
9
36895-87D10
LEAD (SWIVEL TO HSG)
10
09125-06063
SCREW, SWIVEL TO HSG LEAD
11
54151-96J01
MOUNT, LOWER THRUST
12
54160-96J01
MOUNT, LOWER
13
54211-96J01
BRACKET, LOWER MOUNT (L)
14
54221-96J00-0EP
COVER, LOWER MOUNT (BLACK)
15
09100-14004
BOLT, LOWER MOUNT (14X220)
16
09116-10131
BOLT, LWR MOUNT COVER (10X35)
17
09116-10136
BOLT, LWR MOUNT COVER (10X50)
18
09160-16050
WASHER, LOWER MOUNT (16X32X3)
21
09407-10404
CLAMP, SPEEDOMETER HOSE (L:96)
22
36894-87D00
LEAD (SWIVEL TO MOUNT BRKT)
23
54167-96J00
MOUNT, LOWER SIDE
