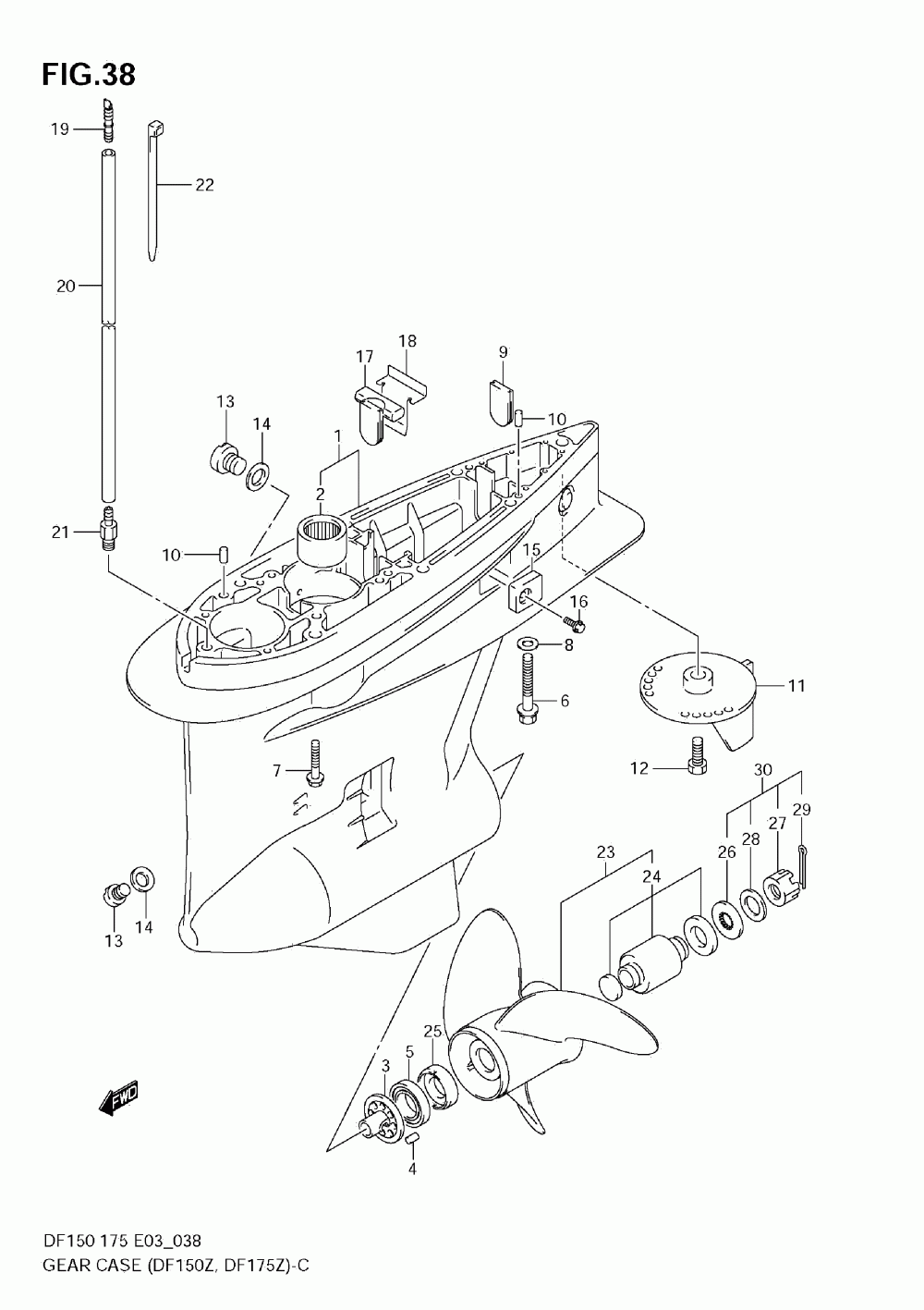

Редуктор

Suzuki Marine DF150
Suzuki Marine
#oem кодцена
1
55110-93J30-0EP
CASE, GEAR (BLACK)
6
09100-12052
BOLT, GEAR CASE (12X70)
7
09116-10150
BOLT, GEAR CASE (10X55)
8
09160-12066
WASHER, GR CASE (12.5X22X2.5)
9
17566-87D11
GROMMET, GEAR CASE
10
09202-08006
PIN, GEAR CASE
11
55125-98J00-0EP
TAB, TRIM (BLACK)
12
09116-08137
BOLT, TRIM TAB (8X22)
13
55128-93J00
Пробка, Дренажный
14
09168-10034
GASKET, DRAIN PLUG (9.5X16.5X2)
15
55320-95311
ZINC, PROTECTION
16
09116-06094
BOLT, (6X15)
17
55332-87D11
RUBBER, EXHAUST SEAL
18
55333-87D10
PLATE, EXHAUST SEAL
19
55127-87D00
UNION, SPEEDOMETER HOSE
20
09355-40805-00B
HOSE (4X8X2000)
21
09362-09008
NIPPLE, SPEEDOMETER
22
09407-10404
CLAMP, SPEEDOMETER HOSE (L:96)
23
58200-93JB0
PROPELLER (3X16X20)
23
58200-93JF0
PROPELLER (3X16X24.5)
23
58200-93JA0
PROPELLER (3X16X18.5)
23
58200-93JE0
PROPELLER (3X16X17)
23
58200-93JD0
PROPELLER (3X16X23)
23
58200-93JC0
PROPELLER (3X16X21.5)
25
57632-93J11
STOPPER, PROPELLER BUSH
26
57633-87D30
SPACER, PROPELLER NUT
27
09141-18005
NUT, PROPELLER (M18)
28
09160-18028
WASHER, PROP NUT (18.5X31X1)
29
09204-03003
PIN, PROPELLER NUT COTTER
30
57630-92E00
KIT, PROPELLER NUT
31
25700-93J00
KIT, GEAR CASE SEALING
