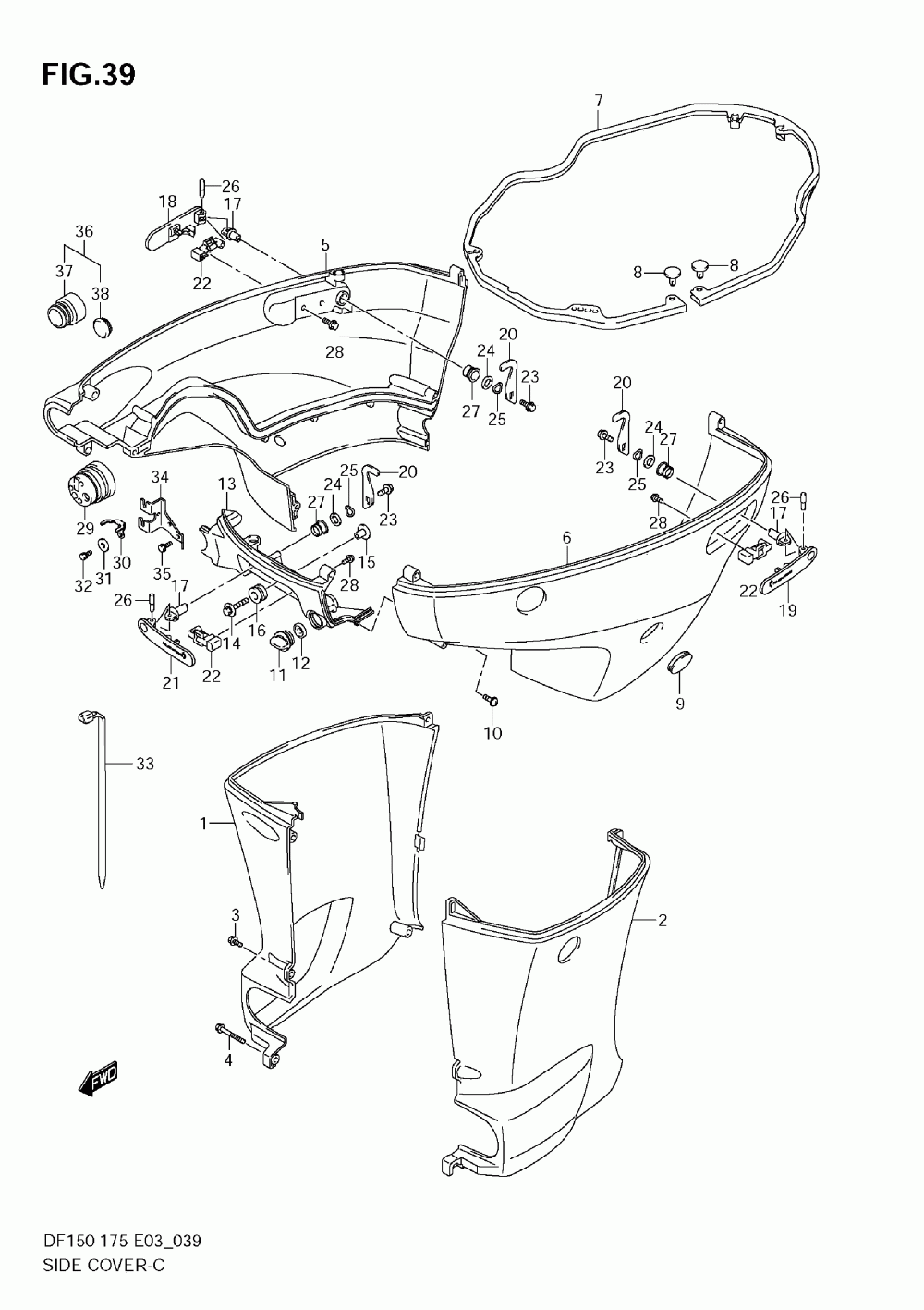

БОКОВАЯ КРЫШКА

Suzuki Marine DF150
Suzuki Marine
#oem кодцена
1
61131-96J01-0EP
COVER, OIL PAN STBD (L) (BLACK)
1
61131-96J11-0EP
COVER, OIL PAN STBD (X) (BLACK)
2
61141-96J11-0EP
COVER, OIL PAN PORT (X) (BLACK)
2
61141-96J01-0EP
COVER, OIL PAN PORT (L) (BLACK)
3
09139-06135
BOLT, OIL PAN COVER (6X17)
4
09139-06147
BOLT, OIL PAN COVER
5
61811-96J01-0EP
COVER, SIDE STBD (BLACK)
6
61821-96J01-0EP
COVER, SIDE PORT (BLACK)
7
61134-96J00
SEAL, SIDE COVER
8
09409-05302-5PK
PIN, SIDE COVER SEAL (BLACK)
9
61817-89J00
PLUG, SIDE COVER
10
09136-06148
SCREW, SIDE COVER (6X35)
11
17913-93J00
PLUG, WATER
12
17914-93J00
GASKET, WATER PLUG
13
61831-96J01-0EP
PANEL, FRONT (BLACK)
14
09118-08127
BOLT, FRONT PANEL (8X40)
15
09169-08039
WASHER, FR PANEL (8.5X30X1.5)
16
09320-11013
CUSHION, FR PANEL
17
61632-93J00
SHAFT, ENGINE COVER HOOK
19
61634-96J02
LEVER, HOOK RR PORT
20
61641-93J10
HOOK, ENGINE COVER
22
61673-96J01
LATCH, HOOK LEVER
23
09116-06127
BOLT, HOOK (6X12)
24
09160-13014
WASHER, RR HOOK LEVER (13.2X25X1.0)
25
09164-14008
Шайба
26
09202-04022
PIN, HOOK LEVER
27
09306-13007
BUSH, HOOK LEVER
28
01550-05107
BOLT, HOOK LEVER LATCH
29
61124-96J01
GROMMET, REMOCON CABLE
30
67343-96J00
STOPPER, REMOCON CABLE
31
09160-06047
WASHER, REMOCON CABLE STOPPER
32
01570-06127
BOLT, REMOCON CABLE STOPPER
33
09407-25402
BAND, REMOCON CABLE GROMMET
34
67341-96J00
HOLDER, REMOCON CABLE
35
01550-06167
BOLT, REMOCON CABLE HOLDER
36
67300-93J00
KIT, HOSE ADAPTER
