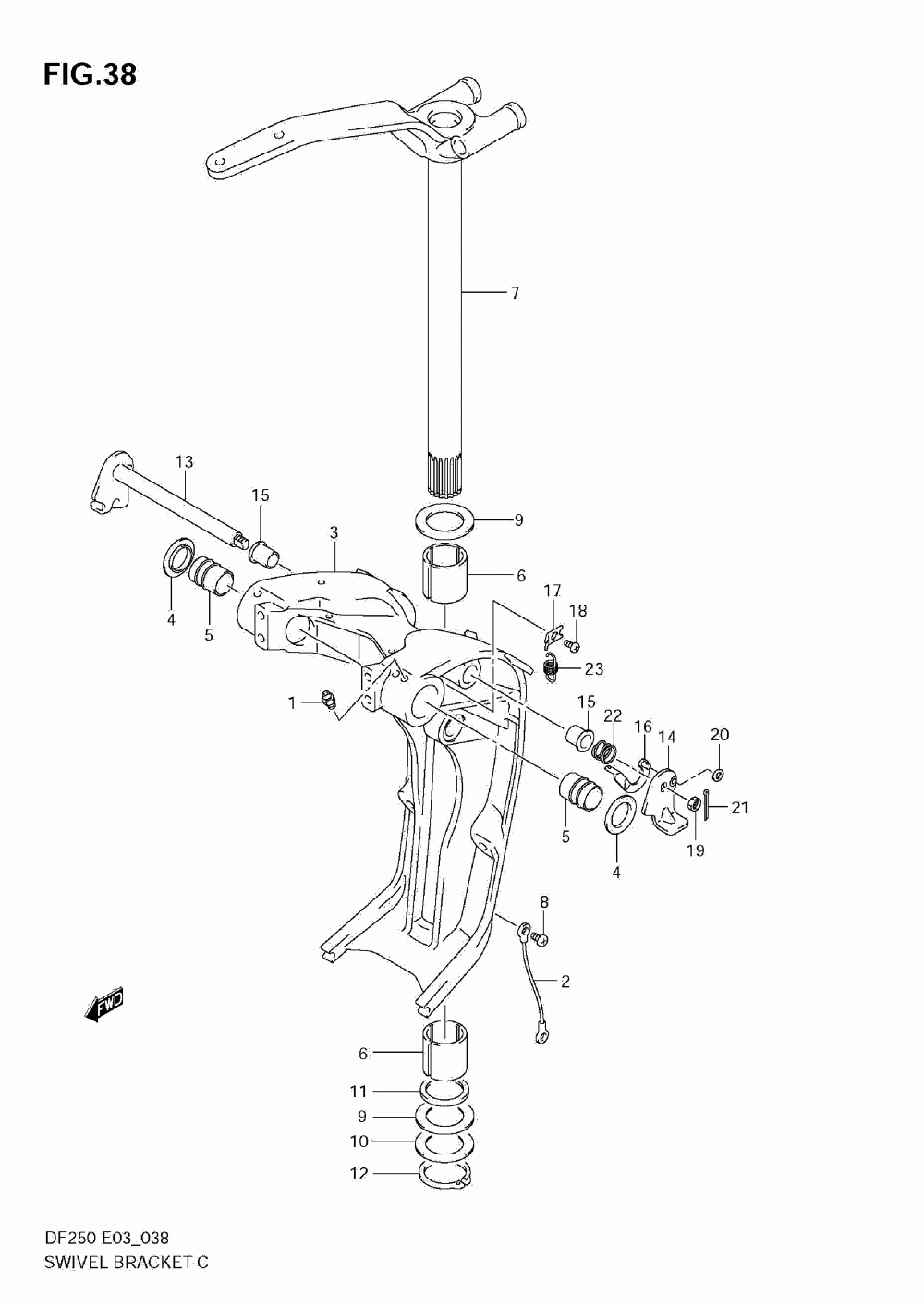

ПОВОРОТНЫЙ КРОНШТЕЙН

Suzuki Marine DF200
Suzuki Marine
#oem кодцена
1
22511-99011
NIPPLE, GREASE SWIVEL BRKT
2
36894-87D00
LEAD (SWIVEL TO MOUNT BRKT)
3
43111-93J00-0EP
BRACKET, SWIVEL (BLACK)
3
43111-93J22-0EP
BRACKET, SWIVEL (BLACK)
3
43111-93J10-0EP
BRACKET, SWIVEL (BLACK)
4
43114-93J00
WASHER, SWIVEL TO CLAMP BRKT
5
43211-87D00
BUSH, CLAMP SHAFT SWIVEL
5
43211-93J00
BUSH, CLAMP SHAFT SWIVEL
6
43711-97E00
BUSH, STEERING
7
43750-93J02-0EP
BRACKET, STEERING (BLACK)
8
09125-06063
SCREW, MT BRKT TO SWIVEL LEAD (6X10)
9
09160-39001
WASHER, SWIVEL BRACKET (39.5X64X1.0)
10
09181-39001
SHIM, SWIVEL BRACKET (39.5X64X0.3)
11
09282-39001
SEAL, PILOT SHAFT OIL
12
09380-38003
CIRCLIP, PILOT SHAFT LOWER
13
41220-93J11
LEVER, TILT LOCK
14
41234-93J11
LEVER, TILT LOCK PORT
14
41234-93J00
LEVER, TILT LOCK PORT
15
41224-95E01
BUSH, TILT STOPPER ROD
16
41230-96J00
LINK, TILT LOCK LEVER
16
41230-95E00
LINK, TILT LOCK LEVER
17
41233-95E10
BRACKET, TILT LOCK SPRING
19
09140-10032
NUT, TILT LOCK LEVER PORT
20
09160-06082
WASHER, TILT LOCK LEVER LINK (6.5X13X1.0)
21
09204-01006
PIN, TILT LK LEVER LINK COTTER
22
09440-19028
SPRING, TILT LOCK SHAFT
23
09443-10043
SPRING, TILT LOCK
