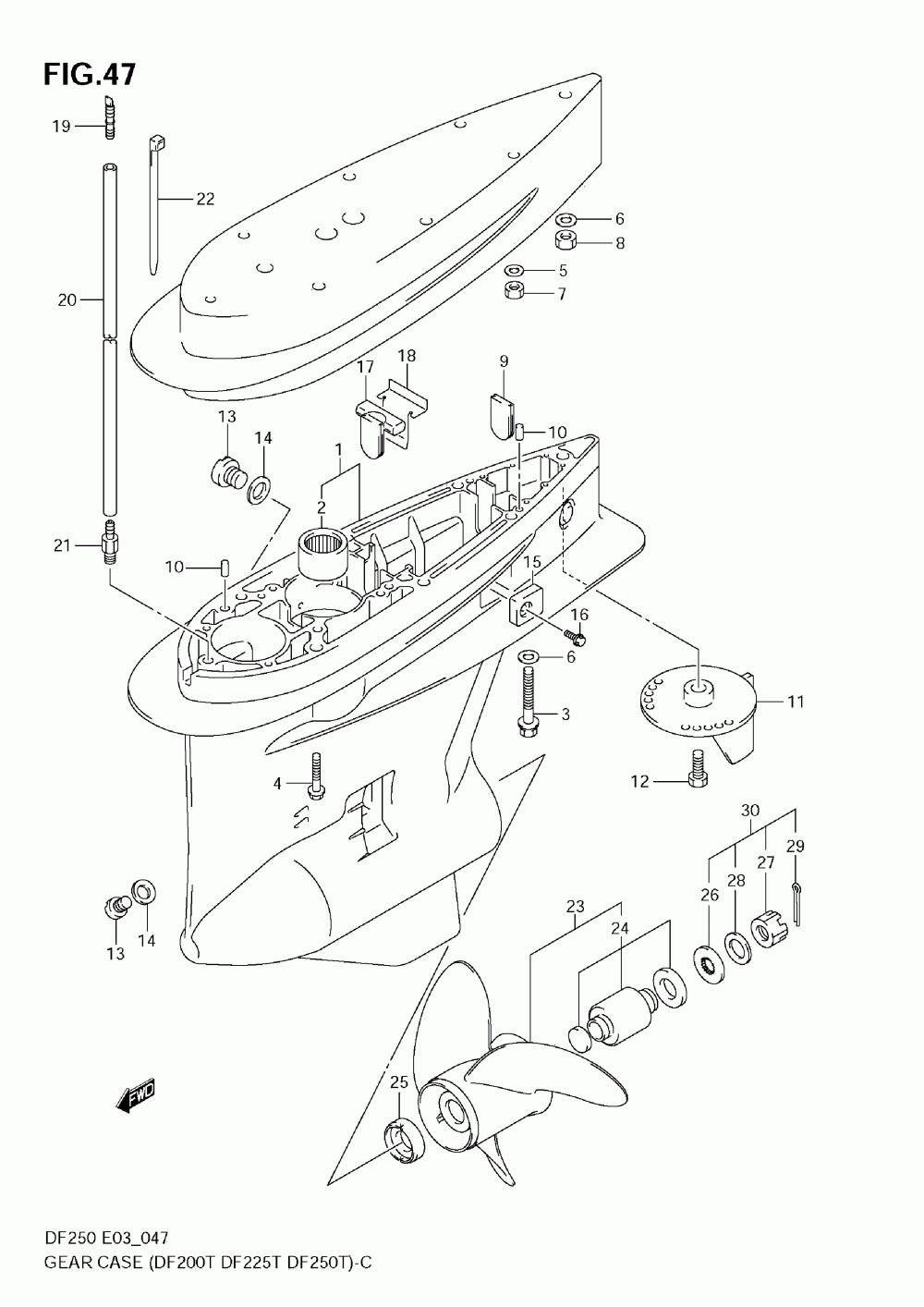

Картер (Gear Case) (DF200T, DF225T, 250T)

Suzuki Marine DF250
Suzuki Marine
#oem кодцена
1
55110-93J20-0EP
CASE, GEAR (BLACK)
1
55110-93J00-0EP
CASE, GEAR (BLACK)
3
09100-12052
BOLT (12X70)
4
09116-10150
BOLT (10X55)
5
09160-10141
WASHER (10.5X19X2)
6
09160-12066
WASHER (12.5X22X2.5)
7
29141-93J20
NUT, EXTENSION BOLT NO.1 (10X14)
8
09159-12014
NUT, EXTENSION BOLT NO.2 (12X17)
9
17566-87D11
GROMMET, GEAR CASE
10
09202-08006
PIN, GEAR CASE KNOCK
11
55125-98J00-0EP
TAB, TRIM
12
09116-08137
BOLT, TRIM TAB (8X22)
13
55128-93J00
Пробка, Дренажный
14
09168-10034
GASKET, DRAIN PLUG
15
55320-95311
ZINC, PROTECTION
16
09116-06094
BOLT, ZINC PROTECTION
17
55332-87D11
RUBBER, EXHAUST SEAL
18
55333-87D10
PLATE, EXHAUST SEAL
19
55127-87D00
UNION, SPEEDOMETER HOSE
20
09355-40805-00B
HOSE, SPEEDOMETER
21
09362-09008
NIPPLE, SPEEDOMETER
22
09407-14407
CLAMP, SPEEDOMETER HOSE
23
58200-93J00
PROPELLER (3X16X17)
23
58200-93J40
PROPELLER (3X16X23)
23
58200-93J30
PROPELLER (3X16X21.5)
23
58200-93J20
PROPELLER (3X16X20)
23
58200-93J10
PROPELLER (3X16X18.5)
23
58200-93J50
PROPELLER (3X16X24.5)
25
57632-93J11
STOPPER, PROPELLER BUSH
25
57632-93J00
STOPPER, PROPELLER BUSH
26
57633-87D30
SPACER, PROPELLER NUT
27
09141-18005
Гайка
28
09160-18028
Шайба
29
09204-03003
Шплинт
30
57630-92E00
KIT, PROPELLER NUT
31
25700-93J00
KIT, GEAR CASE SEALING
