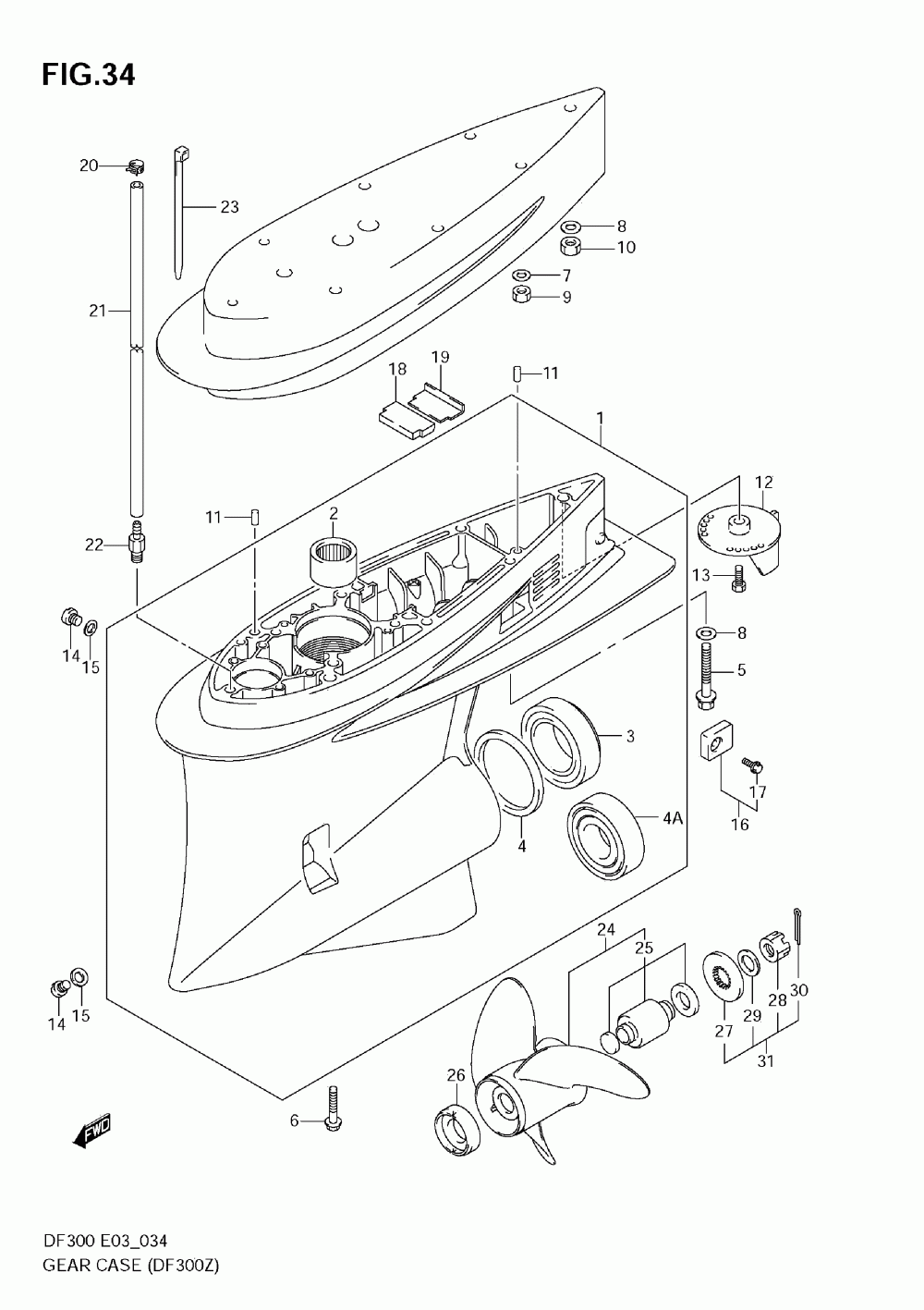

Картер (DF300Z)

Suzuki Marine DF300
Suzuki Marine
#oem кодцена
1
55110-98J21-0EP
CASE, GEAR (BLACK)
5
09100-12052
BOLT (12X70)
6
09116-10150
BOLT (10X55)
7
09160-10141
WASHER (10.5X19X2)
8
09160-12066
WASHER (12.5X22X2.5)
9
29141-93J20
NUT, EXTENSION BOLT NO.1 (10X14)
10
09159-12014
NUT, EXTENSION BOLT NO.2 (12X17)
11
09202-08006
PIN, GEAR CASE KNOCK
12
55125-98J00-0EP
TAB, TRIM
13
09116-08137
BOLT, TRIM TAB (8X22)
14
55128-93J00
Пробка, Дренажный
15
09168-10034
GASKET, DRAIN PLUG
16
55320-95311
ZINC, PROTECTION
17
09116-06094
BOLT, ZINC PROTECTION
18
55332-98J00
RUBBER, EXHAUST SEAL
19
55333-98J00
PLATE, EXHAUST SEAL
20
09401-08412
CLIP, SPEEDOMETER HOSE
21
09355-40805-00B
HOSE, SPEEDOMETER
22
09362-09008
NIPPLE, SPEEDOMETER
23
09407-10404
CLAMP, SPEEDOMETER HOSE
24
58200-93JA0
PROPELLER (3X16X18.5)
24
58200-93JE0
PROPELLER (3X16X17)
24
58200-93JD0
PROPELLER (3X16X23)
24
58200-93JC0
PROPELLER (3X16X21.5)
24
58200-93JB0
PROPELLER (3X16X20)
24
58200-93JF0
PROPELLER (3X16X24.5)
26
57632-93J11
STOPPER, PROPELLER BUSH
27
57633-87D30
SPACER, PROPELLER NUT
28
09141-18005
Гайка
29
09160-18028
Шайба
30
09204-03003
Шплинт
31
57630-92E00
KIT, PROPELLER NUT
32
25700-98J00
KIT, GEAR CASE SEALING
