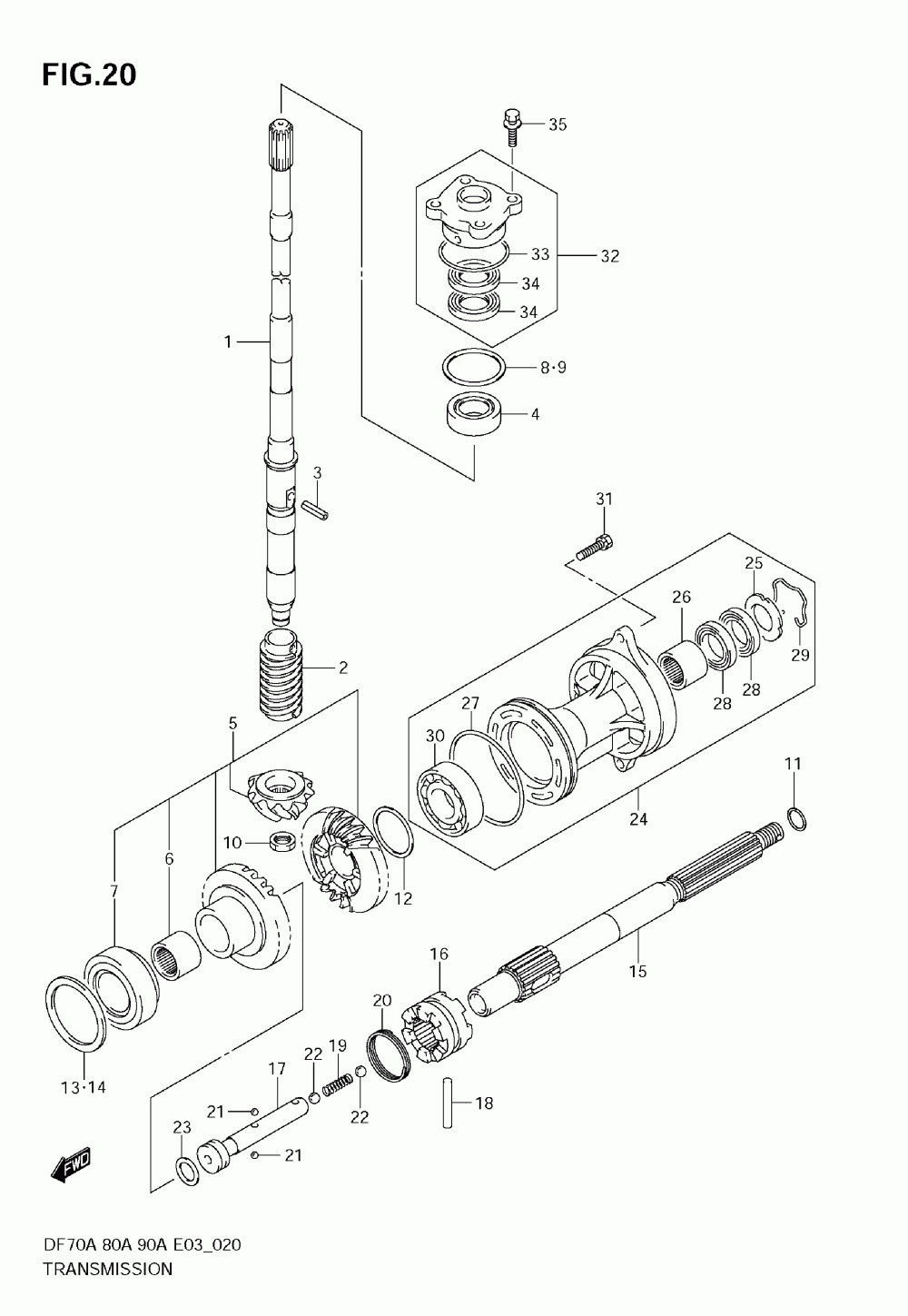

Suzuki Marine DF80A

ТРАНСМИССИЯ

#

oem код

название

цена

1

SHAFT ASSY, DRIVE (X)

SHAFT ASSY, DRIVE (X)

1

SHAFT ASSY, DRIVE (L)

SHAFT ASSY, DRIVE (L)

2

COLLAR, DRIVE SHAFT

COLLAR, DRIVE SHAFT

3

Штифт

Штифт

4

Подшипник

Подшипник

5

PINION-GEAR SET

PINION-GEAR SET

6

BEARING, PROP SHAFT FWD (25X32X26)

BEARING, PROP SHAFT FWD (25X32X26)

7

BEARING, FWD GEAR (40X75X26)

BEARING, FWD GEAR (40X75X26)

8

SHIM SET, DRIVE SHAFT

SHIM SET, DRIVE SHAFT

9

SHIM (40X52X0.50)

SHIM (40X52X0.50)

9

SHIM (41X52X0.90)

SHIM (41X52X0.90)

9

SHIM (41X52X0.95)

SHIM (41X52X0.95)

9

SHIM (41X52X1.05)

SHIM (41X52X1.05)

9

SHIM (41X52X1.15)

SHIM (41X52X1.15)

9

SHIM (41X52X0.55)

SHIM (41X52X0.55)

9

SHIM (40X52X0.80)

SHIM (40X52X0.80)

9

SHIM (41X52X0.65)

SHIM (41X52X0.65)

9

SHIM (41X52X0.85)

SHIM (41X52X0.85)

9

SHIM (41X52X1.10)

SHIM (41X52X1.10)

9

SHIM (41X52X0.75)

SHIM (41X52X0.75)

9

SHIM (41X52X0.70)

SHIM (41X52X0.70)

9

SHIM (41X52X0.60)

SHIM (41X52X0.60)

9

SHIM (40X52X1.00)

SHIM (40X52X1.00)

10

Гайка

Гайка

11

WASHER (25X32X1.3)

WASHER (25X32X1.3)

11

WASHER (25X32X1.5)

WASHER (25X32X1.5)

11

WASHER (25X32X1.7)

WASHER (25X32X1.7)

11

Шайба (25x32x1.0)

Шайба (25x32x1.0)

11

WASHER (25X32X1.09)

WASHER (25X32X1.09)

11

WASHER (25X32X1.6)

WASHER (25X32X1.6)

11

WASHER (25X32X0.5)

WASHER (25X32X0.5)

11

WASHER (25X32X1.4)

WASHER (25X32X1.4)

11

WASHER (25X32X1.21)

WASHER (25X32X1.21)

12

SHIM (40X46.8X0.65)

SHIM (40X46.8X0.65)

12

SHIM (40X46.8X0.70)

SHIM (40X46.8X0.70)

12

SHIM (40X46.8X1.05)

SHIM (40X46.8X1.05)

12

SHIM (40X46.8X0.95)

SHIM (40X46.8X0.95)

12

SHIM (40X46.8X0.60)

SHIM (40X46.8X0.60)

12

SHIM (40X46.8X0.55)

SHIM (40X46.8X0.55)

12

SHIM (40X46.8X0.85)

SHIM (40X46.8X0.85)

12

SHIM (40X46.8X0.75)

SHIM (40X46.8X0.75)

12

SHIM (40X46.8X0.80)

SHIM (40X46.8X0.80)

12

SHIM (40X46.8X0.90)

SHIM (40X46.8X0.90)

12

SHIM (40X46.8X1.00)

SHIM (40X46.8X1.00)

13

SHIM SET, FORWARD GEAR

SHIM SET, FORWARD GEAR

14

SHIM (64X75X0.55)

SHIM (64X75X0.55)

14

SHIM (64X75X0.60)

SHIM (64X75X0.60)

15

Вал гребного винта

Вал гребного винта

16

SHIFTER, CLUTCH DOG

SHIFTER, CLUTCH DOG

17

PIN, CONNECTOR

PIN, CONNECTOR

18

PIN, CLUTCH DOG SHIFTER

PIN, CLUTCH DOG SHIFTER

19

SPRING, DETENT

SPRING, DETENT

20

SPRING, CLUTCH DOG SHIFTER

SPRING, CLUTCH DOG SHIFTER

21

Шарик

Шарик

22

BALL, DETENT NO.2

BALL, DETENT NO.2

23

WASHER, FWD THRUST (25X32X3)

WASHER, FWD THRUST (25X32X3)

24

56120-87L00-0EP

HOUSING, PROP SHAFT BRG

HOUSING, PROP SHAFT BRG

24

56120-87L10-0EP

HOUSING, PROP SHAFT BRG

HOUSING, PROP SHAFT BRG

25

WASHER, OIL SEAL PROTECTOR

WASHER, OIL SEAL PROTECTOR

27

O RING (D:3.1, ID:89.4)

O RING (D:3.1, ID:89.4)

28

Сальник

Сальник

29

Прокладка

Прокладка

30

Подшипник

Подшипник

31

Болт (8x30)

Болт (8x30)

32

HOUSING, DRIVE SHAFT OIL SEAL

HOUSING, DRIVE SHAFT OIL SEAL

33

O RING (D:3.5, ID:45.7)

O RING (D:3.5, ID:45.7)

34

Сальник

Сальник

35

BOLT (8X25)

BOLT (8X25)
