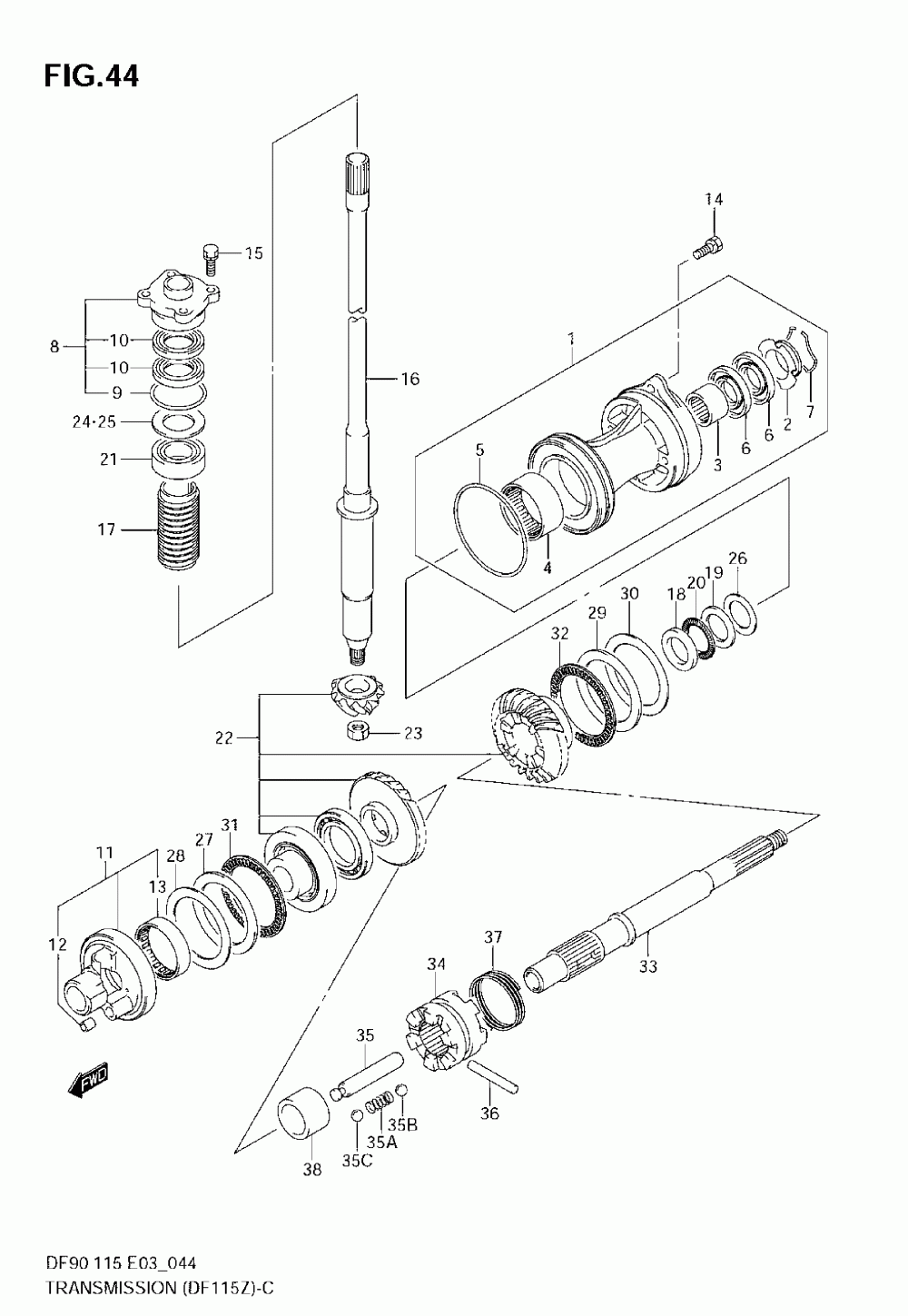

Transmission (df115z) Каталог оригинальных запчастей для лодочных моторов Suzuki Marine DF100 (2009)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Suzuki Marine
2009
DF100
Transmission (df115z)
Transmission (df115z)

Transmission (df115z)

Suzuki Marine DF100

Transmission (df115z)

#

oem код

название

цена

1

56120-92J12-0EP

HOUSING, BEARING (BLACK)

HOUSING, BEARING (BLACK)

2

WASHER, OIL SEAL PROTECTOR

WASHER, OIL SEAL PROTECTOR

3

BEARING (30X37X26)

BEARING (30X37X26)

4

BEARING (50X62X25)

BEARING (50X62X25)

5

O RING (D:3.5, ID:95.0)

O RING (D:3.5, ID:95.0)

6

SEAL OIL

SEAL OIL

7

RING, OIL SEAL

RING, OIL SEAL

8

HOUSING, DRIVE SHAFT BEARING

HOUSING, DRIVE SHAFT BEARING

9

O RING (D:3.5, ID:45.7)

O RING (D:3.5, ID:45.7)

10

Сальник

Сальник

11

HOUSING, REV GEAR BEARING

HOUSING, REV GEAR BEARING

12

PIN, KNOCK

PIN, KNOCK

13

BEARING (45X52X16)

BEARING (45X52X16)

14

Болт (8x30)

Болт (8x30)

15

BOLT (8X25)

BOLT (8X25)

16

SHAFT, DRIVE (X)

SHAFT, DRIVE (X)

16

SHAFT, DRIVE (X)

SHAFT, DRIVE (X)

17

COLLAR, DRIVE SHAFT

COLLAR, DRIVE SHAFT

18

WASHER (30X47X6.0)

WASHER (30X47X6.0)

19

WASHER (32X47X3.0)

WASHER (32X47X3.0)

20

BEARING (30X47X2.0)

BEARING (30X47X2.0)

21

BEARING (25X49.3X19.25)

BEARING (25X49.3X19.25)

22

PINION/GEAR SET

PINION/GEAR SET

23

Гайка

Гайка

24

SHIM SET, DRIVE SHAFT

SHIM SET, DRIVE SHAFT

25

SHIM (41X52X0.95)

SHIM (41X52X0.95)

25

SHIM (41X52X1.05)

SHIM (41X52X1.05)

25

SHIM (41X52X0.80)

SHIM (41X52X0.80)

25

SHIM (41X52X1.15)

SHIM (41X52X1.15)

25

SHIM (41X52X0.60)

SHIM (41X52X0.60)

25

SHIM (41X52X1.00)

SHIM (41X52X1.00)

25

SHIM (41X52X0.90)

SHIM (41X52X0.90)

25

SHIM (41X52X0.55)

SHIM (41X52X0.55)

25

SHIM (41X52X0.65)

SHIM (41X52X0.65)

25

SHIM (41X52X0.85)

SHIM (41X52X0.85)

25

SHIM (41X52X0.50)

SHIM (41X52X0.50)

25

SHIM (41X52X0.75)

SHIM (41X52X0.75)

25

SHIM (41X52X0.70)

SHIM (41X52X0.70)

25

SHIM (41X52X1.10)

SHIM (41X52X1.10)

26

WASHER (35X46X0.90)

WASHER (35X46X0.90)

26

WASHER (35X46X0.70)

WASHER (35X46X0.70)

26

WASHER (35X46X0.60)

WASHER (35X46X0.60)

26

WASHER (35X46X1.15)

WASHER (35X46X1.15)

26

WASHER (35X46X1.00)

WASHER (35X46X1.00)

26

WASHER (35X46X1.10)

WASHER (35X46X1.10)

26

WASHER (35X46X0.80)

WASHER (35X46X0.80)

26

WASHER (35X46X1.05)

WASHER (35X46X1.05)

26

WASHER (35X46X0.95)

WASHER (35X46X0.95)

27

WASHER (60X85X3.0)

WASHER (60X85X3.0)

28

WASHER (60X85X0.9)

WASHER (60X85X0.9)

28

WASHER (60X85X0.8)

WASHER (60X85X0.8)

28

WASHER (60X85X1.3)

WASHER (60X85X1.3)

28

WASHER (60X85X1.0)

WASHER (60X85X1.0)

28

WASHER (60X85X1.4)

WASHER (60X85X1.4)

28

WASHER (60X85X1.2)

WASHER (60X85X1.2)

28

WASHER (60X85X1.1)

WASHER (60X85X1.1)

29

WASHER (70X95X2.0)

WASHER (70X95X2.0)

30

SHIM (70X95X0.7)

SHIM (70X95X0.7)

30

SHIM (70X95X0.95)

SHIM (70X95X0.95)

30

SHIM (70X95X0.8)

SHIM (70X95X0.8)

30

SHIM (70X95X0.6)

SHIM (70X95X0.6)

30

SHIM (70X95X1.0)

SHIM (70X95X1.0)

30

SHIM (70X95X0.9)

SHIM (70X95X0.9)

30

SHIM (70X95X0.65)

SHIM (70X95X0.65)

30

SHIM (70X95X0.85)

SHIM (70X95X0.85)

30

SHIM (70X95X0.75)

SHIM (70X95X0.75)

31

BEARING (60X85X3.0)

BEARING (60X85X3.0)

32

BEARING (70X95X4.0)

BEARING (70X95X4.0)

33

SHAFT ASSY, PROPELLER

SHAFT ASSY, PROPELLER

34

SHIFTER, CLUTCH DOG

SHIFTER, CLUTCH DOG

35

BALL, DETENT NO.2

BALL, DETENT NO.2

35

SPRING, DETENT

SPRING, DETENT

35

Шарик

Шарик

35

Толкатель

Толкатель

36

Штифт

Штифт

37

Пружина

Пружина

38

SPACER, CLUTCH DOG FORWARD

SPACER, CLUTCH DOG FORWARD
