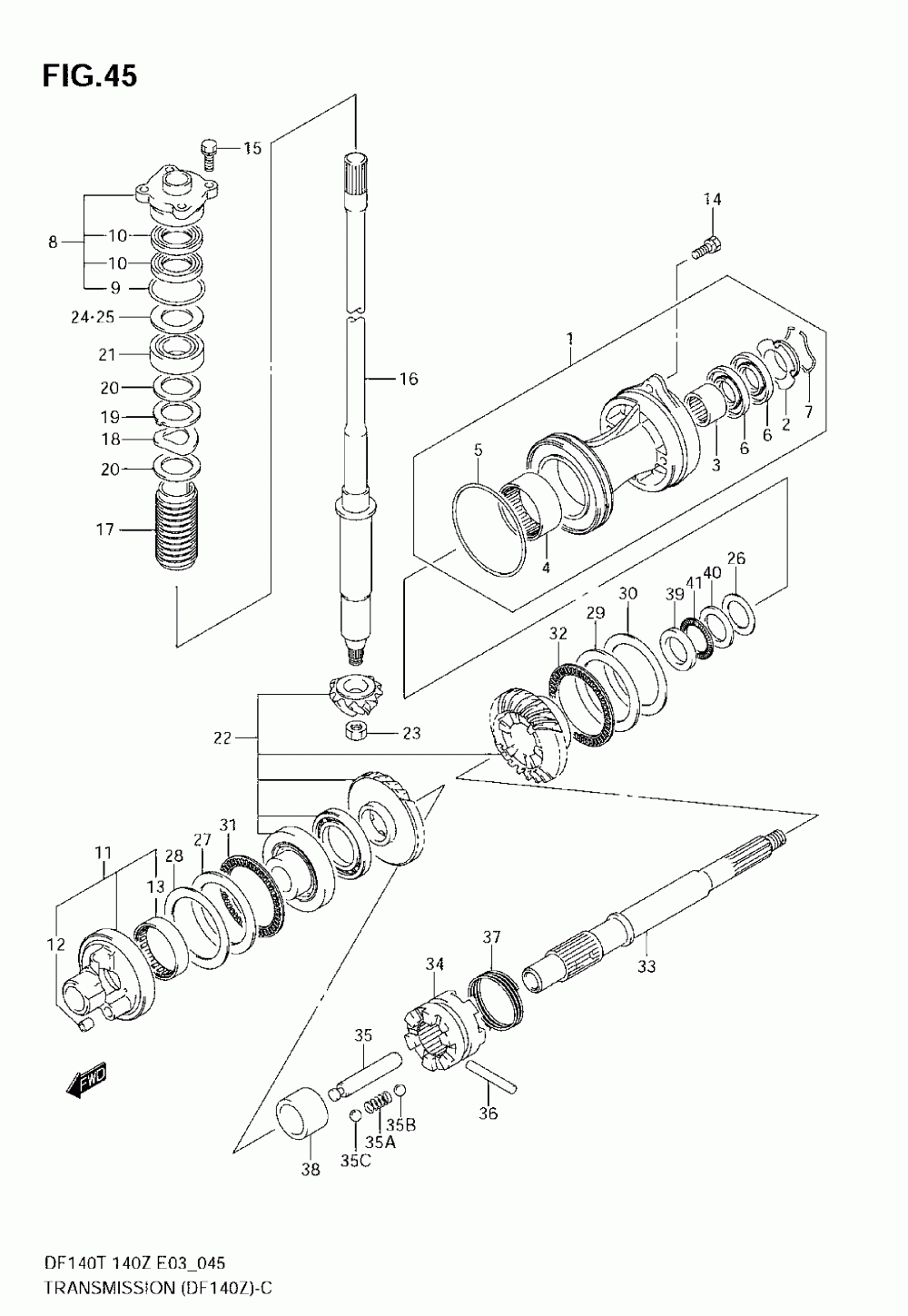

Трансмиссия (DF140Z, DF140WZ) (модели с обратным вращением)

Suzuki Marine DF140T
Suzuki Marine
#oem кодцена
1
56120-92J11-0EP
HOUSING, BEARING (BLACK)
1
56120-92J12-0EP
HOUSING, BEARING (BLACK)
2
56123-92J00
WASHER, OIL SEAL PROTECTOR
3
09263-30051
BEARING (30X37X26)
4
09263-50001
BEARING (50X62X25)
5
09280-97001
O RING (D:3.5, ID:95.0)
6
09282-30007
SEAL OIL
7
09387-52001
RING, OIL SEAL
8
56130-90J00
HOUSING, DRIVE SHAFT BEARING
9
09280-46004
O RING (D:3.5, ID:45.7)
10
09282-24004
Сальник
11
56140-92J30
HOUSING, REV GEAR BEARING
11
56140-92J10
HOUSING, REV GEAR BEARING
12
09206-09012
PIN, KNOCK
13
09263-45004
BEARING (45X52X16)
14
09117-08047
Болт (8x30)
15
09117-08057
BOLT (8X25)
16
57110-90J30
SHAFT, DRIVE (X)
16
57110-92J51
SHAFT, DRIVE (X)
16
57110-92J30
SHAFT, DRIVE (X)
16
57110-92J50
SHAFT, DRIVE (X)
17
57133-90J01
COLLAR, DRIVE SHAFT
18
09164-31001
WASHER, WAVE (31.3X45.9X0.35)
19
09169-31001
Шайба
20
09181-31001
WASHER (31X46X2.0)
21
09265-25040
BEARING (25X49.3X19.25)
22
57300-92850
PINION-GEAR SET
22
57300-92810
PINION/GEAR SET
22
57300-92830
PINION-GEAR SET
23
09140-14024
Гайка
23
09140-14021
Гайка
24
57500-87873
SHIM SET, DRIVE SHAFT
25
09181-40186
SHIM (41X52X0.50)
25
09181-41014
SHIM (41X52X1.15)
25
09181-41010
SHIM (41X52X0.95)
25
09181-41008
SHIM (41X52X0.85)
25
09181-41013
SHIM (41X52X1.10)
25
09181-41012
SHIM (41X52X1.05)
25
09181-41004
SHIM (41X52X0.65)
25
09181-41003
SHIM (41X52X0.60)
25
09181-41002
SHIM (41X52X0.55)
25
09181-41006
SHIM (41X52X0.75)
25
09181-41005
SHIM (41X52X0.70)
25
09181-40195
SHIM (41X52X1.00)
25
09181-41009
SHIM (41X52X0.90)
25
09181-40190
SHIM (41X52X0.80)
26
09160-35003
WASHER (35X46X1.10)
26
09160-35014
WASHER (35X46X0.70)
26
09160-35015
WASHER (35X46X0.60)
26
09160-35009
WASHER (35X46X1.05)
26
09160-35008
WASHER (35X46X0.95)
26
09160-35013
WASHER (35X46X0.80)
26
09160-35002
WASHER (35X46X1.00)
26
09160-35006
WASHER (35X46X0.90)
26
09160-35010
WASHER (35X46X1.15)
27
09160-60011
WASHER (60X85X3.0)
28
09160-60009
WASHER (60X85X0.9)
28
09160-60008
WASHER (60X85X0.8)
28
09160-60007
WASHER (60X85X1.4)
28
09160-60005
WASHER (60X85X1.2)
28
09160-60003
WASHER (60X85X1.0)
28
09160-60006
WASHER (60X85X1.3)
28
09160-60004
WASHER (60X85X1.1)
29
09160-70005
WASHER (70X95X2.0)
29
09160-70004
WASHER (70X95X3.7)
30
09181-70012
SHIM (70X95X0.95)
30
09181-70011
SHIM (70X95X0.85)
30
09181-70010
SHIM (70X95X0.75)
30
09181-70003
SHIM (70X95X0.9)
30
09181-70002
SHIM (70X95X0.8)
30
09181-70004
SHIM (70X95X1.0)
30
09181-70006
SHIM (70X95X0.6)
30
09181-70001
SHIM (70X95X0.7)
30
09181-70009
SHIM (70X95X0.65)
31
09269-60001
BEARING (60X85X3.0)
32
09269-70001
BEARING (70X95X4.0)
33
57610-92J31
SHAFT ASSY, PROPELLER
33
57610-92J30
SHAFT ASSY, PROPELLER
33
57610-92J10
Вал гребного винта
34
57621-92J00
SHIFTER, CLUTCH DOG
34
57621-92J10
SHIFTER, CLUTCH DOG
35
06111-07004
Шарик
35
09440-09040
SPRING, DETENT
35
06111-11004
BALL, DETENT NO.2
35
57631-87E00
PIN, CONNECTOR
35
57631-92J00
Толкатель
36
09202-07002
Штифт
37
09440-50002
Пружина
37
09440-49004
Пружина
38
57616-92J00
SPACER, CLUTCH DOG FORWARD
39
09160-30055
WASHER (30X47X6.0)
40
09160-30056
WASHER (32X47X3.0)
41
09269-30014
BEARING (30X47X2.0)
