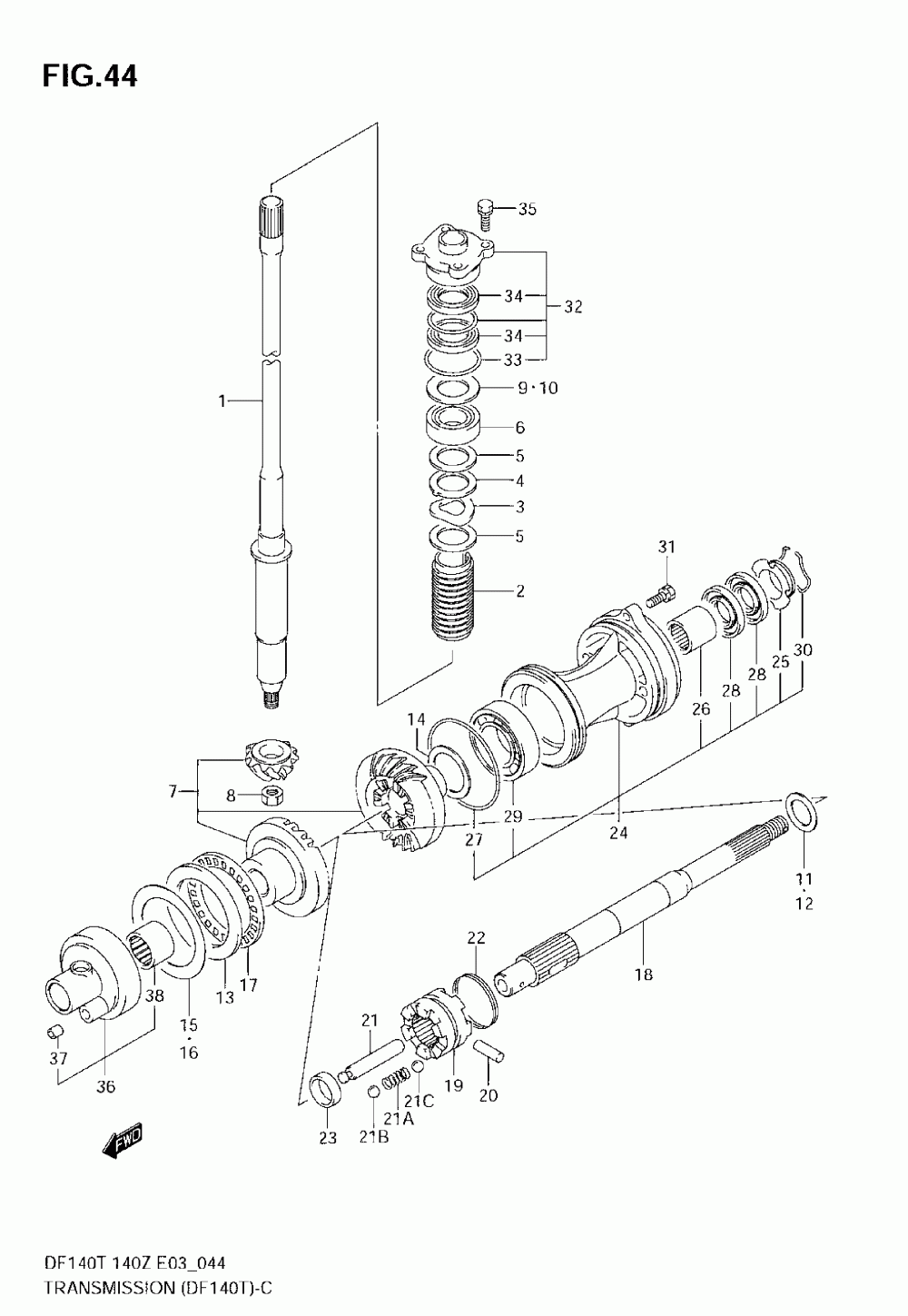

Трансмиссия (DF140T, DF140WT)
Трансмиссия (DF140T, DF140WT)

Трансмиссия (DF140T, DF140WT)

Suzuki Marine DF140T

Трансмиссия (DF140T, DF140WT)

#

oem код

название

цена

1

SHAFT ASSY, DRIVE (L)

SHAFT ASSY, DRIVE (L)

1

SHAFT ASSY, DRIVE (X)

SHAFT ASSY, DRIVE (X)

1

SHAFT ASSY, DRIVE (X)

SHAFT ASSY, DRIVE (X)

1

SHAFT ASSY, DRIVE (X)

SHAFT ASSY, DRIVE (X)

1

SHAFT ASSY, DRIVE (L)

SHAFT ASSY, DRIVE (L)

1

SHAFT ASSY, DRIVE (X)

SHAFT ASSY, DRIVE (X)

1

SHAFT ASSY, DRIVE (L)

SHAFT ASSY, DRIVE (L)

1

SHAFT ASSY, DRIVE (L)

SHAFT ASSY, DRIVE (L)

2

COLLAR, DRIVE SHAFT

COLLAR, DRIVE SHAFT

3

Шайба

Шайба

4

Шайба

Шайба

5

WASHER (31X46X2.0)

WASHER (31X46X2.0)

6

Подшипник

Подшипник

7

PINION-GEAR SET

PINION-GEAR SET

7

PINION/GEAR SET

PINION/GEAR SET

7

PINION/GEAR SET

PINION/GEAR SET

8

Гайка

Гайка

8

Гайка

Гайка

9

SHIM SET, DRIVE SHAFT

SHIM SET, DRIVE SHAFT

10

SHIM (T:1.15)

SHIM (T:1.15)

10

SHIM (T:0.75)

SHIM (T:0.75)

10

SHIM (T:0.50)

SHIM (T:0.50)

10

SHIM (T:0.90)

SHIM (T:0.90)

10

SHIM (T:1.10)

SHIM (T:1.10)

10

SHIM (T:0.65)

SHIM (T:0.65)

10

SHIM (T:1.05)

SHIM (T:1.05)

10

SHIM (T:0.95)

SHIM (T:0.95)

10

SHIM (T:0.70)

SHIM (T:0.70)

10

SHIM (T:0.60)

SHIM (T:0.60)

10

SHIM (T:0.85)

SHIM (T:0.85)

10

SHIM (T:0.55)

SHIM (T:0.55)

10

SHIM (T:1.00)

SHIM (T:1.00)

10

SHIM (T:0.80)

SHIM (T:0.80)

11

WASHER SET, REV PROP SHAFT

WASHER SET, REV PROP SHAFT

12

WASHER (T:2.7)

WASHER (T:2.7)

12

WASHER (T:2.6)

WASHER (T:2.6)

12

WASHER (T:2.3)

WASHER (T:2.3)

12

WASHER (T:1.9)

WASHER (T:1.9)

12

WASHER (T:2.4)

WASHER (T:2.4)

12

WASHER (T:1.7)

WASHER (T:1.7)

12

WASHER (T:2.8)

WASHER (T:2.8)

12

WASHER (T:1.5)

WASHER (T:1.5)

12

WASHER (T:2.1)

WASHER (T:2.1)

13

WASHER (70X95X5.25)

WASHER (70X95X5.25)

14

SHIM (T:1.2)

SHIM (T:1.2)

14

SHIM (T:1.5)

SHIM (T:1.5)

14

SHIM (T:1.1)

SHIM (T:1.1)

14

SHIM (T:1.0)

SHIM (T:1.0)

14

SHIM (T:1.3)

SHIM (T:1.3)

14

SHIM (T:1.6)

SHIM (T:1.6)

14

SHIM (T:1.4)

SHIM (T:1.4)

15

SHIM SET, FWD GEAR

SHIM SET, FWD GEAR

16

SHIM (70X95X0.85)

SHIM (70X95X0.85)

16

SHIM (70X95X1.0)

SHIM (70X95X1.0)

16

SHIM (70X95X0.9)

SHIM (70X95X0.9)

16

SHIM (70X95X0.65)

SHIM (70X95X0.65)

16

SHIM (70X95X0.7)

SHIM (70X95X0.7)

16

SHIM (70X95X0.95)

SHIM (70X95X0.95)

16

SHIM (70X95X0.75)

SHIM (70X95X0.75)

16

SHIM (70X95X0.8)

SHIM (70X95X0.8)

16

SHIM (70X95X0.6)

SHIM (70X95X0.6)

17

Подшипник

Подшипник

18

SHAFT ASSY, PROPELLER

SHAFT ASSY, PROPELLER

18

SHAFT ASSY, PROPELLER

SHAFT ASSY, PROPELLER

19

SHIFTER, CLUTCH DOG

SHIFTER, CLUTCH DOG

19

SHIFTER, CLUTCH DOG

SHIFTER, CLUTCH DOG

20

Штифт

Штифт

21

Толкатель

Толкатель

21

BALL, DETENT NO.2

BALL, DETENT NO.2

21

Шарик

Шарик

21

Толкатель

Толкатель

21

SPRING, DETENT

SPRING, DETENT

22

Пружина

Пружина

22

Пружина

Пружина

23

SPACER, CLUTCH DOG FWD

SPACER, CLUTCH DOG FWD

24

56120-92J01-0EP

HOUSING, PROP SFT BRG (BLACK)

HOUSING, PROP SFT BRG (BLACK)

25

WASHER, OIL SEAL PROTECTOR

WASHER, OIL SEAL PROTECTOR

26

Подшипник

Подшипник

27

O RING (D:3.5, ID:95)

O RING (D:3.5, ID:95)

28

Сальник

Сальник

29

Подшипник

Подшипник

30

Прокладка

Прокладка

31

Болт (8x30)

Болт (8x30)

32

Кожух

Кожух

33

O RING (D:3.5, ID:45.7)

O RING (D:3.5, ID:45.7)

34

Сальник

Сальник

35

BOLT (8X25)

BOLT (8X25)

36

HOUSING, FORWARD GEAR BEARING

HOUSING, FORWARD GEAR BEARING

37

PIN, KNOCK

PIN, KNOCK

38

Подшипник

Подшипник
