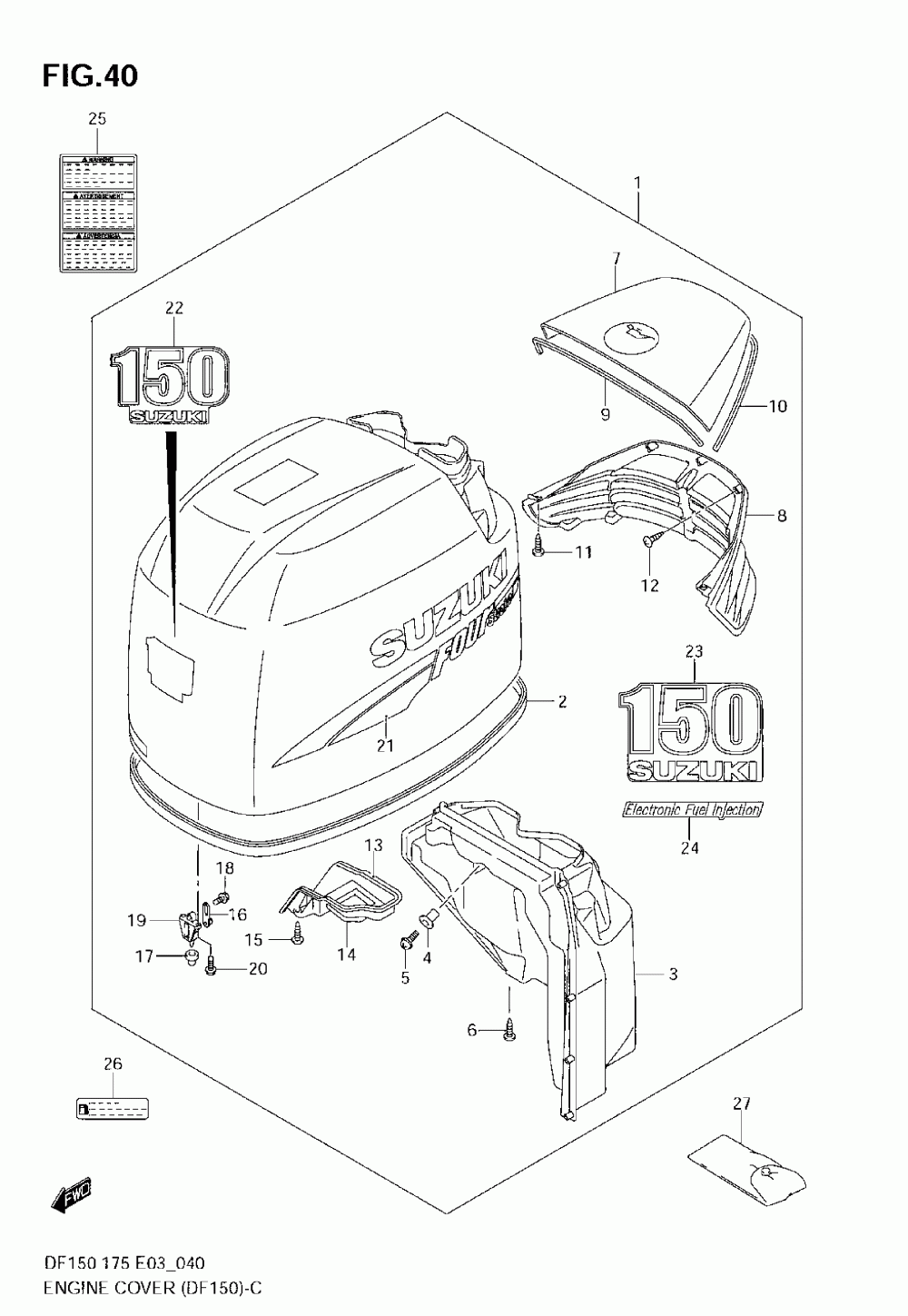

Капот (df150)

Suzuki Marine DF175
Suzuki Marine
#oem кодцена
1
61410-96833-0EP
COVER SET, ENGINE (BLACK)
2
61112-96J00
Уплотнитель капота
3
61430-96J01
GUIDE ASSY, AIR INTK INNER
4
09159-05019
NUT, AIR INTK INNER GUIDE
5
02142-05167
SCREW, AIR INTK GUIDE NO.2
6
03542-05169
SCREW, AIR INTK GUIDE NO.1
7
61431-96J00-0EP
HANDLE, TILT UP (BLACK)
8
61432-96J00
LOUVER, TILT UP HANDLE
9
61438-96J00
SEAL, TILT UP HANDLE NO.1
10
61439-96J00
SEAL, TILT UP HANDLE NO.2
13
61475-96J00
GUIDE, AIR VENT
14
61476-96J00
SEAL, AIR VENT
16
61610-90J22
Застежка
17
09329-10022
CUSHION, ENG COVER FASTENER
18
01550-06127
BOLT, ENG COVER FASTENER
19
61621-93J00
BRACKET, FASTENER
20
01547-06167
BOLT, FASTENER BRACKET
21
61453-96J01
STRIPE, ENGINE COVER PORT
21
61443-96J01
STRIPE, ENGINE COVER STBD
22
61422-96J21
MARK, EMBLEM FRONT (150)
23
61435-96J01
MARK, EMBLEM REAR (150)
24
61446-93J03
DECAL, EFI
25
61458-99E31
LABEL, ENGINE COVER
26
69716-99E13
LABEL, FUEL LIMITATION
27
09800-81811
Комплект инструмента
