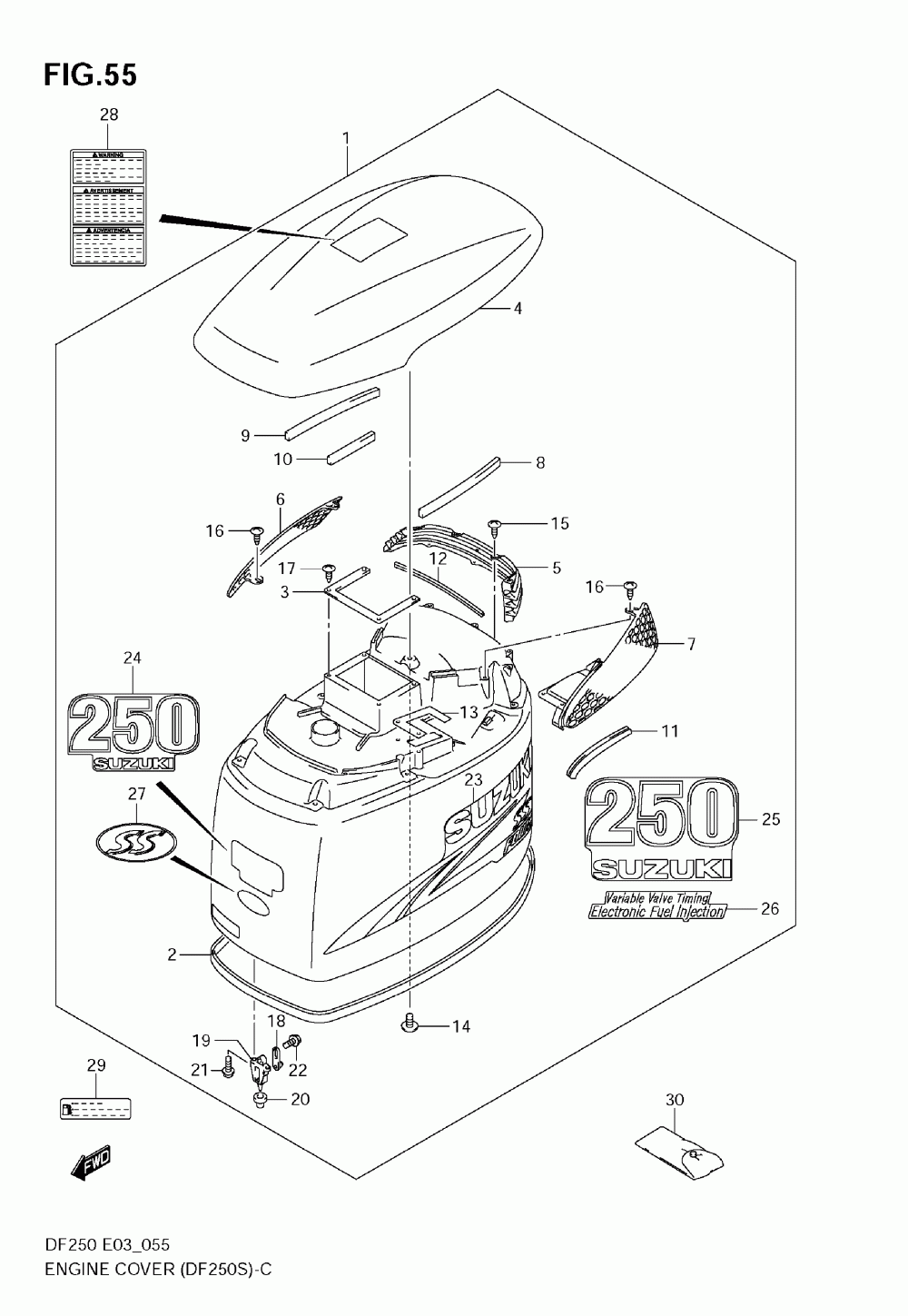

Капот (df250s)

Suzuki Marine DF200
Suzuki Marine
#oem кодцена
1
61420-93810-0EP
COVER SET, ENGINE
2
61112-93J10
RUBBER, ENG COVER
3
61416-93J00
Защита
4
61431-93J03-0EP
HANDLE, TILT UP (BLACK)
5
61432-93J00
LOUVER, TILT UP HANDLE
6
61433-93J00
COVER, AIR INTK INNER STBD
7
61434-93J00
COVER, AIR INTK INNER PORT
8
61438-93J00
TAPE, TILT UP HANDLE (L:250)
9
61438-93J10
TAPE, TILT UP HANDLE (L:190)
10
61438-93J20
TAPE, TILT UP HANDLE (L:106)
11
61439-93J20
SEAL, TILT UP HANDLE PORT
12
61439-93J40
SEAL, TILT UP HANDLE RR
13
61476-93J00
SEAL, AIR VENT
14
03542-05169
SCREW, TILT UP HANDLE
18
61610-93J00
Застежка
19
61621-93J00
BRACKET, FASTENER
20
09329-10022
CUSHION, ENG COV FASTENER RR
21
01547-06167
BOLT, FASTENER BRACKET
22
01550-06127
BOLT, ENG COV FASTENER
23
61443-93J20
STRIPE, ENGINE COVER STBD
23
61453-93J20
STRIPE, ENGINE COVER PORT
24
61422-93J43
MARK, EMBLEM FRONT (250)
25
61435-93J23
MARK, EMBLEM REAR (250)
26
61446-93J13
DECAL, EFI & VVT
27
61424-93J00
MARK, EMBLEM (SS)
28
61458-99E31
LABEL, ENGINE COVER
29
69716-99E13
LABEL, FUEL LIMITATION
30
09800-81833
Комплект инструмента
