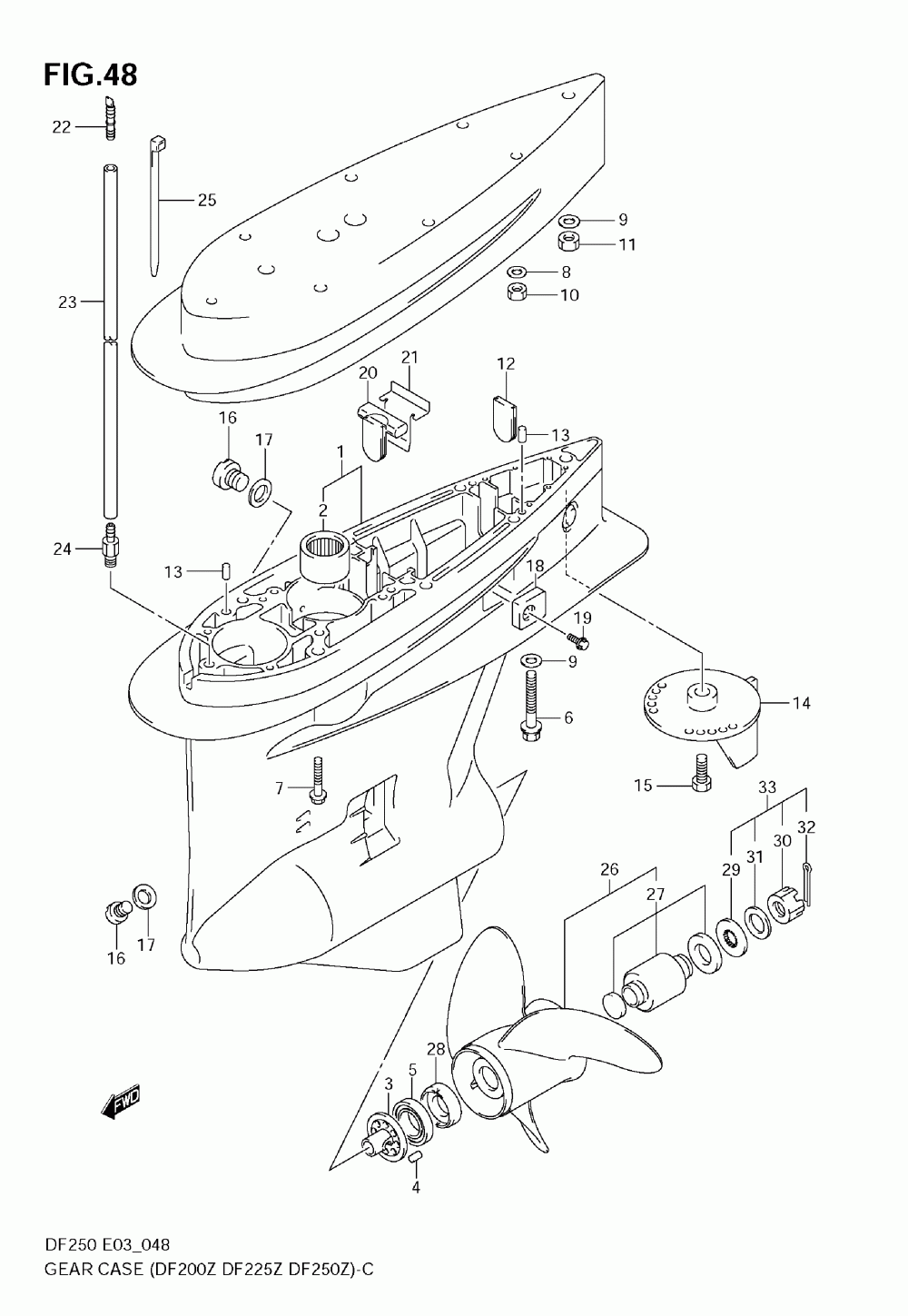

Картер (Gear Case) (DF200Z, DF225Z, 250Z)

Suzuki Marine DF225
Suzuki Marine
#oem кодцена
1
55110-93J30-0EP
CASE, GEAR (BLACK)
1
55110-93J10-0EP
CASE, GEAR (BLACK)
2
09263-32016
BEARING, PINION
2
09263-32017
BEARING, PINION
3
56145-93J00
HOUSING, SHIFT CAM
4
04221-08129
PIN, SHIFT CAM HOUSING
5
09265-50002
BEARING, FWD THRUST
6
09100-12052
BOLT (12X70)
7
09116-10150
BOLT (10X55)
8
09160-10141
WASHER (10.5X19X2)
9
09160-12066
WASHER (12.5X22X2.5)
10
29141-93J20
NUT, EXTENSION BOLT NO.1 (10X14)
11
09159-12014
NUT, EXTENSION BOLT NO.2 (12X17)
12
17566-87D11
GROMMET, GEAR CASE
13
09202-08006
PIN, GEAR CASE KNOCK
14
55125-98J00-0EP
TAB, TRIM
15
09116-08137
BOLT, TRIM TAB (8X22)
16
55128-93J00
Пробка, Дренажный
17
09168-10034
GASKET, DRAIN PLUG
18
55320-95311
ZINC, PROTECTION
19
09116-06094
BOLT, ZINC PROTECTION
20
55332-87D11
RUBBER, EXHAUST SEAL
21
55333-87D10
PLATE, EXHAUST SEAL
22
55127-87D00
UNION, SPEEDOMETER HOSE
23
09355-40805-00B
HOSE, SPEEDOMETER
24
09362-09008
NIPPLE, SPEEDOMETER
25
09407-14407
CLAMP, SPEEDOMETER HOSE
26
58200-93JC0
PROPELLER (3X16X21.5)
26
58200-93JD0
PROPELLER (3X16X23)
26
58200-93JB0
PROPELLER (3X16X20)
26
58200-93JE0
PROPELLER (3X16X17)
26
58200-93JA0
PROPELLER (3X16X18.5)
26
58200-93JF0
PROPELLER (3X16X24.5)
27
58105-93J00
BUSH SET, PROPELLER
28
57632-93J11
STOPPER, PROPELLER BUSH
28
57632-93J00
STOPPER, PROPELLER BUSH
28
57632-93J10
STOPPER, PROPELLER BUSH
29
57633-87D30
SPACER, PROPELLER NUT
30
09141-18005
Гайка
31
09160-18028
Шайба
32
09204-03003
Шплинт
33
57630-92E00
KIT, PROPELLER NUT
34
25700-93J00
KIT, GEAR CASE SEALING
