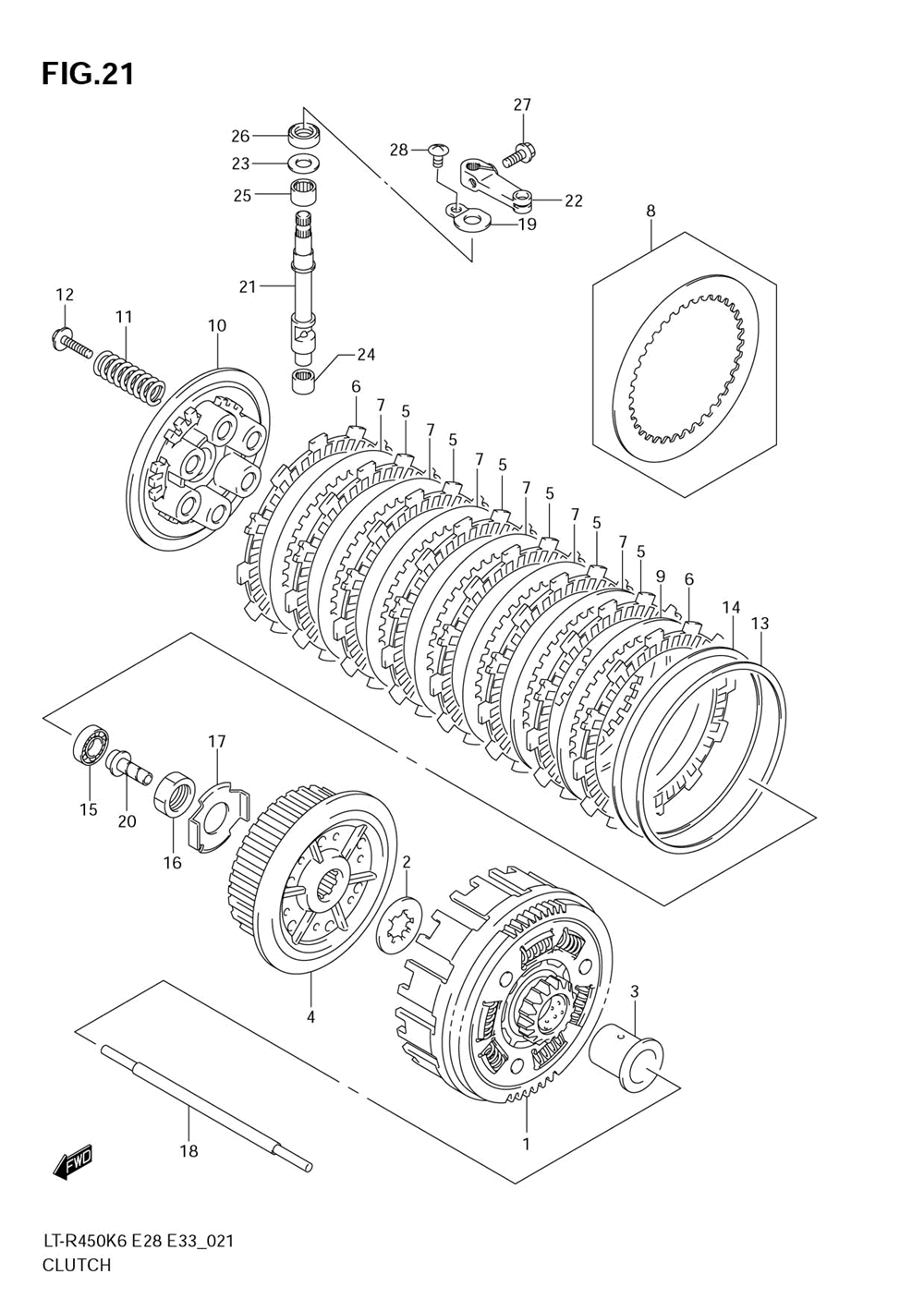

Сцепление Запчасти для квадроциклов ATV Suzuki LT R450 QUADRACER (2006)

Сцепление

Suzuki LT R450 QUADRACER

oem код

название

цена

21200-45G00

Gear Assy, Primary Driven

21415-35G00

Washer, Clutch Sleeve

21251-29F00

Spacer, Primary Driven

21411-35G11

Hub, Clutch Sleeve

21441-45G00

Plate, Drive No.1

21441-37F30

Plate, Clutch Drive No.2

Plate, Clutch Driven

Plate, Driven No.3

Plate, Clutch Driven

Disc, Clutch Pressure

Пружина

Bolt, Clutch Spring

Seat, Wave Washer

Washer, Clutch Plate Wave

08110-68040

Подшипник

09140-18017

Nut, Clutch Sleeve Hub

21416-35G10

Washer, Clutch Sleeve

23110-45G00

Rod, Clutch Push

23117-05200

Retainer, Cl Rlse Oil Seal

Piece, Cl Rlse

Camshaft, Cl Rlse

Arm, Release

Washer, Cl Rlse

Bearing, Cl Rlse Low

Bearing, Cl Rlse Up

Seal, Cl Rlse Arm

Болт

Screw, Bracket
