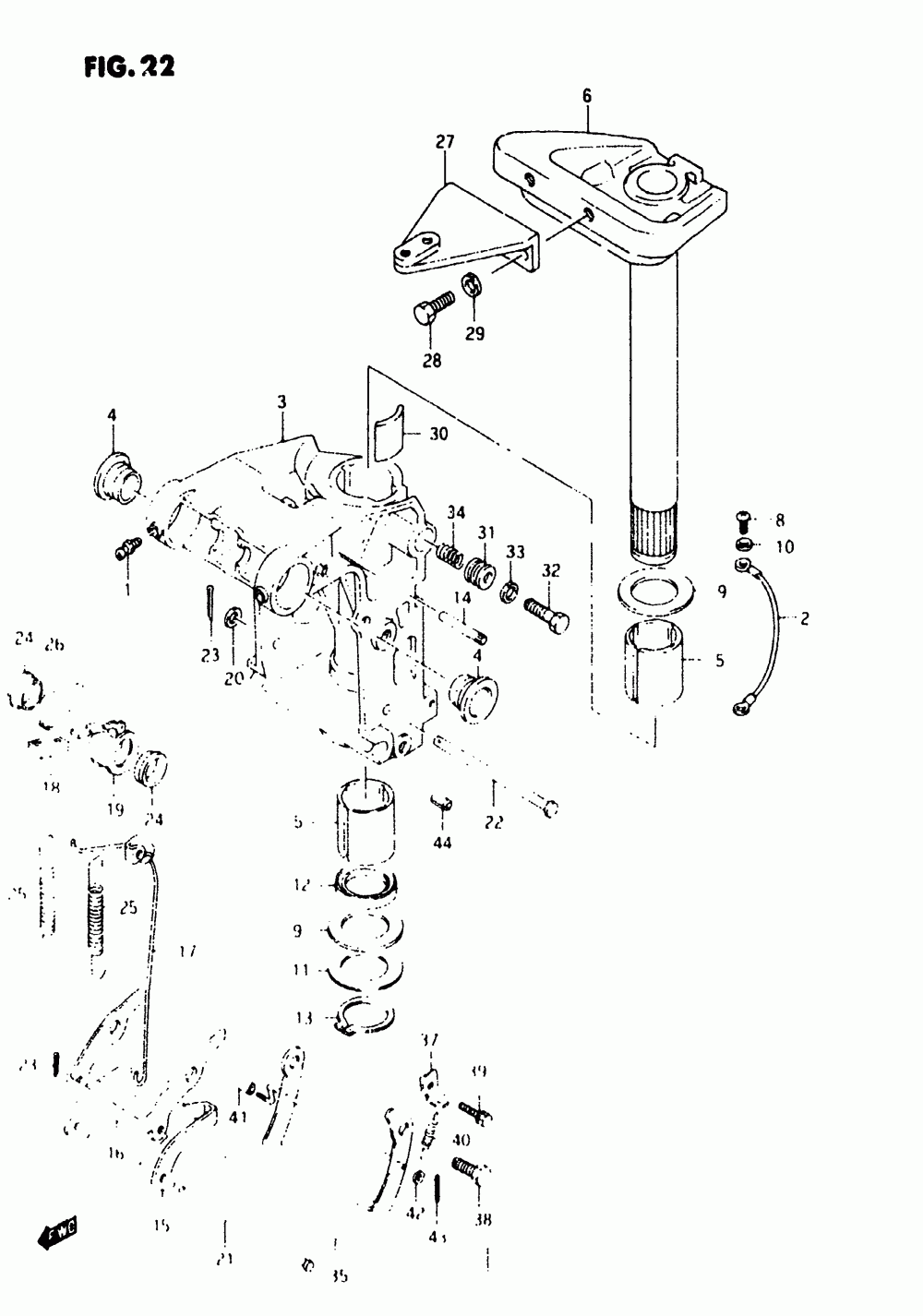

Swivel Bracket (dt40c Model:93~98) (*)
Swivel Bracket (dt40c Model:93~98) (*)

Swivel Bracket (dt40c Model:93~98) (*)

Suzuki Marine DT40C

Swivel Bracket (dt40c Model:93~98) (*)

#

oem код

название

цена

1

Ниппель

Ниппель

2

LEAD

LEAD

4

BUSH, SWIVEL BRACKET

BUSH, SWIVEL BRACKET

5

BUSH, STEERING

BUSH, STEERING

8

Винт

Винт

9

WASHER, PILOT SHAFT

WASHER, PILOT SHAFT

10

WASHER, LEAD

WASHER, LEAD

11

SHIM, SWIVEL (0.3)

SHIM, SWIVEL (0.3)

12

SEAL, SWIVEL BRACKET

SEAL, SWIVEL BRACKET

13

CIRCLIP, PILOT SHAFT LOWER

CIRCLIP, PILOT SHAFT LOWER

14

PIN, RELEASE ARM

PIN, RELEASE ARM

15

ARM, RELEASE LOCK

ARM, RELEASE LOCK

16

LINK, RELEASE LOCK ARM

LINK, RELEASE LOCK ARM

18

RUBBER, RELEASE LEVER

RUBBER, RELEASE LEVER

19

LEVER, RELEASE

LEVER, RELEASE

20

WASHER (8.5x16x1.2)

WASHER (8.5x16x1.2)

21

PIN, REVERSE LOCK ARM

PIN, REVERSE LOCK ARM

23

PIN, SPRING STOPPER COTTER

PIN, SPRING STOPPER COTTER

24

BUSH, RELEASE LEVER

BUSH, RELEASE LEVER

26

Пружина

Пружина

27

ATTACHMENT, STRG BRKT

ATTACHMENT, STRG BRKT

28

Болт

Болт

29

Гровер

Гровер

31

COVER, STRG ADJ

COVER, STRG ADJ

32

BOLT, STRG ADJ

BOLT, STRG ADJ

33

WASHER (8.5x14x1.0)

WASHER (8.5x14x1.0)

34

SPRING, STRG ADJ

SPRING, STRG ADJ

35

KNOB, RELEASE LEVER

KNOB, RELEASE LEVER

42

WASHER (5.5x12x0.8)

WASHER (5.5x12x0.8)
