Трансмиссия 2 Запчасти для квадроциклов ATV Suzuki LT-A700X KINGQUAD 4x4 (2006)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

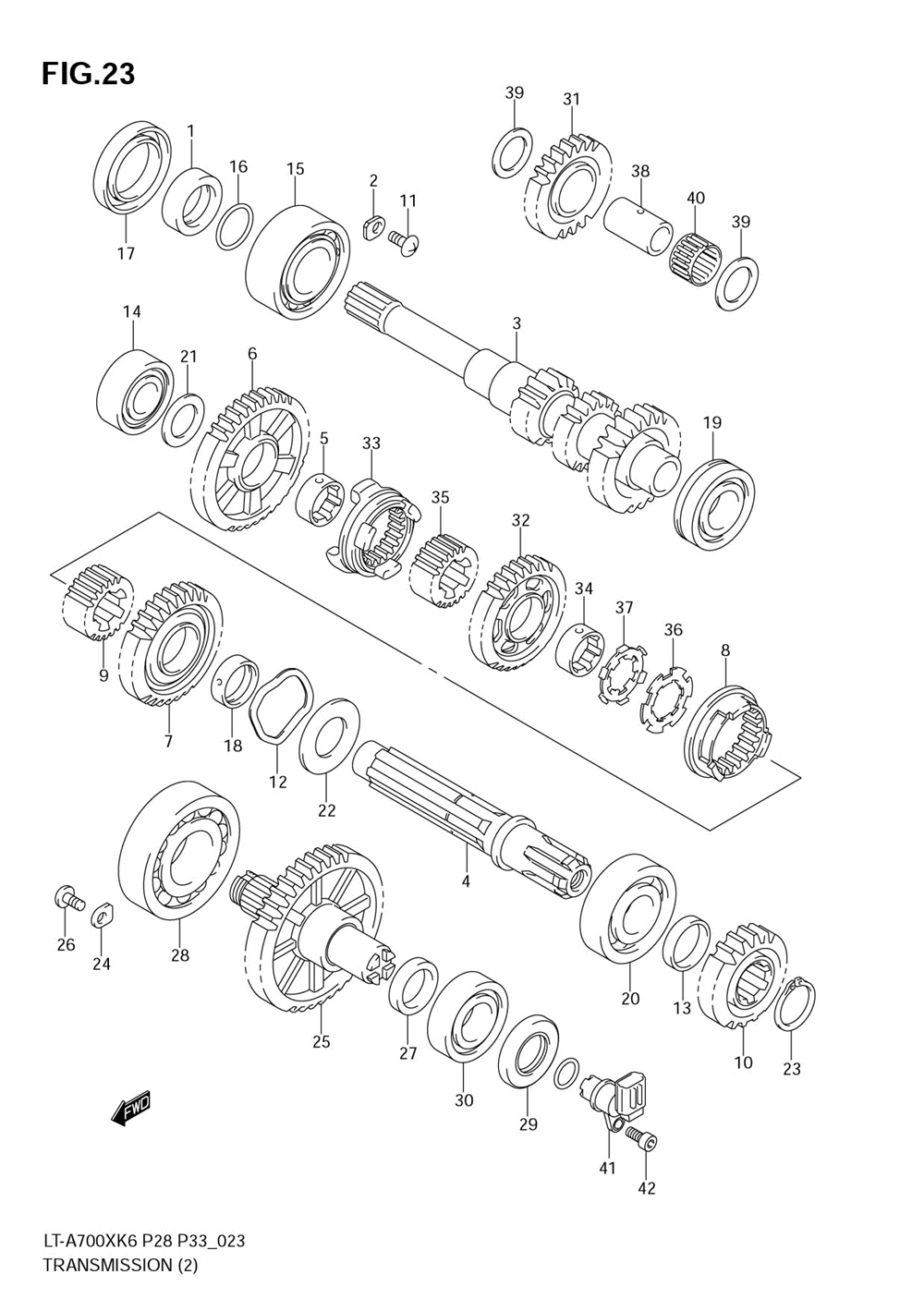

Трансмиссия 2

Suzuki LT-A700X KINGQUAD 4x4

Трансмиссия 2

#

oem код

название

цена

1

Spacer, Drive Shaft

Spacer, Drive Shaft

2

Retainer, Shift Cam Bearing

Retainer, Shift Cam Bearing

3

Вал ведущий

Вал ведущий

4

Shaft, Sub T/m Counter

Shaft, Sub T/m Counter

5

Bush, 3rd Driven

Bush, 3rd Driven

6

Gear, Sub T/m Driven Low

Gear, Sub T/m Driven Low

7

Gear, Sub T/m Driven High

Gear, Sub T/m Driven High

8

Dog, Gear Shift High

Dog, Gear Shift High

9

Spacer, Reverse Select

Spacer, Reverse Select

10

Gear, Sub T/m Drive No.2

Gear, Sub T/m Drive No.2

11

Screw, Shift Cam (6x12)

Screw, Shift Cam (6x12)

12

Washer, Sub T/m Driven

Washer, Sub T/m Driven

13

Spacer, Sub T/m Drive Gear

Spacer, Sub T/m Drive Gear

14

Bearing, Center Shaft Lh

Bearing, Center Shaft Lh

15

.bearing (30x62x23.8)

.bearing (30x62x23.8)

16

Кольцо

Кольцо

17

.seal, Crankshaft Oil Upper

.seal, Crankshaft Oil Upper

18

Bush, 5th Drive

Bush, 5th Drive

19

.bearing (25x52x15)

.bearing (25x52x15)

20

Bearing (25x62x17)

Bearing (25x62x17)

21

Упорная шайба

Упорная шайба

22

Washer, Sub T/m Driven, L

Washer, Sub T/m Driven, L

23

08331-31256

08331-31256

25

Shaft, Sub T/m Output

Shaft, Sub T/m Output

27

Spacer, Sub T/m Output

Spacer, Sub T/m Output

28

Bearing, Sub T/m Output, R

Bearing, Sub T/m Output, R

29

Сальник

Сальник

31

Gear, Reverse Idle (nt:23)

Gear, Reverse Idle (nt:23)

32

Gear, Reverse Driven (nt:32)

Gear, Reverse Driven (nt:32)

33

Dog, Sub T/m Select Sl

Dog, Sub T/m Select Sl

36

Lock Washer, 3rd Driven

Lock Washer, 3rd Driven

37

Washer, 3rd Driven Lock

Washer, 3rd Driven Lock

38

Shaft, Reverse Idle

Shaft, Reverse Idle

39

Washer, 1st Driven

Washer, 1st Driven

40

Bearing, Reverse Idle Gear

Bearing, Reverse Idle Gear

41

Датчик скорости

Датчик скорости

42

.bolt, Piston Jet Valve

.bolt, Piston Jet Valve
