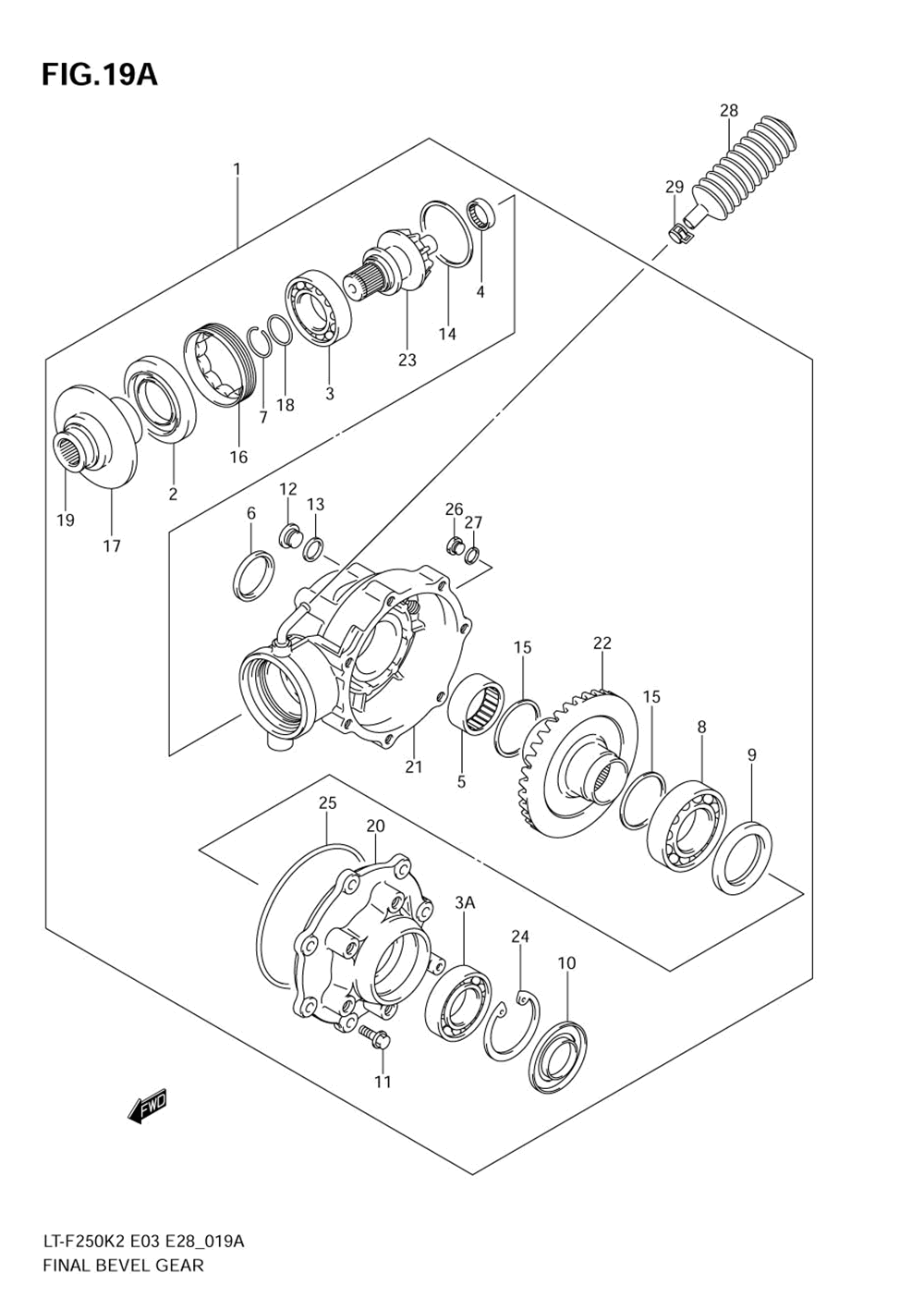

Final bevel gear (model k3 Запчасти для квадроциклов ATV Suzuki LT F250 OZARK (2005)

Final bevel gear (model k3

Suzuki LT F250 OZARK

oem код

название

цена

27400-05G10

Case Assy, Rear Final Gear

.oil Seal (35x69x8)

.bearing (30x62x16)

.bearing (15x23x16)

.bearing (45x52x20)

.oil Seal (45x55x7)

.c Ring (24x1.0)

.bearing (45x75x16)

.oil Seal (42x62x7)

.oil Seal (30x62x7)

Болт

.plug

Прокладка

.shim Set, Final Drive

27407-05820

.shim Set, Final Driven (t:1.26/1.32/1.38/1.44/1.50/1.56/1.62/1.68/1.74/1.80)

27312-05GA0

.stopper, Bearing

27592-05GA0

.plate, Output Oil Seal

27406-05GE0

.o Ring (d:2.0, Id:25.5)

.shaft, Joint

.case, Final Gear Lh

.case, Final Gear Rh

.gear, Final Driven Bevel

27311-05GA0

.gear, Final Driven Bevel

27403-05GB0

.circlip

27406-05GF0

.o Ring (d:3.5, Id:130)

.bolt, Oil Check

.gasket, Oil Check

Case, Breather

Зажим

Bearing, 30x62x1
