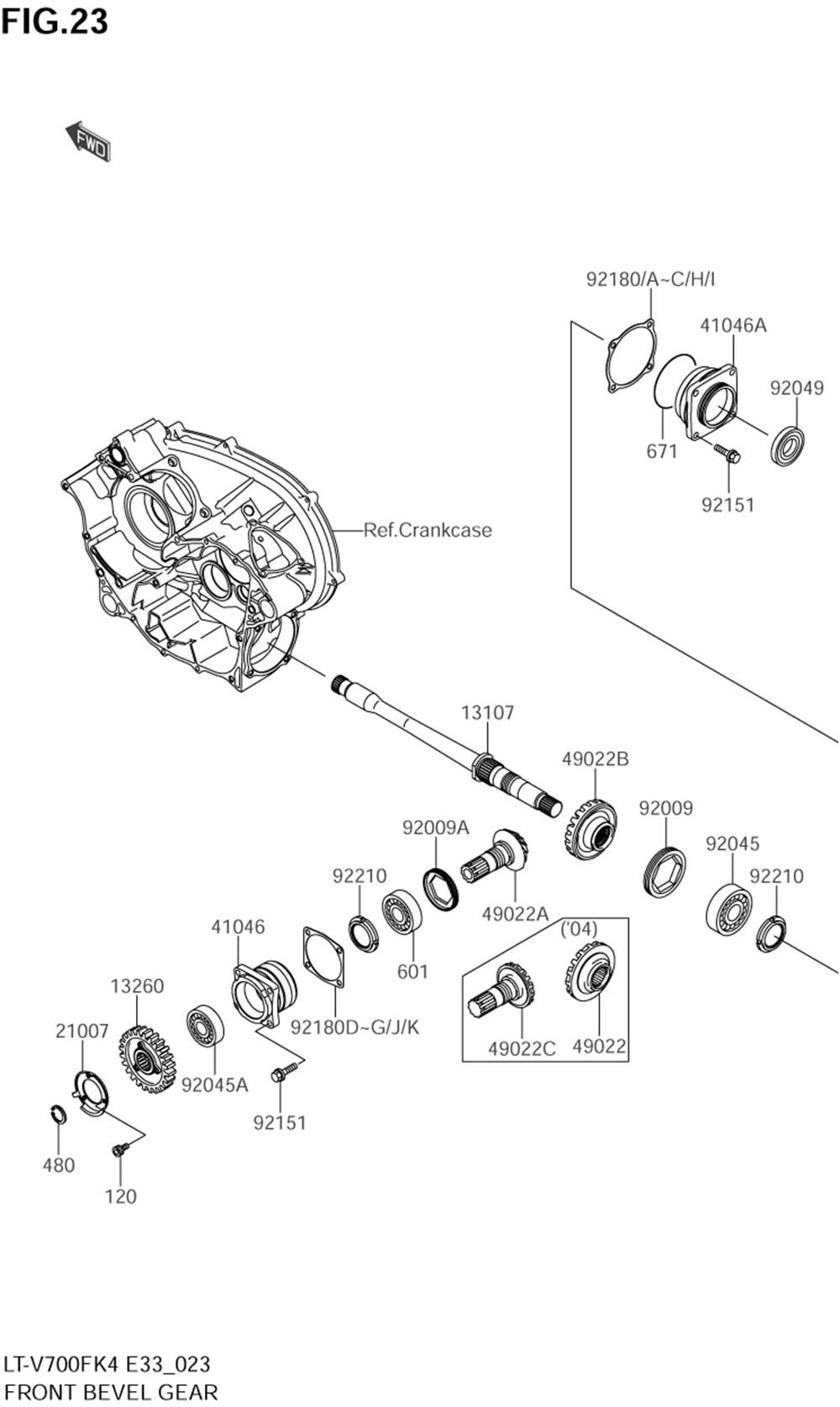

Передняя коническая зубчатая передача

Suzuki LT-V700F TWIN PEAKS 4x4
Suzuki
#oem кодцена
13107
K1310-70027
Вал
13260
K1326-01922
Gear, Output 29t
21007
K2100-71416
Rotor, Reverse Sensor
41046
K4104-61101
Housing-bearing
41046A
K4104-61102
Housing-bearing
49022
K4902-20007
Gear-bevel, Driven, 20t
49022A
K4902-20010
Gear-bevel, Drive, 12t
49022B
K4902-20011
Gear-bevel, Driven, 20t
49022C
K4902-21192
Gear-bevel, Drive, 12t
92009
K9200-91667
Винт
92009A
K9200-91914
Screw, 64mm
92045
K9204-51190
Bearing-ball, 6306sh2
92045A
K9204-51207
Bearing-ball, 62/28
92049
K9204-90095
Сальник
92151
K9215-11688
Болт
92180
K9218-01307
Shim, Driven, T=0.15
92180A
K9218-01308
Shim, Driven, T=0.20
92180B
K9218-01309
Shim, Driven, T=0.50
92180C
K9218-01310
Shim, Driven, T=0.80
92180D
K9218-01311
Shim, Drive, T=0.15
92180E
K9218-01312
Shim, Drive, T=0.20
92180F
K9218-01313
Shim, Drive, T=0.50
92180G
K9218-01314
Shim, Drive, T=0.80
92180H
K9218-01349
Shim, Driven, T=1.00
92180I
K9218-01350
Shim, Driven, T=1.20
92180J
K9218-01351
Shim, Drive, T=1.00
92180K
K9218-01352
Shim, Drive, T=1.20
92210
K9221-01294
Nut, 30mm
120
K120C-A0612
Bolt-socket, 6x1
480
KK480-J2800
Circlip-type-c, 28mm
601
KK601-B6206
Bearing-ball, #6206c3
671
KK671-D2585
Кольцо
