Переднее крыло Запчасти для квадроциклов ATV Suzuki LT-V700F TWIN PEAKS 4x4 (2005)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

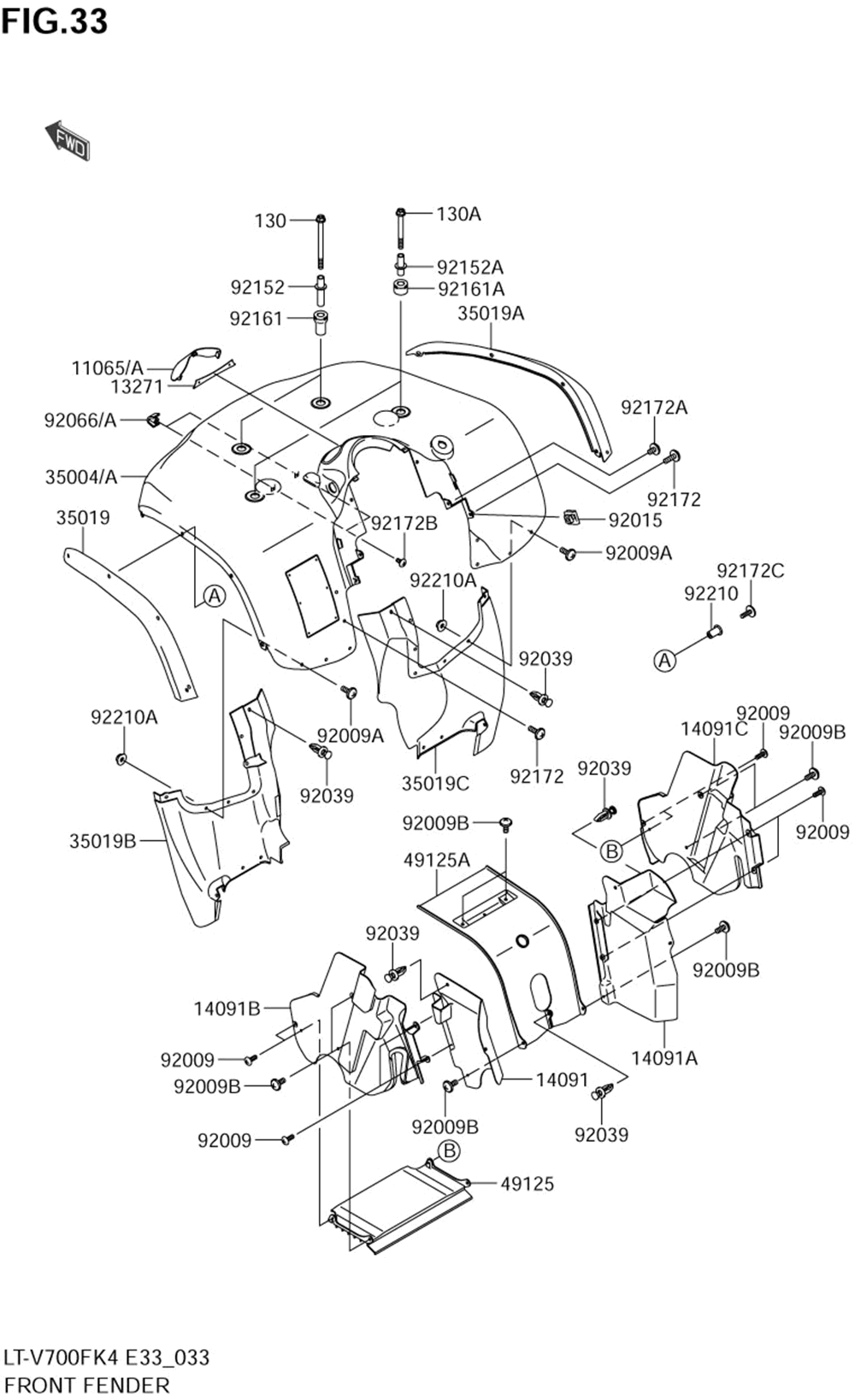

Переднее крыло

Suzuki LT-V700F TWIN PEAKS 4x4

Переднее крыло

#

oem код

название

цена

11065

K1106-51204-267

Cap, Fr Fender, C.yellow

Cap, Fr Fender, C.yellow

11065A

K1106-51204-278

Cap, Fr Fender, G.blue

Cap, Fr Fender, G.blue

13271

Plate, Fr Fender Cap

Plate, Fr Fender Cap

14091

Cover, Side, Rr, Lh

Cover, Side, Rr, Lh

14091A

Cover, Side, Rr, Rh

Cover, Side, Rr, Rh

14091B

Cover, Side, Fr, Lh

Cover, Side, Fr, Lh

14091C

Cover, Side, Fr, Rh

Cover, Side, Fr, Rh

35004

K3500-41452-267

Fender-front, C.yellow

Fender-front, C.yellow

35004A

K3500-41452-278

Fender-front, G.blue

Fender-front, G.blue

35019

KK350-19136-56Z

Flap, Fr, Side, Lh, F.black

Flap, Fr, Side, Lh, F.black

35019A

KK350-19136-66Z

Flap, Fr, Side, Rh, F.black

Flap, Fr, Side, Rh, F.black

35019B

KK350-19139-16Z

Flap, Fr, Rr, Lh, F.black

Flap, Fr, Rr, Lh, F.black

35019C

KK350-19139-26Z

Flap, Fr, Rr, Rh, F.black

Flap, Fr, Rr, Rh, F.black

49125

Shroud, Fr, Lwr

Shroud, Fr, Lwr

49125A

Shroud, Fr, Upp

Shroud, Fr, Upp

92009

Screw, Tapping, 5x14

Screw, Tapping, 5x14

92009A

Screw, 6x16

Screw, 6x16

92009B

Screw, 6x14

Screw, 6x14

92015

Nut, Clamp, 6mm

Nut, Clamp, 6mm

92039

Заклёпка

Заклёпка

92066

K9206-60028-267

Plug, Front Fender, C.yellow

Plug, Front Fender, C.yellow

92066A

K9206-60028-278

Plug, Front Fender, G.blue

Plug, Front Fender, G.blue

92152

Collar, L=90

Collar, L=90

92152A

Collar, L=60.7

Collar, L=60.7

92161

Damper, L=58.5

Damper, L=58.5

92161A

Damper, L=25.5

Damper, L=25.5

92172

Screw, 6x18

Screw, 6x18

92172A

Screw, 6x10

Screw, 6x10

92172B

Screw, Tapping, 4x10

Screw, Tapping, 4x10

92172C

Screw, 5x18

Screw, 5x18

92210

Nut, Pop, 5mm

Nut, Pop, 5mm

92210A

Nut, 6mm

Nut, 6mm

130

KKK13-0CB08-105

Болт

Болт

130A

Болт

Болт
