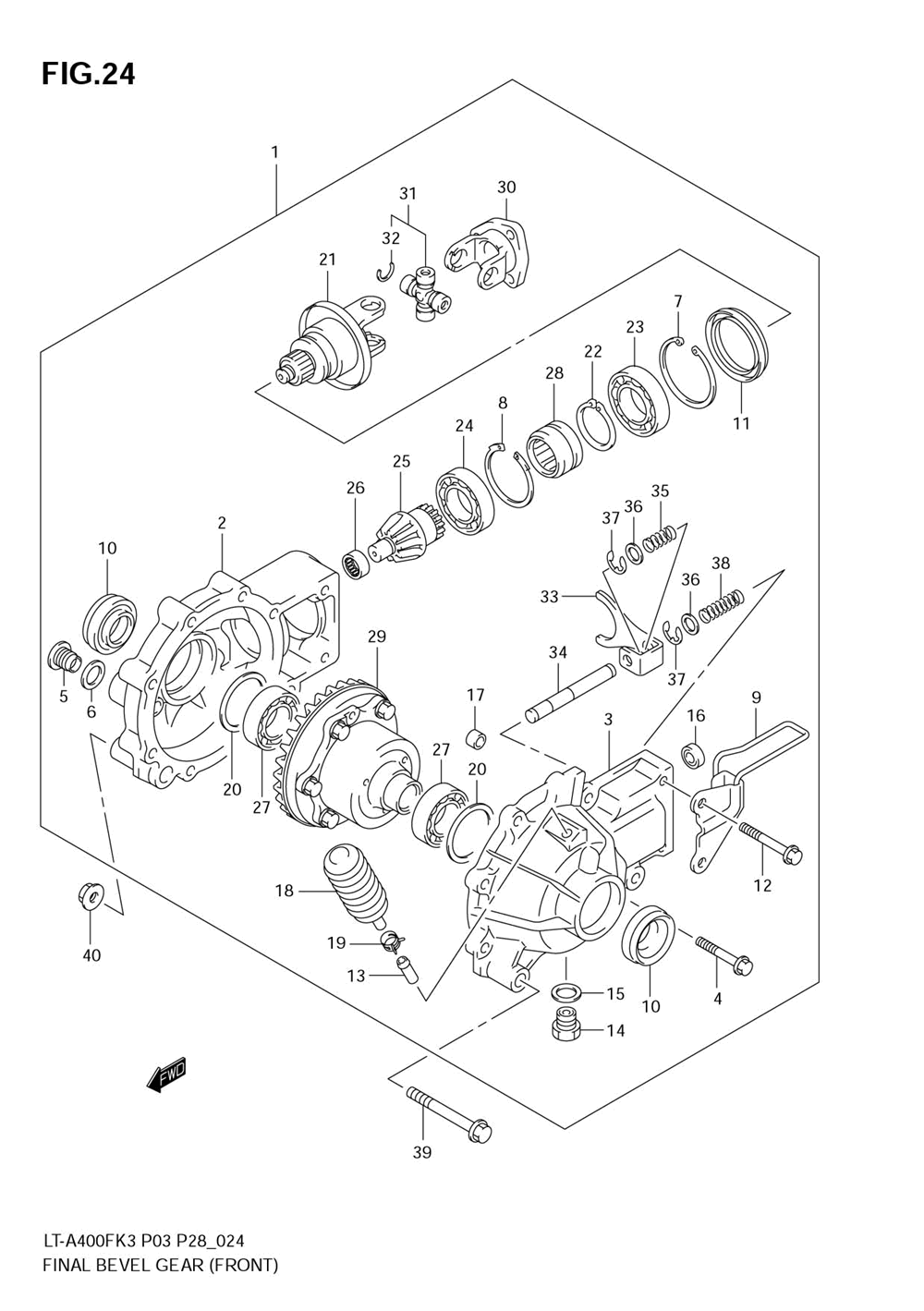

Final bevel gear (front)(model k3/k4 Запчасти для квадроциклов ATV Suzuki LT-A400F EIGER 4x4 AUTOMATIC (2004)

Final bevel gear (front)(model k3/k4

Suzuki LT-A400F EIGER 4x4 AUTOMATIC

oem код

название

цена

27400-38F10

Case Assy, Fr Differential

27451-38FA0

.housing, Final Drive Fr

Cover, Final Dri

.bolt (8x25)

.plug

Шайба

.ring Snap

.ring Snap

.bracket Assy, Shift

.oil Seal

.oil Seal

.bolt (8x50)

.pipe, Breather

.plug

Шайба

.oil Seal

.collar

Case, Breather

Зажим

.shim Set (t:0.70/0.75/0.80/0.85/0.90/0.95/1.00/1.05/1.10/1.15/1.20/1.25/1.30/1.35/1.40/1.45)

.yoke Assy

.snap Ring

.bearing

.bearing

.pinion, Drive

.bearing

.bearing

.sleeve

.gear Assy

Yoke, Prop Shaft Joint Rear

27200-19810

Joint Set, Universal Rr

.circlip

.fork, Shift

.rod, Shift

.spring, Shift

Шайба

.e Ring

.spring, Return

Bolt (10x110)

Гайка
