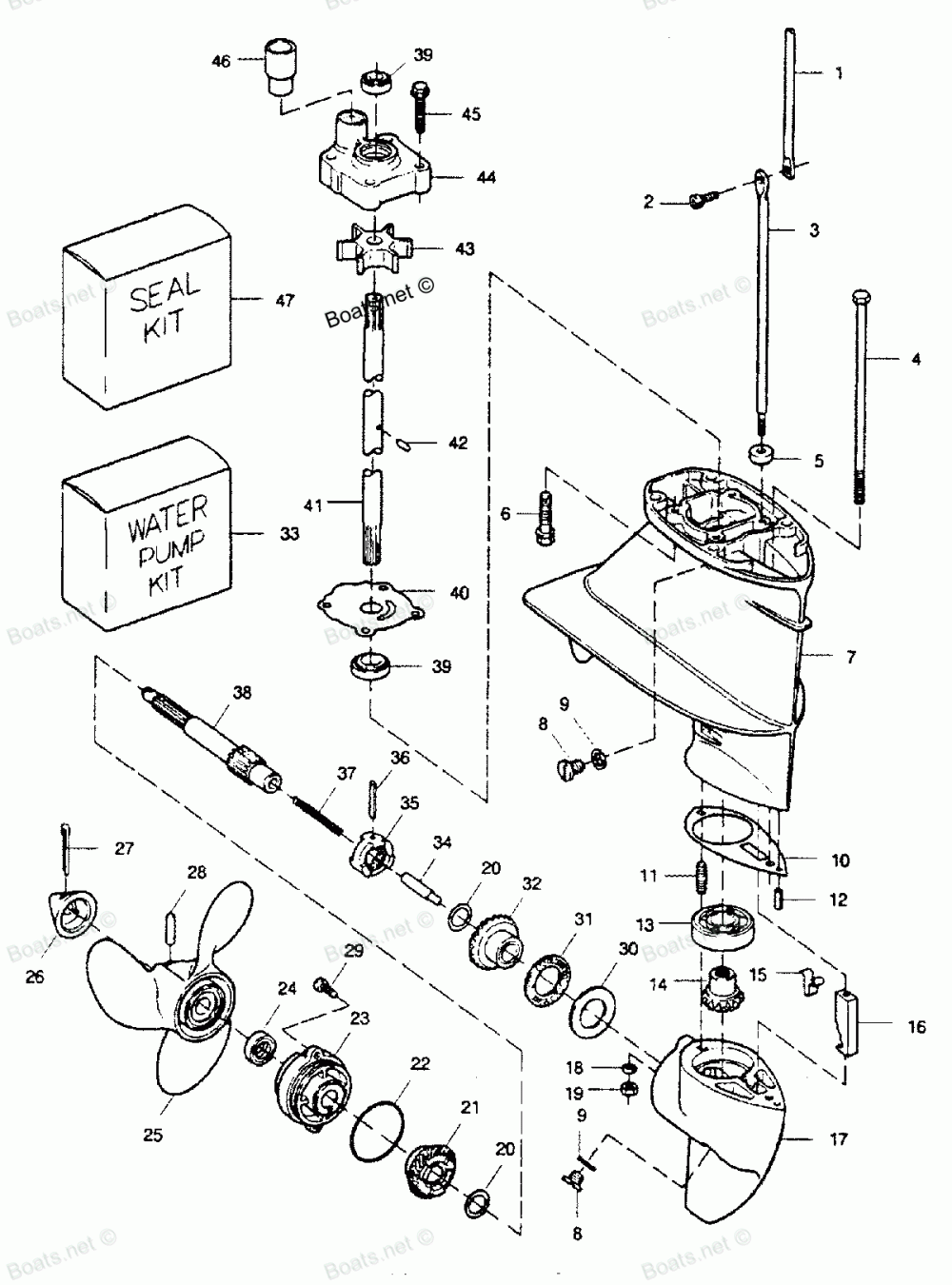

Gear Housing Каталог оригинальных запчастей для лодочных моторов Force H0093S91A (1991)

Gear Housing

Force H0093S91A

oem код

название

цена

286615

GEAR SHIFT ROD, UPPER

1976

SOCKET HEAD CAP SCREW W/LOCKWASHER, 10 - 24 X 1/2

330705

GEAR SHIFT ROD, LOWER (20 INCH TRANSOM MODELS)

2867051

GEAR SHIFT ROD, LOWER (15 INCH TRANSOM MODELS)

1800

HEX BOLT, L/4 - 20 X 7

3386181

SEAL, SHIFT ROD LOWER

430732

HEX HEAD SCREW, 1/4 - 20 X 1

A715554

GEAR HOUSING UPPER W/BEARING, PLUGS AND SEALS

PLUG, GEAR HOUSING

WASHER, OIL PLUG

GASKET, GEAR HOUSING

STUD, REAR

Пружинный Штифт

Подшипник

GEAR, BEVEL PINION W/BALL BEARING

SPRING, CAM DETENT

Копирный вал

GEAR HOUSING LOWER

GEAR HOUSING KIT (INCLUDES ALL ITEMS REQUIRED TO BUILD COMPLETE LOWER GEAR HOUSI

SPRING LOCKWASHER

HEX NUT, 1/4 - 20

Упорная шайба

GEAR, BEVEI REAR W/BEARING

455305

SEAL, PROP SHAFT BEARING CAGE

817756A1

CAGE, PROP SHAFT BEARING W/BEARING END SEALS

346118

SEAL, PROP SHAFT

P6477

PROPELLER, 8 X 9-1/4, NYLON, 3 BLADE

817752A1

PROPELLER NUT W/COTTER PIN

1846

Шплинт

A324101

PROPELLER PIN, PACK OF 3 W/COTTER PIN

1493

HEAD SCREW, 1/4 - 20 X 5/8

286903

RACE, PROPELLER SHAFT BEARING

286901

BEARING, PROPELLER SHAFT

819252A1

GEAR, FRONT BEVEL W/BEARING

WATER PUMP KIT

SHIFT PIN

Муфта сцепления

Пружинный Штифт

Пружина

Вал гребного винта

SEAL, DRIVESHAFT

WATER PUMP BACKPLATE

DRIVESHAFT (20 INCH TRANSOM MODELS)

343128

DRIVESHAFT (15 INCH TRANSOM MODELS)

901563

PIN, IMPELLER DRIVE

4360652

Импеллер

A715060

WATER PUMP BODY W/DRIVESHAFT SEAL

2030

HEX HEAD SCREW. L/4 - 20 X 1-1/4 S.S.

A510914

SEAL, WATER LINE

K1065

SEAL KIT
