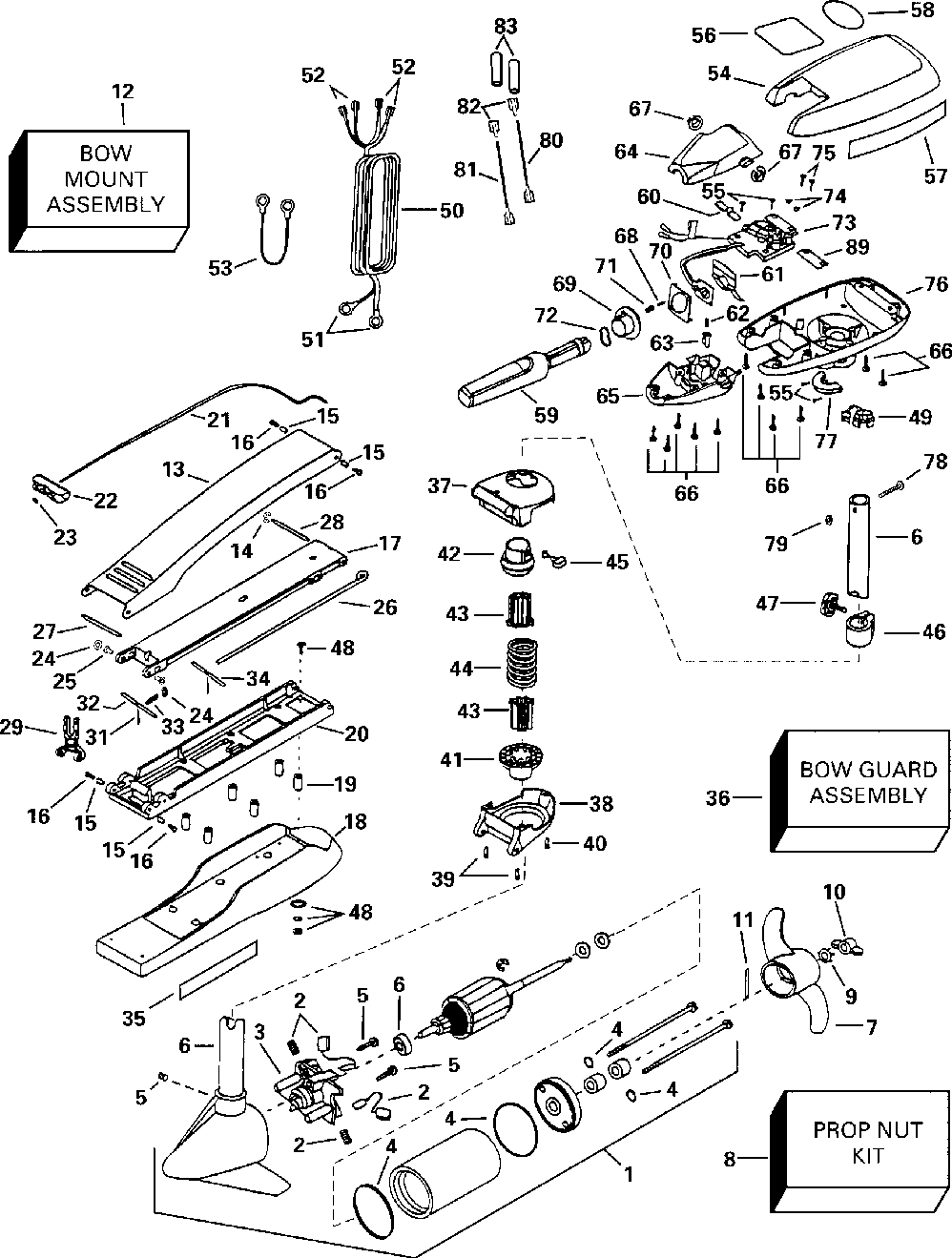

Intruder 54hp Каталог оригинальных запчастей для лодочных моторов Evinrude P/N 773163 SeaQuest 36HP (2000)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Intruder 54hp

Evinrude P/N 773163 SeaQuest 36HP

Intruder 54hp

#

oem код

название

цена

1

Motor Ay, Intdr-54

Motor Ay, Intdr-54

5

Винт

Винт

7

Prop, Ele Motor

Prop, Ele Motor

9

Lockwasher, Prop

Lockwasher, Prop

10

Гайка гребного винта

Гайка гребного винта

17

Lwr Bow Arm

Lwr Bow Arm

18

Motor Rest Ay-std

Motor Rest Ay-std

19

Spacer, Motor Rest

Spacer, Motor Rest

24

Шайба

Шайба

30

Винт

Винт

31

Палец

Палец

32

Lock Bar, Rear

Lock Bar, Rear

33

Spring, Lockbar

Spring, Lockbar

36

Bow Guard Ay

Bow Guard Ay

40

Винт

Винт

43

Insert, Tube

Insert, Tube

44

Spring, Bowguard

Spring, Bowguard

48

Mtg Hardware Ay

Mtg Hardware Ay

49

Strain Relief

Strain Relief

50

Провод

Провод

51

Terminal, Ring Set

Terminal, Ring Set

52

Terminal, Ring Set

Terminal, Ring Set

53

Conn. Cable, 24v

Conn. Cable, 24v

54

Cover, Control Box

Cover, Control Box

56

Decal, Cover

Decal, Cover

57

Decal, Side

Decal, Side

58

Наклейка

Наклейка

60

Spring, Detent, Ss

Spring, Detent, Ss

61

Spring, Detenr, Tilt

Spring, Detenr, Tilt

62

Spring, Release

Spring, Release

63

Release Button

Release Button

64

Handle, Upper

Handle, Upper

68

Pin, Actuator

Pin, Actuator

69

Actuator, Cam

Actuator, Cam

72

Spring, Cam (zinc)

Spring, Cam (zinc)

74

Washer, Insulator

Washer, Insulator

75

Винт

Винт

78

Винт

Винт

80

Wire Extension

Wire Extension

81

Wire Extension

Wire Extension

82

Штуцер

Штуцер

83

Shrink Tube-1/4"

Shrink Tube-1/4"
