Seaquest 74hp Каталог оригинальных запчастей для лодочных моторов Evinrude P/N 773167 SeaQuest 74HP (2000)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Seaquest 74hp

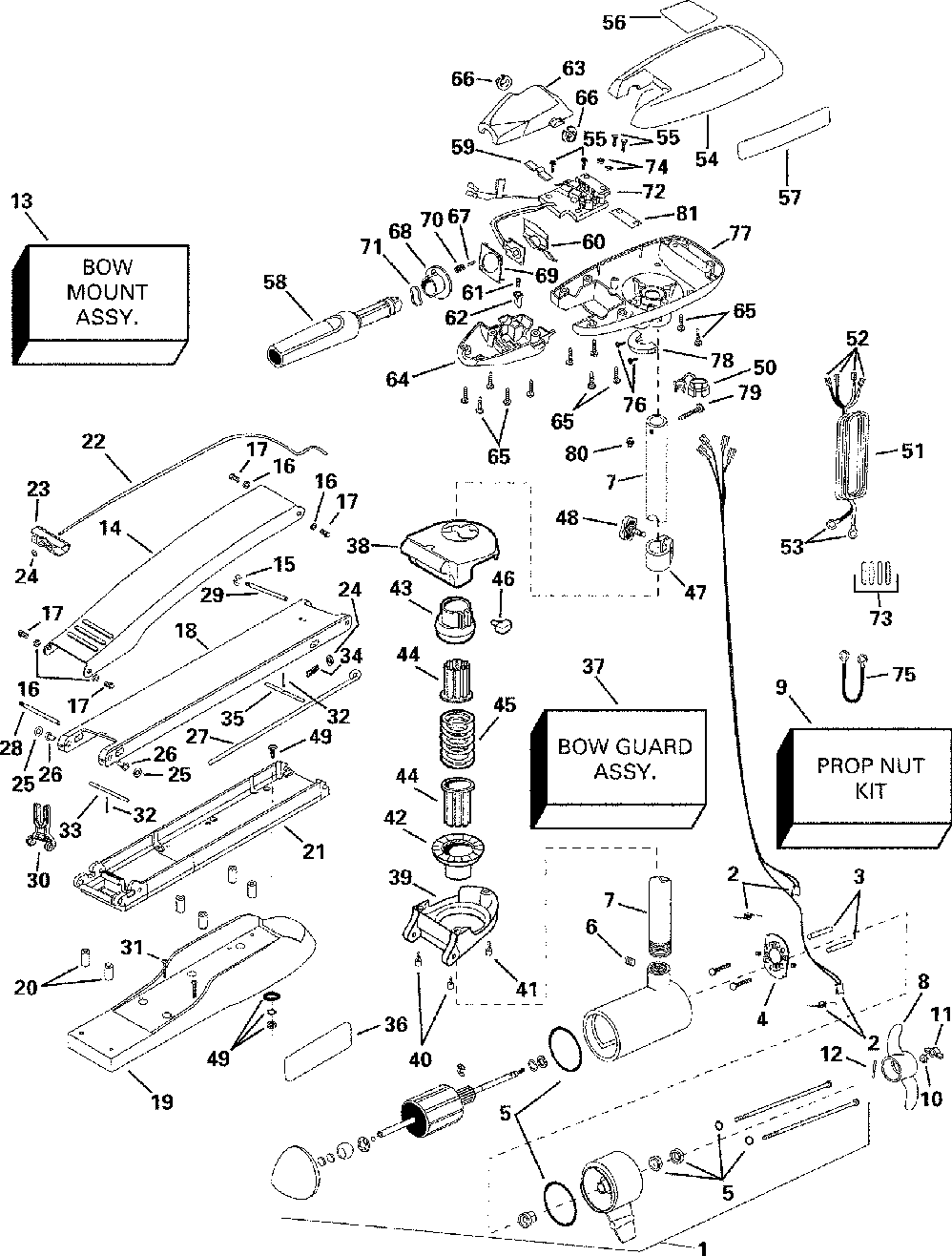

Evinrude P/N 773167 SeaQuest 74HP

Seaquest 74hp

#

oem код

название

цена

1

Motor Ay, S-q 74hp

Motor Ay, S-q 74hp

3

Spacer, Brush Plate

Spacer, Brush Plate

4

Brush Plate Ay

Brush Plate Ay

11

Гайка гребного винта

Гайка гребного винта

13

Bow Mount Ay

Bow Mount Ay

18

Arm, Lower

Arm, Lower

19

Motor Rest Ay-std

Motor Rest Ay-std

20

Spacer, Motor Rest

Spacer, Motor Rest

25

Шайба

Шайба

28

Палец петли

Палец петли

29

Палец петли

Палец петли

31

Винт

Винт

32

Палец

Палец

33

Lock Bar, Rear

Lock Bar, Rear

34

Spring, Lockbar

Spring, Lockbar

37

Bow Guard Ay

Bow Guard Ay

38

Bracket Ay, Top

Bracket Ay, Top

39

Bracket Ay, Lower

Bracket Ay, Lower

41

Винт

Винт

44

Insert, Tube

Insert, Tube

45

Spring, Bowguard

Spring, Bowguard

49

Mtg Hardware Ay

Mtg Hardware Ay

50

Strain Relief

Strain Relief

51

Провод

Провод

52

Terminal, Ring Set

Terminal, Ring Set

53

Terminal, Ring Set

Terminal, Ring Set

54

Cover, Control Box

Cover, Control Box

57

Decal, Side

Decal, Side

59

Spring, Detent, Ss

Spring, Detent, Ss

60

Spring, Detenr, Tilt

Spring, Detenr, Tilt

61

Spring, Release

Spring, Release

62

Release Button

Release Button

63

Handle, Upper

Handle, Upper

67

Pin, Actuator

Pin, Actuator

68

Actuator, Cam

Actuator, Cam

71

Spring, Cam (zinc)

Spring, Cam (zinc)

73

Shrink Tube #27635

Shrink Tube #27635

74

Washer, Insulator

Washer, Insulator

75

Connector Cable

Connector Cable

76

Винт

Винт

77

Control Box

Control Box

79

Винт

Винт

81

Pad Insulating

Pad Insulating
