Intruder 74hp Каталог оригинальных запчастей для лодочных моторов Evinrude P/N 775191 Intruder 44F* (2000)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Intruder 74hp

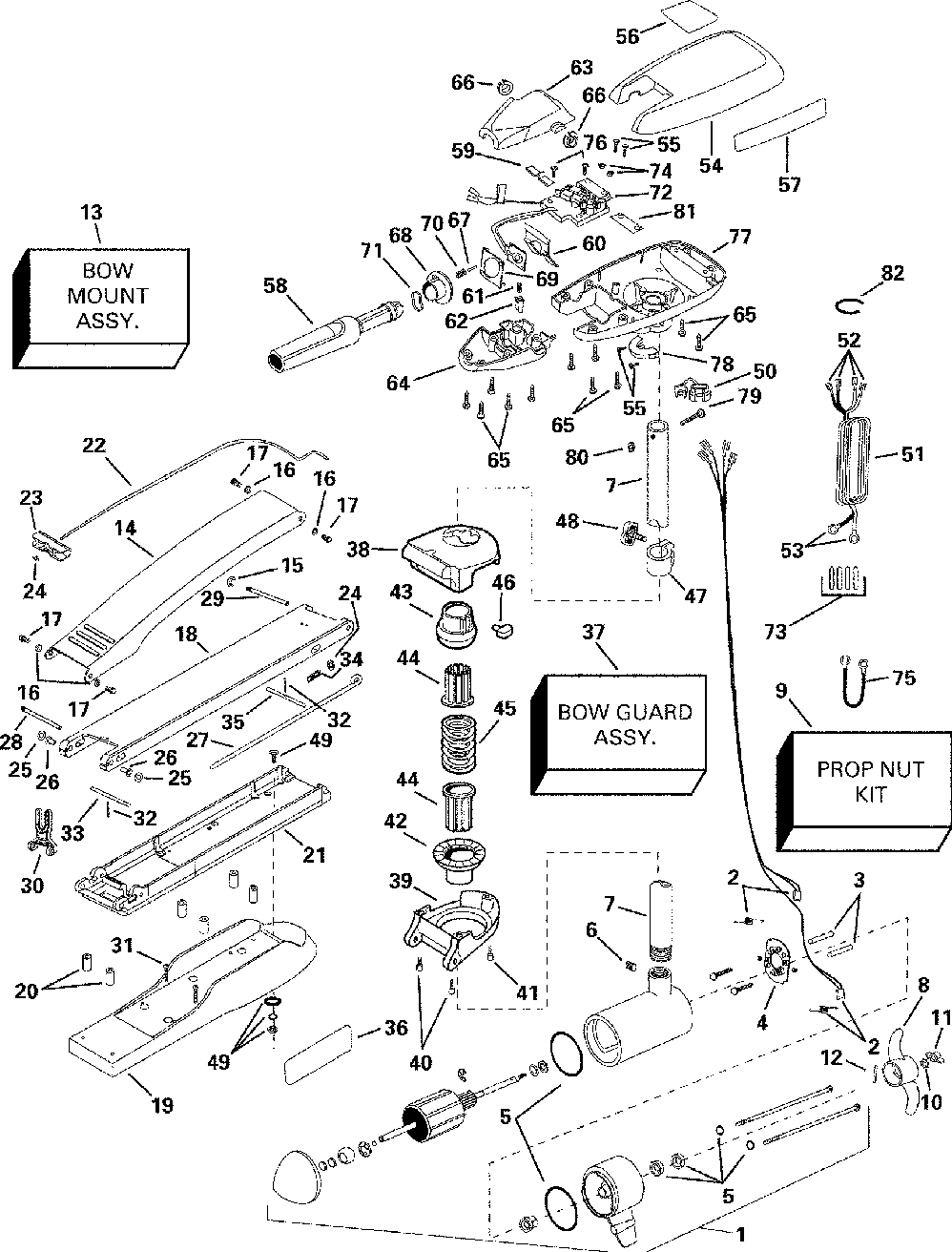

Evinrude P/N 775191 Intruder 44F*

Intruder 74hp

#

oem код

название

цена

1

Motor Ay, Intdr-74

Motor Ay, Intdr-74

2

Brush & Spring Kit

Brush & Spring Kit

3

Spacer, Brush Plate

Spacer, Brush Plate

4

Brush Plate Ay

Brush Plate Ay

8

Prop, Ele Motor

Prop, Ele Motor

10

Lockwasher, Prop

Lockwasher, Prop

11

Гайка гребного винта

Гайка гребного винта

18

Lwr Bow Arm

Lwr Bow Arm

19

Motor Rest Ay-std

Motor Rest Ay-std

20

Spacer, Motor Rest

Spacer, Motor Rest

25

Шайба

Шайба

31

Винт

Винт

32

Палец

Палец

33

Lock Bar, Rear

Lock Bar, Rear

34

Spring, Lockbar

Spring, Lockbar

37

Bow Guard Ay

Bow Guard Ay

40

Terminal, Ring Set

Terminal, Ring Set

41

Винт

Винт

44

Insert, Tube

Insert, Tube

45

Spring, Bowguard

Spring, Bowguard

50

Strain Relief

Strain Relief

51

Leadwire W/rings (intruder 74hp P/n 773168 )

Leadwire W/rings (intruder 74hp P/n 773168 )

51

Lead Wire (intruder 74hp P/n 773178 )

Lead Wire (intruder 74hp P/n 773178 )

52

Terminal, Ring Set

Terminal, Ring Set

53

Terminal, Ring Set

Terminal, Ring Set

54

Cover, Control Box

Cover, Control Box

57

Decal, Side

Decal, Side

59

Spring, Detent, Ss

Spring, Detent, Ss

60

Spring, Detenr, Tilt

Spring, Detenr, Tilt

61

Spring, Release

Spring, Release

62

Release Button

Release Button

63

Handle, Upper

Handle, Upper

67

Pin, Actuator

Pin, Actuator

68

Actuator, Cam

Actuator, Cam

71

Spring, Cam (zinc)

Spring, Cam (zinc)

73

Shrink Tube #27635

Shrink Tube #27635

74

Washer, Insulator

Washer, Insulator

75

Connector Cable

Connector Cable

76

Винт

Винт
