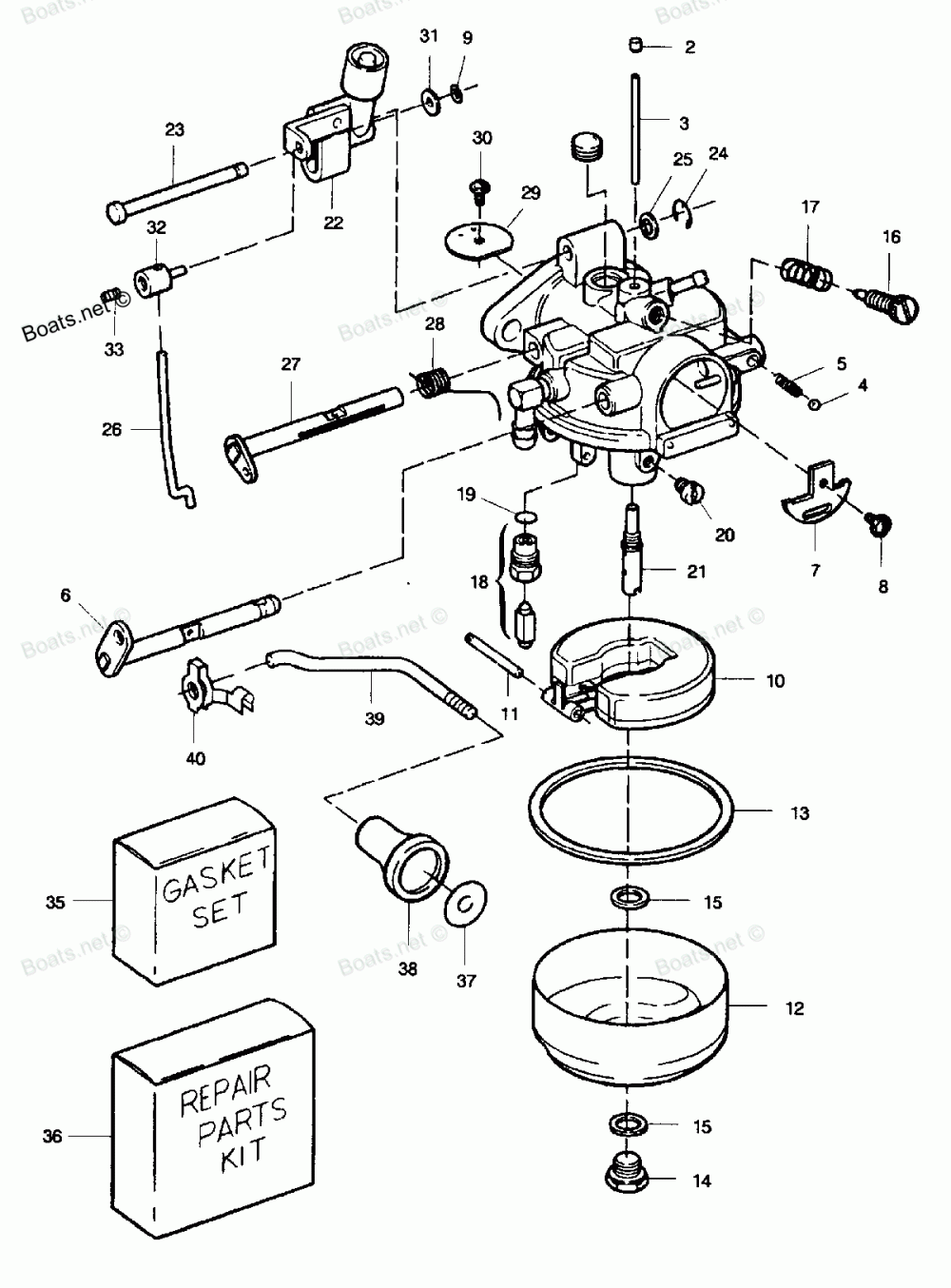

Carburetor 15 Hp

Force H0153S89A
Force
#oem кодцена
1
FO2531
PLUG, WELCH
2
FO10588
PLUG, CUP
3
F10235
TUBE, BY-PASS
4
FO4784
BALL, CHOKE FRICTION
5
FO8805
SPRING, CHOKE FRICTION
6
FO15736
SHAFT, CHOKE
7
F10236
SHUTTER, CHOKE
8
FO10280
SCREW, CHOKE SHUTTER RETAINING
9
F9030
Седло
10
FO13554
Поплавок
11
FO13944
Палец
12
FO15366
BOWL, FUEL
13
FO15623
GASKET, FUEL BOWL
14
FO13945
SCREW, FUEL BOWL RETAINING
15
FO2510
GASKET, FUEL BOWL RETAINING SCREW
16
FO15520
NEEDLE, IDLE MIXTURE
17
FO11103
SPRING, IDLE MIXTURE NEEDLE
18
F10237
INLET NEEDLE, SEAT AND GASKET
19
FO10165
GASKET, INLET SEAT
20
FO11385
JET, MAIN FUEL (.063) SEA LEVEL - 2500 FT.
F10261
JET, MAIN FUEL (.061) 2500 - 5000 FT.
10259
JET, MAIN FUEL (.059) 5000 - 7500 FT.
10260
JET, MAIN FUEL (.057) 7500 - 10000 FT.
21
F10238
Форсунка, главная
22
F10239
LINKAGE, THROTTLE
23
F10240
SHAFT, THROTTLE LINKAGE
24
F10241
"E" RING, THROTTLE LINKAGE SHAFT
25
F10242
WASHER, THROTTLE LINKAGE SHAFT
26
F681509
LINK, THROTTLE
27
FO15757
SHAFT, THROTTLE
28
F10246
SPRING, THROTTLE SHAFT RETURN
29
FO16878
SHUTTER, THROTTLE
30
FO10280
SCREW, THROTTLE SHUTTER RETAINING
31
F8088
Шайба
32
F681033
SWIVEL
33
F2215
HEX SET SCREW, #6 - 32 X 3/16
34
F682061-1
CARBURETOR COMPLETE
35
FK10243
Комплет прокладок
36
FK10244
REPAIR PARTS KIT
37
F458677
INSERT, CHOKE KNOB
38
F286547
Ручка, дроссель
39
F617503
Тяга дросселя
40
F341384
RETAINER, CHOKE ROD
