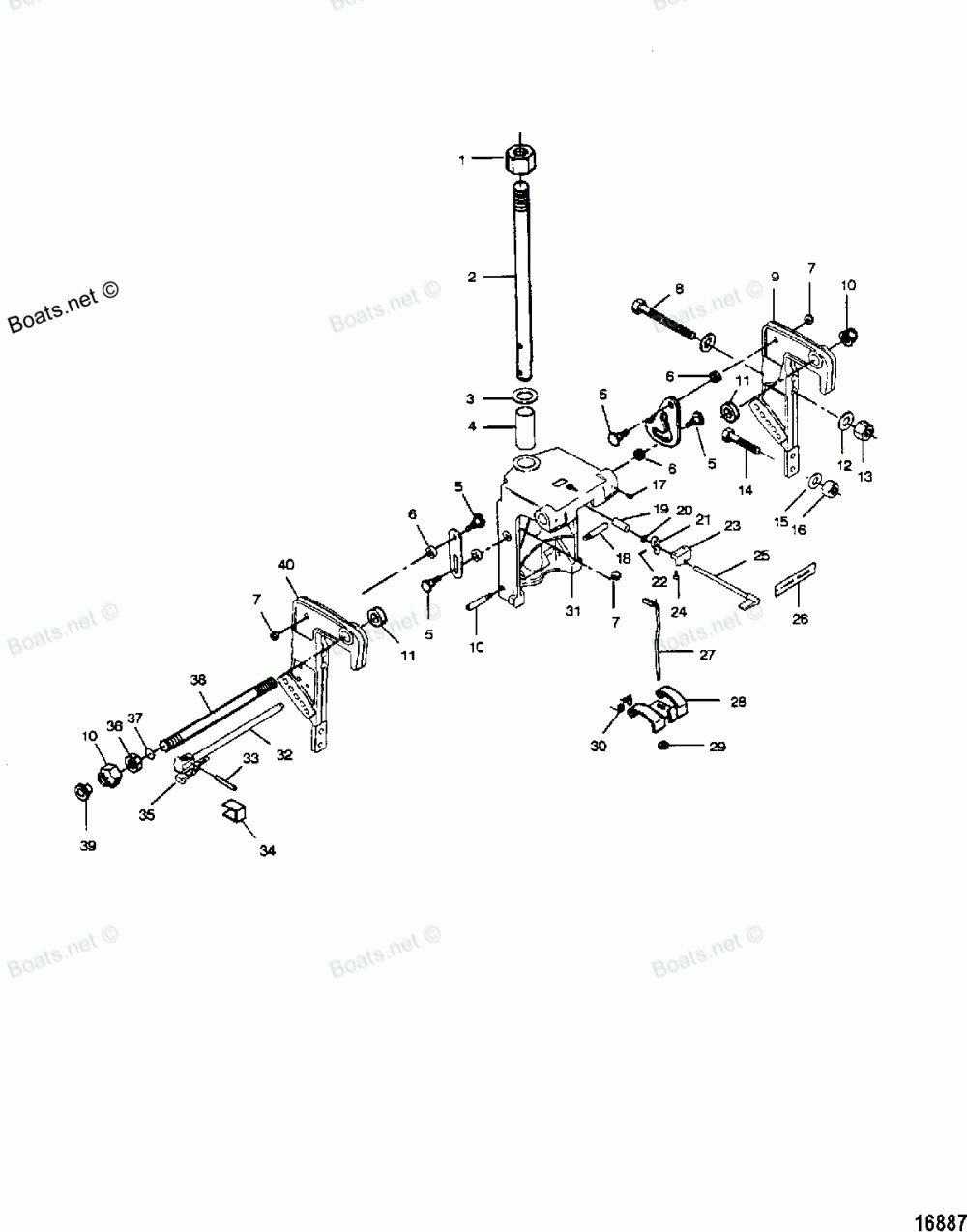

Swivel Bracket And Stern Brackets
Swivel Bracket And Stern Brackets

Swivel Bracket And Stern Brackets

Force H0357C89A

oem код

название

цена

F84280

NUT, Kingpin

F433019-1

KING PIN

F89011

WASHER, Swivel Bracket

F191169-1

BEARING, Swivel Bracket

Втулка оси

Проставка

STOP NUT

BOLT, Long Mounting

BRACKET, Port Stern

PLASTIC CAP

WASHER, Friction

Шайба

NUT (.500-20)

SCREW, Hex Head (.375-16 x 3.50)

Шайба

NUT (.375-16)

Фитинг

Штифт

BEARING, Reverse Lock Shaft - Rear

Застежка

ARM, Reverse Lock

Пружинный Штифт

BEARING, Reverse Lock Shaft - Front

F1733

SCREW (#10-24 x .5625)

F366827-2

HANDLE, End Shaft With Fasteners and Rear Bearing

DECAL, Tilt Lock

LINK, Reverse Lock

LOCK, Reverse

NUT, (#6-32)

SPRING, Reverse Lock

BRACKET, Swivel

LOCK BAR W/HANDLE

Пружинный Штифт

SPRING, Lock Bar Handle

HANDLE, Lock Bar

Гайка

SEAL, Pivot Tube

TUBE, Pivot

PLASTIC PLUG

BRACKET, Starboard Stern

F366426

STOP, Port

F366433

STOP, Starboard
