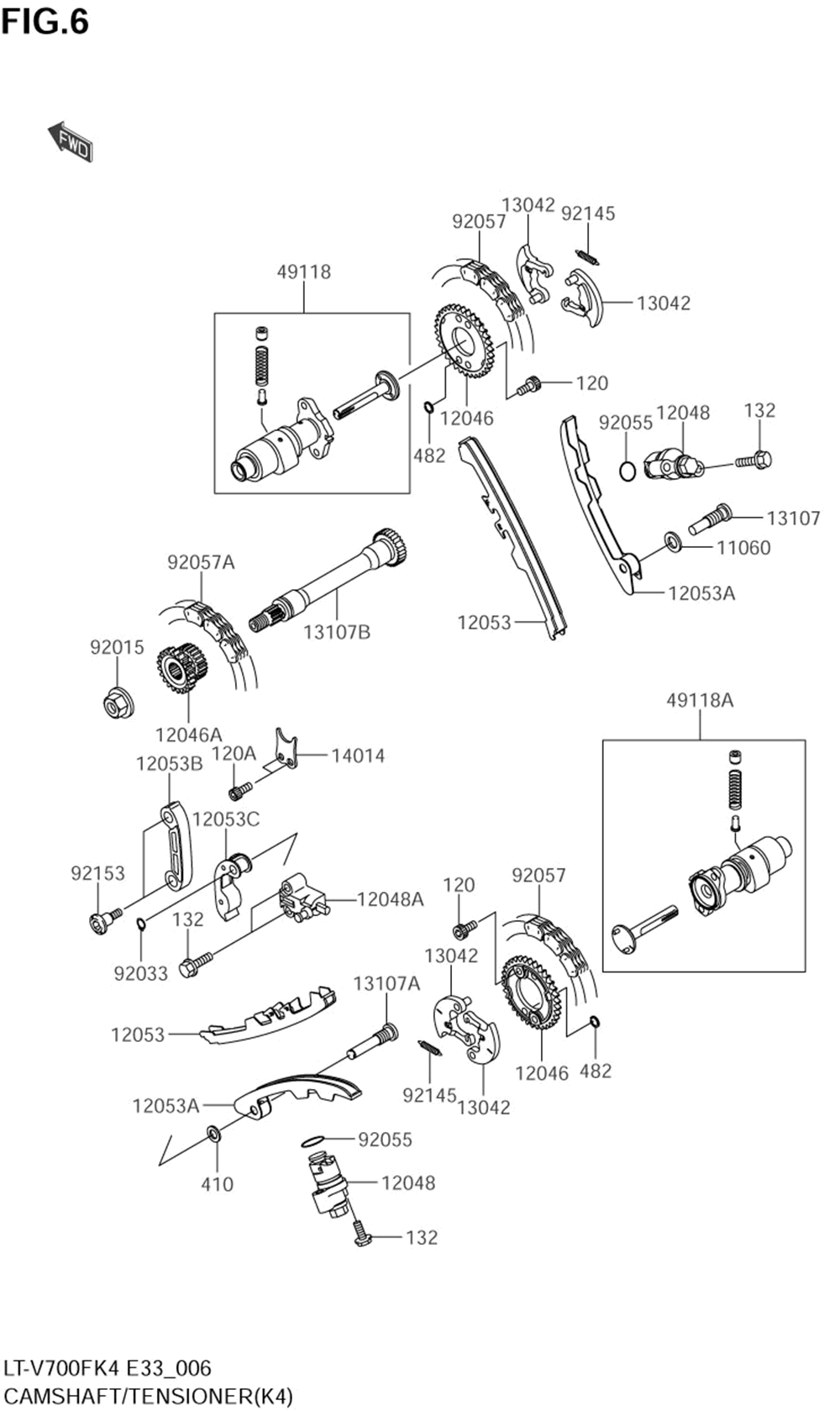

Camshaft/tensioner(k4)

Suzuki LT-V700F Twin Peaks 4x4
Suzuki
#oem кодцена
11060
K1106-01966
Прокладка
12046
K1204-61203
Sprocket, Camshaft, 34t
12046A
K1204-61207
Sprocket, 2nd Shaft, 21t&17t
12048
K1204-81176
Tensioner-assy, Cam
12048A
K1204-81177
Tensioner-assy, Secondary
12053
K1205-31441
Guide-chain, Camshaft, Tension
12053A
K1205-31442
Guide-chain, Camshaft, Slack
12053B
K1205-31443
Guide-chain, Tension
12053C
K1205-31444
Guide-chain, Slack
13042
K1304-21141
Кулачок
13107
K1310-71443
Shaft, Chain Guide, Fr
13107A
K1310-71444
Shaft, Chain Guide, Rr
13107B
K1310-71514
Вторичный вал
14014
K1401-41148
Plate-position, Drive
49118
K4911-81193
Camshaft-comp, Fr
49118A
K4911-81194
Camshaft-comp, Rr
92015
K9201-51433
Nut, Flanged, 12mm
92033
K9203-31039
Ring-snap, 8mm
92055
KK920-55086
Ring-o, 18.8x1.9
92057
K9205-71487
Chain, Cam Shaft
92057A
K9205-71488
Chain, Secondary Shaft
92145
K9214-51303
Пружинка
92153
K9215-31200
Болт
120
KK120-P0610
Болт-разъем, 6x10
120A
KK120-S0614
Bolt-socket, 6x14, Black
132
KK132-Y0630
Болт с фланцем
410
KK410-B0800
Washer-plain-small, 8mm
482
KK482-J5000
Circlip-type-e
132
K132B-D0630
Bolt-flanged-sm
