Карбюратор в разборе Запчасти для квадроциклов ATV Suzuki LT-V700F Twin Peaks 4x4 (2004)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

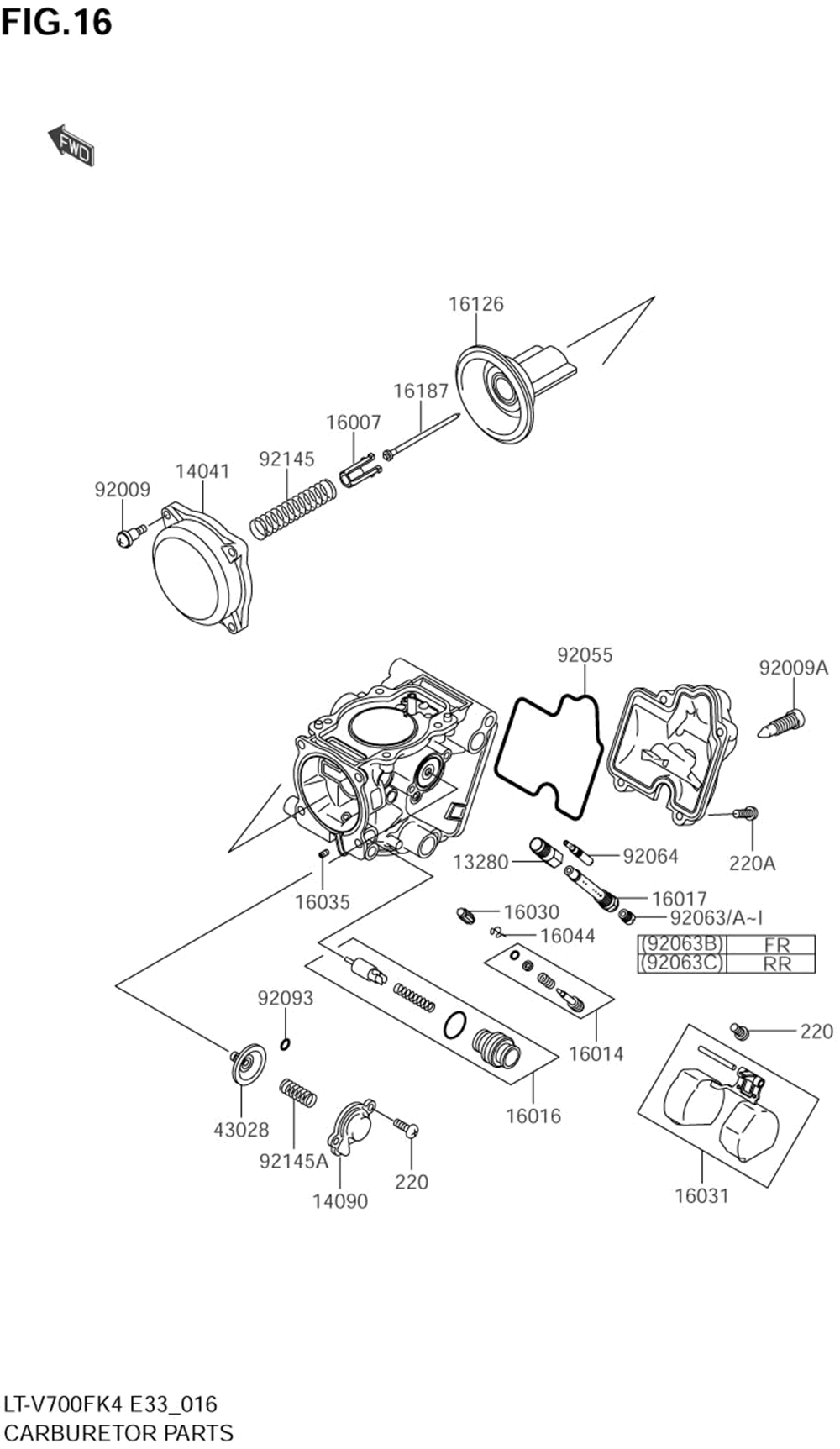

Карбюратор в разборе

Suzuki LT-V700F Twin Peaks 4x4

Карбюратор в разборе

#

oem код

название

цена

13280

Holder, Jet

Holder, Jet

14041

Cap-chamber, Mixing

Cap-chamber, Mixing

14090

Cover, Air Cut Valve

Cover, Air Cut Valve

16007

Seat-spring, Throttle Valve

Seat-spring, Throttle Valve

16014

Screw-pilot Air

Screw-pilot Air

16016

Плунжер

Плунжер

16017

Jet-needle

Jet-needle

16030

Игла запорная

Игла запорная

16031

Поплавок

Поплавок

16035

Jet-air, Leak

Jet-air, Leak

16044

Clamp, Float Valve

Clamp, Float Valve

16126

Valve, Vacuum

Valve, Vacuum

16187

Needle-jet

Needle-jet

43028

Diaphragm, Air Cut Valve

Diaphragm, Air Cut Valve

92009

Screw, 4x4.4

Screw, 4x4.4

92009A

Screw, Drain, 6x0.75

Screw, Drain, 6x0.75

92055

Ring-o, Float Chamber

Ring-o, Float Chamber

92063

Jet-main, #140

Jet-main, #140

92063A

Jet-main, #135

Jet-main, #135

92063B

Jet-main, #138

Jet-main, #138

92063C

Jet-main, #142

Jet-main, #142

92063D

Jet-main, #145

Jet-main, #145

92063E

Jet-main, #125

Jet-main, #125

92063F

Jet-main, #128

Jet-main, #128

92063G

Jet-main, #130

Jet-main, #130

92063H

Jet-main, #132

Jet-main, #132

92063I

Jet-main, #148

Jet-main, #148

92064

Jet-pilot, #40

Jet-pilot, #40

92093

Seal, "u"ring

Seal, "u"ring

92145

Spring, Vacuum Valve

Spring, Vacuum Valve

92145A

Spring, Air Cut Valve

Spring, Air Cut Valve

220

Screw-pan-cros, 4x8

Screw-pan-cros, 4x8

220A

Винт

Винт

220

Винт

Винт
