Передний привод Запчасти для квадроциклов ATV Suzuki LT-V700F Twin Peaks 4x4 (2004)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

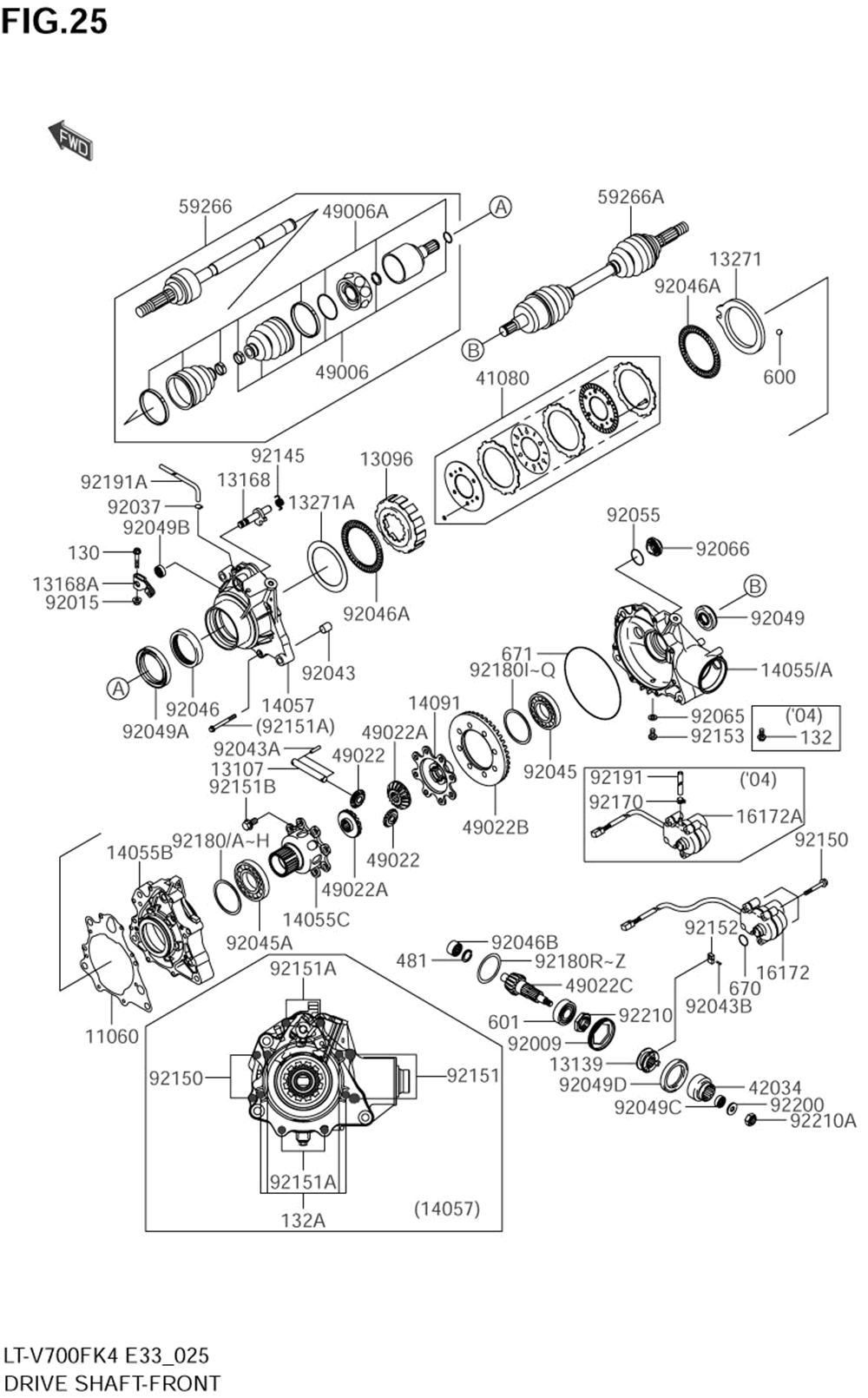

Передний привод

Suzuki LT-V700F Twin Peaks 4x4

Передний привод

#

oem код

название

цена

11060

Gasket, Diff Case

Gasket, Diff Case

13096

Housing-clutch, Disc

Housing-clutch, Disc

13107

Shaft, Cross

Shaft, Cross

13139

Shifter, Differential

Shifter, Differential

13168

Lever, Diff

Lever, Diff

13168A

Lever, Differential

Lever, Differential

13271

Plate, Cam

Plate, Cam

13271A

Plate, Disc

Plate, Disc

14055A

Case-gear, Differential, Rh

Case-gear, Differential, Rh

14055B

Case-gear, Center

Case-gear, Center

14055C

Case-gear, Bevel, Lh

Case-gear, Bevel, Lh

14057

Case-comp-gear, Diff, Lh

Case-comp-gear, Diff, Lh

14091

Cover, Bevel, Rh

Cover, Bevel, Rh

16172

Actuator

Actuator

41080

Disc Assy, Differential Lock

Disc Assy, Differential Lock

42034

Coupling, Bevel

Coupling, Bevel

49006

Boot, Doj

Boot, Doj

49006A

Boot, Bj

Boot, Bj

49022

Gear-bevel, 10t

Gear-bevel, 10t

49022A

Gear-bevel, 16t

Gear-bevel, 16t

49022B

Gear-bevel, 35t

Gear-bevel, 35t

49022C

Gear-bevel, 8t

Gear-bevel, 8t

59266

Joint-ball, Lh

Joint-ball, Lh

59266A

Joint-ball, Rh

Joint-ball, Rh

92009

Screw, 64mm

Screw, 64mm

92015

Гайка 6мм

Гайка 6мм

92037

Хомут

Хомут

92043

Pin, 6.2x8x14

Pin, 6.2x8x14

92043A

Штифт

Штифт

92043B

Pin, 2x9.8

Pin, 2x9.8

92045

Bearing-ball, 60/32

Bearing-ball, 60/32

92045A

Bearing-ball, 6910

Bearing-ball, 6910

92046

Подшипник

Подшипник

92046A

Bearing-needle, Ak1116

Bearing-needle, Ak1116

92046B

Bearing-needle, Aj501515w

Bearing-needle, Aj501515w

92049

Seal-oil, Sdd7 22x48x7hs

Seal-oil, Sdd7 22x48x7hs

92049A

Seal-oil, Htcy 62x81x10.5

Seal-oil, Htcy 62x81x10.5

92049B

Seal-oil, Tc 12x22x7

Seal-oil, Tc 12x22x7

92049C

Seal-oil, Kb 13x19x13

Seal-oil, Kb 13x19x13

92049D

Seal-oil, Tcy 48x65x8

Seal-oil, Tcy 48x65x8

92055

Ring-o, 25.7x2.4

Ring-o, 25.7x2.4

92065

Прокладка

Прокладка

92066

Заглушка

Заглушка

92145

Spring, Diff Return

Spring, Diff Return

92150

Bolt, 6x45

Bolt, 6x45

92151

Bolt, 8x50

Bolt, 8x50

92151A

Bolt, 6x60

Bolt, 6x60

92151B

Bolt, 10x19.5

Bolt, 10x19.5

92152

Втулка

Втулка

92170

Зажим

Зажим

92180

Shim, 62x71x0.15

Shim, 62x71x0.15

92180A

Shim, 62x71x0.20

Shim, 62x71x0.20

92180B

Shim, 62x71x0.50

Shim, 62x71x0.50

92180C

Shim, 62x71x0.70

Shim, 62x71x0.70

92180D

Shim, 62x71x0.80

Shim, 62x71x0.80

92180E

Shim, 62x71x0.90

Shim, 62x71x0.90

92180F

Shim, 62x71x1.00

Shim, 62x71x1.00

92180G

Shim, 62x71x1.10

Shim, 62x71x1.10

92180H

Shim, 62x71x1.20

Shim, 62x71x1.20

92180I

Shim, 32x42x0.15

Shim, 32x42x0.15

92180J

Shim, 32x42x0.20

Shim, 32x42x0.20

92180K

Shim, 32x42x0.50

Shim, 32x42x0.50

92180L

Shim, 32x42x0.70

Shim, 32x42x0.70

92180M

Shim, 32x42x0.80

Shim, 32x42x0.80

92180N

Shim, 32x42x0.90

Shim, 32x42x0.90

92180O

Shim, 32x42x1.00

Shim, 32x42x1.00

92180P

Shim, 32x42x1.10

Shim, 32x42x1.10

92180Q

Shim, 32x42x1.20

Shim, 32x42x1.20

92180R

Shim, 50x61x0.15

Shim, 50x61x0.15

92180S

Shim, 50x61x0.20

Shim, 50x61x0.20

92180T

Shim, 50x61x0.50

Shim, 50x61x0.50

92180U

Shim, 50x61x0.70

Shim, 50x61x0.70

92180V

Shim, 50x61x0.80

Shim, 50x61x0.80

92180W

Shim, 50x61x0.90

Shim, 50x61x0.90

92180X

Shim, 50x61x1.00

Shim, 50x61x1.00

92180Y

Shim, 50x61x1.10

Shim, 50x61x1.10

92180Z

Shim, 50x61x1.20

Shim, 50x61x1.20

92191

Tube, 4.7x9.5x800

Tube, 4.7x9.5x800

92191A

Трубка

Трубка

92200

Washer, 10x24x2.5

Washer, 10x24x2.5

92210

Nut, 25mm

Nut, 25mm

92210A

Nut, Lock, 10mm

Nut, Lock, 10mm

130

Bolt-flanged, 6x35

Bolt-flanged, 6x35

132

Bolt-flanged-small, 8x16

Bolt-flanged-small, 8x16

132A

Болт с фланцем

Болт с фланцем

481

Circlip-type-c, 25mm

Circlip-type-c, 25mm

600

Ball-steel, 11/32"

Ball-steel, 11/32"

601

Bearing-ball, #6305

Bearing-ball, #6305

670

Кольцо

Кольцо

671

Кольцо

Кольцо

49022C

Gear, Bevel, 8t

Gear, Bevel, 8t

59266A

Joint, Ball, Rh

Joint, Ball, Rh

132A

Bolt-flanged-sm

Bolt-flanged-sm
