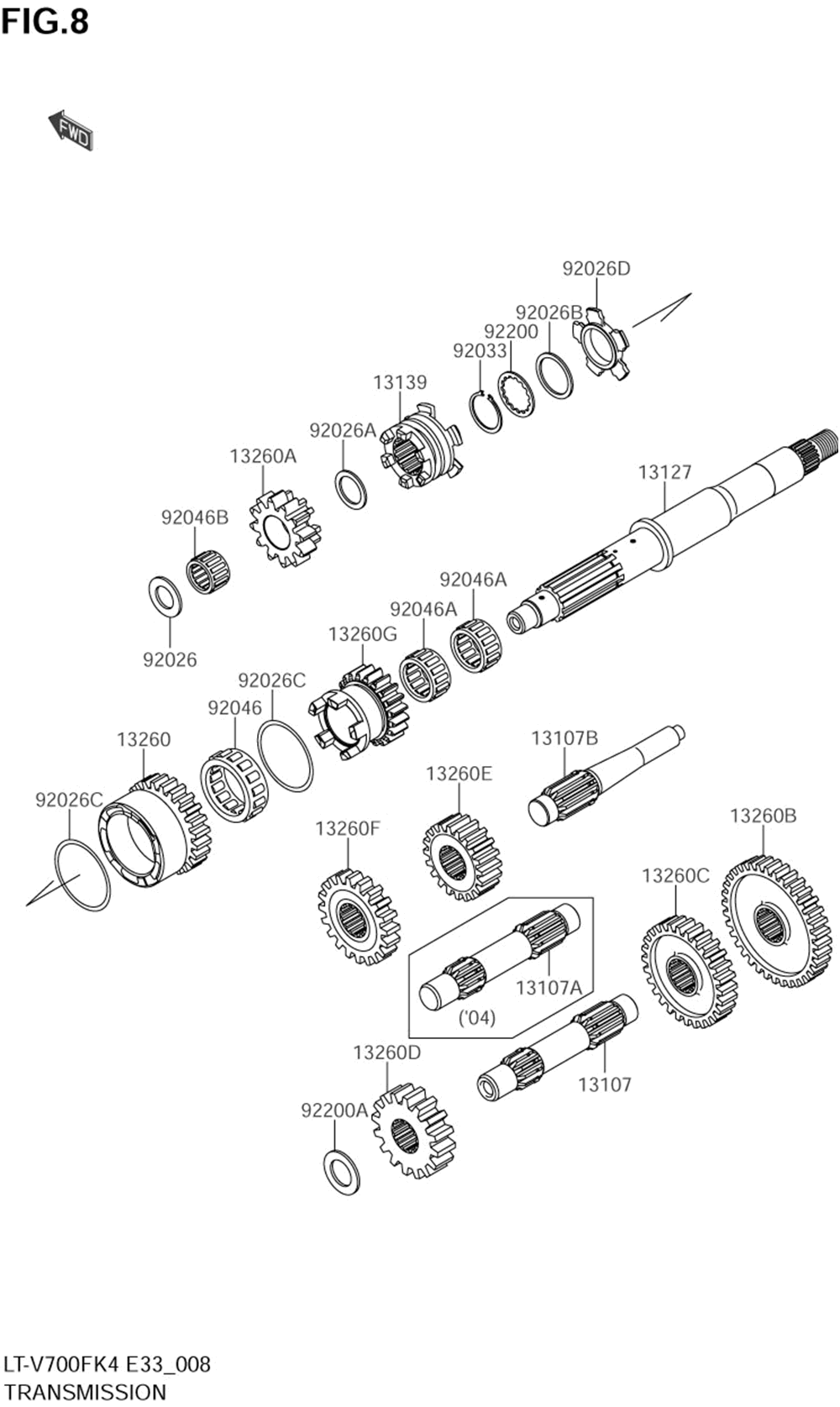

ТРАНСМИССИЯ

Suzuki LT-V700F Twin Peaks 4x4
Suzuki
#oem кодцена
13107
K1310-70030
Shaft, Counter
13107A
K1310-71436
Shaft, Counter
13107B
K1310-71437
Shaft, Reverse, Idle
13127
K1312-71282
Shaft-transmission Input
13139
K1313-90003
Рычаг переключения
13260
K1326-01867
Gear, Input High, 26t
13260A
K1326-20234
Gear, Input Low,
13260B
K1326-01869
Gear, Driven Low, 36t
13260C
K1326-01870
Gear, Driven High, 30t
13260D
K1326-01871
Gear, Output Drive, 18t
13260E
K1326-01872
Gear, Output Reverse, 16t
13260F
K1326-01873
Gear, Driven Reverse, 16t
13260G
K1326-20235
Gear, Input Reve
92026
K9202-61415
Spacer, 17.3x30x2.0
92026A
K9202-61568
Spacer, 21.2x29x1.6
92026B
K9202-61587
Spacer, 28.2x34.5x1.6
92026C
K9202-61599
Spacer, 48.2x54.3x1.0
92026D
K9202-61600
Spacer, Hi&low
92033
K9203-31037
Ring-snap, T=1.2
92046
K9204-61276
Bearing-needle, High Gear
92046A
K9204-61278
Bearing-needle, Low Gear
92046B
K9204-61279
Bearing-needle, Reverse Gear
92200
K9220-01240
Washer, 28.5x34.0x1.5
92200A
K9220-01351
Washer, 20.3x33x2.0
