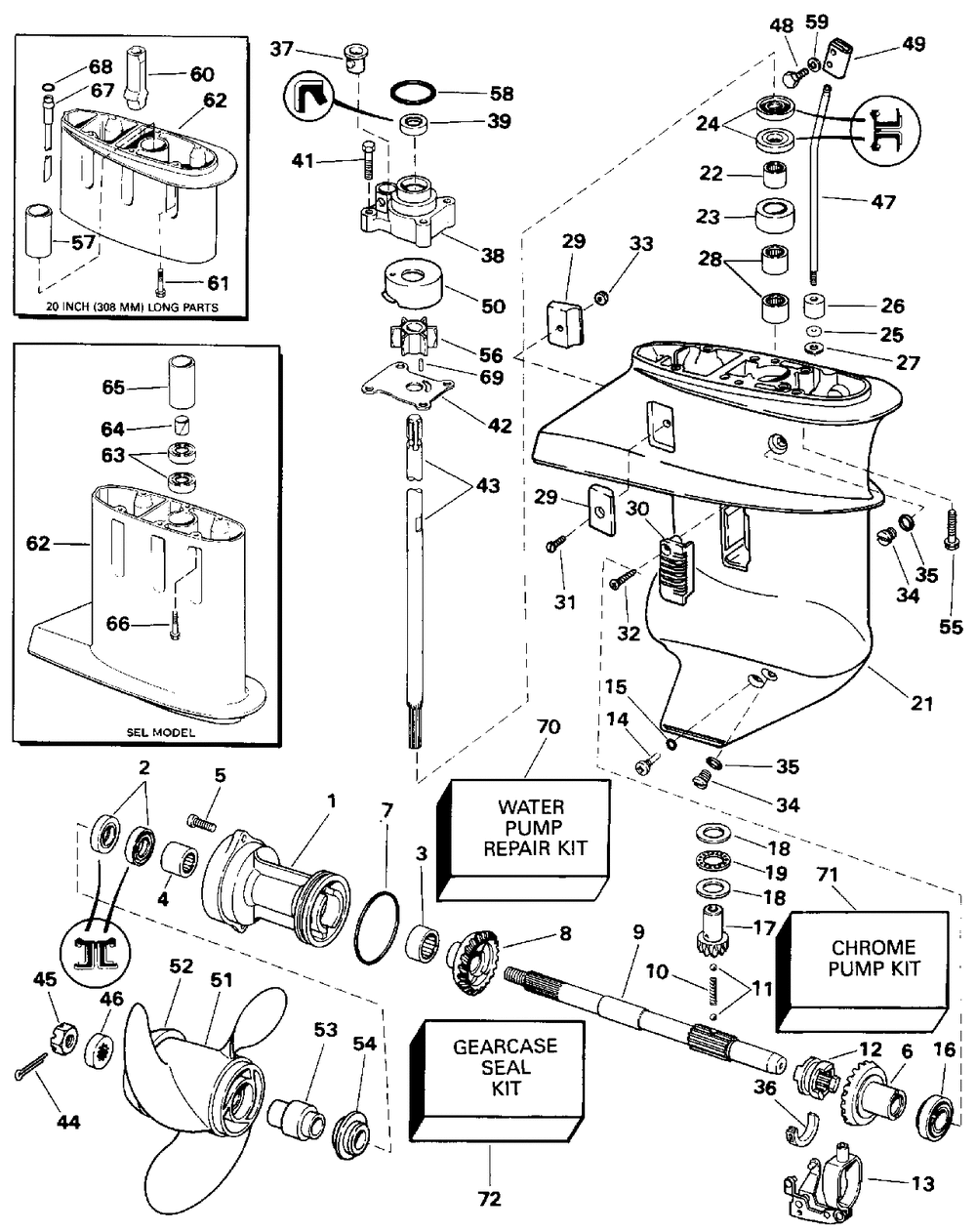

Редуктор

Evinrude E15ELETB
Evinrude
#oem кодцена
1
0437774
Корпус
2
0321481
Oil Ret 5 Pk
3
0386125
Подшипник
4
0386231
Подшипник
5
0308743
Винт
6
0394823
Шестерня -задний ход
7
0308627
Кольцо
8
0330201
Шестерня -обратный ход
9
0438578
Вал гребной
10
0316505
Пружина
11
0316506
Шарик фиксирующий
12
0325263
Муфта переключения скоростей
13
0388416
Shift Lvr&yoke Ay
14
0308376
Винт
15
0332584
Шайба
16
0386186
Roller Brg Ay
17
0338190
Gear, Pinion
18
0336296
Шайба
19
0388000
Thrust Brg Ay-pin
21
0438617
G-case Ay, Less D/s
22
0386014
Подшипник
23
0318874
Гильца
24
0321480
Сальник
25
0301877
Кольцо
26
0304765
Втулка
27
0321738
Шайба
28
0386071
Подшипник
29
0338635
Анод
30
0338443
Водозаборная решетка
31
0304013
Винт
32
0325539
Винт
33
0121470
Гайка
34
0307551
Пробка сливная
35
0311598
Washer-10 Pk
36
0325014
Зажим
37
0327035
Grommet ( Also Included In Water Pump Repair Kit 394711 15 Inch (231mm))
37
0302497
Grommet ( Also Included In Water Pump Repair Kit 394711 20 Inch (308mm) & Sel Models)
38
0435390
Hsg&seal Ay, Implr ( Also Included In Water Pump Repair Kit 394711)
39
0318972
Seal ( Also Included In Water Pump Repair Kits 391698 And 394711)
41
0302325
Screw ( Also Included In Water Pump Repair Kit 394711)
42
0318995
Plate-imp Hsg ( Also Included In Water Pump Repair Kit 394711)
43
0341590
Driveshaft, 15"
43
0341591
Driveshaft, 20" ( 20 Inch (308 Mm) Long Parts)
43
0328299
Driveshaft, 25"-sel ( Sel Models Only)
44
0328522
Cotter Pin 5pk
45
0318971
Гайка гребного винта
46
0323942
Thrust Washer-prop
47
0318992
Shift Rod-lwr
47
0319298
Shift Rod, Lwr 20" ( 20 Inch (308 Mm) Long Parts)
47
0328300
Shift Rod, Lwr-sel ( Sel Models Only)
48
0304024
Screw ( 20 Inch (308 Mm) Long Parts)
49
0303794
Connector, Shft Rod ( 20 Inch (308 Mm) Long Parts)
50
0324097
Cup-impeller Hsg ( Also Included In Water Pump Repair Kit 394711)
50
0323535
Обойма помпы-хром
51
0778772
Prop, Al 9.25x10 ( Refer To Omc Systematched Parts & Accessories Catalog For Propeller Chart.)
51
0763456
Prop, Al 9.25 X 7 ( Refer To Omc Systematched Parts & Accessories Catalog For Propeller Chart.)
51
0175323
( Refer To Omc Systematched Parts & Accessories Catalog For Propeller Chart.)
52
0332395
Converging Ring
53
0386119
54
0334590
Thrust Bushing
55
0324334
Screw, 5 Pk
56
0386084
Impeller Ay ( Also Included In Water Pump Repair Kit 394711)
57
0319340
Extension ( 20 Inch (308 Mm) Long Parts)
58
0319085
Seal-imp Hsg 5pk ( Also Included In Water Pump Repair Kit 394711 20 Inch (308 Mm) Long Parts)
59
0301551
Lockwasher ( 20 Inch (308 Mm) Long Parts)
60
0326922
Exhaust Seal ( 20 Inch (308 Mm) Long Parts)
61
0324334
Screw, 5 Pk ( 20 Inch (308 Mm) Long Parts)
62
0331152
G-case Extension ( 20 Inch (308 Mm) Long Parts)
62
0395894
( Sel Models Only)
63
0328301
Sleeve ( Sel Models Only)
64
0328302
Bushing ( Sel Models Only)
65
0319340
Extension ( Sel Models Only)
66
0324334
Screw, 5 Pk ( Sel Models Only)
67
0320025
Extension Wtr Tube ( 20 Inch (308 Mm) Long Parts)
67
0395124
( Sel Models Only)
68
0202893
O-ring ( 20 Inch (308 Mm) Long Parts)
69
0300611
Dowel ( Also Included In Water Pump Repair Kit 394711)
70
0394711
Рем.комплект помпы
71
0394711
Рем.комплект помпы
72
0396350
Комплект сальников редуктора
434135
0434135
( Not Shown 20 Inch (308 Mm) Long Parts)
435712
0438617
G-case Ay, Less D/s ( Not Shown)
