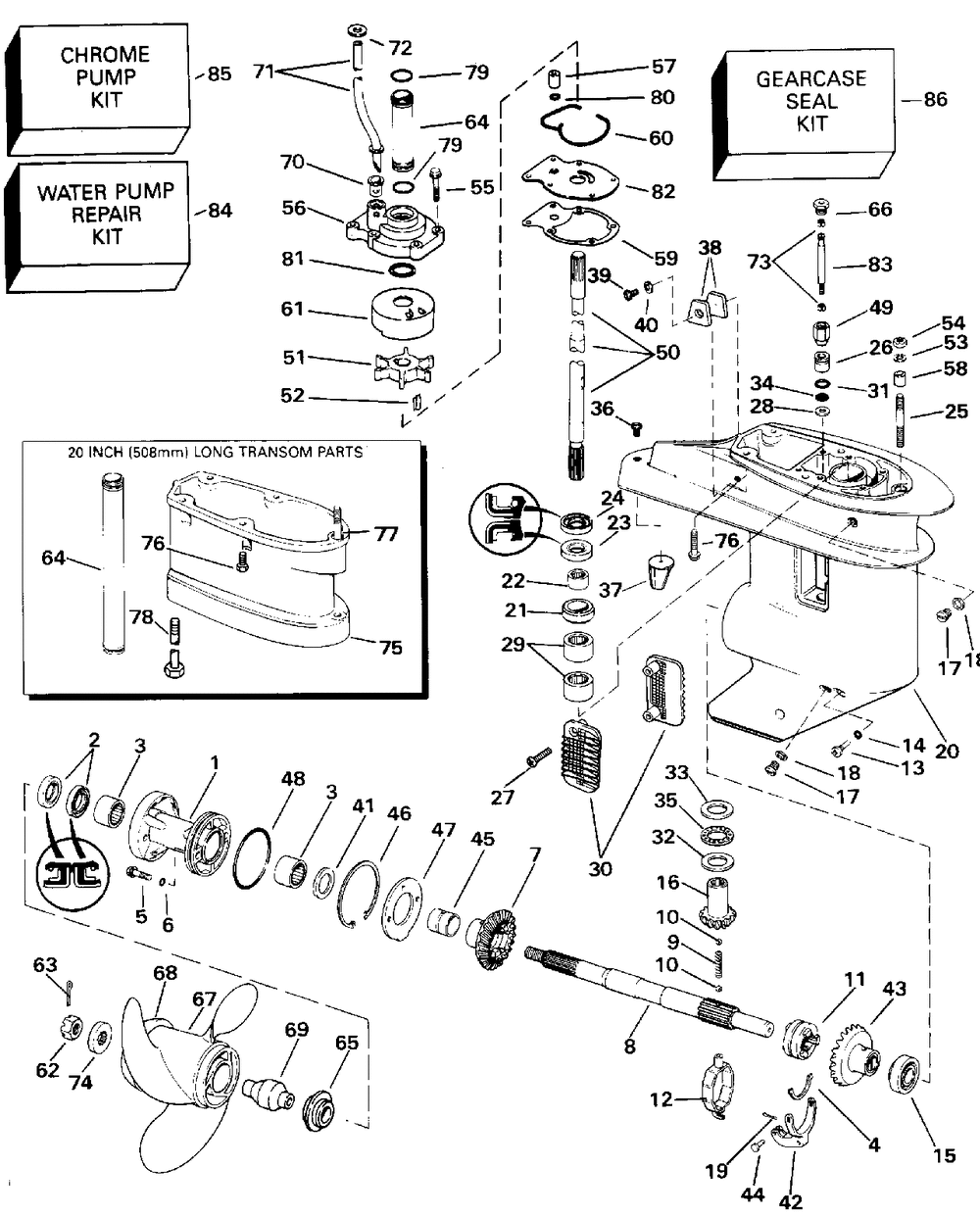

Редуктор

Evinrude E25TEETS
Evinrude
#oem кодцена
1
5008160
Корпус
2
0321453
Сальник
3
0376856
Brg Ay, Needle
4
0328311
Зажим
5
0319743
Sst Screw
6
0332584
Шайба
7
0327655
Gear, Rev 13:28
8
0439143
Вал гребново винта
9
0327070
Пружина
10
0316506
Шарик фиксирующий
11
0337020
Рычаг переключения
12
0390023
Yoke & Connector
13
0308376
Винт
14
0332584
Шайба
15
0386186
Roller Brg Ay
16
0328313
Pinion, Gear
17
0307551
Пробка сливная
18
0311598
Washer-10 Pk
19
0303049
Шплинт
20
0434030
Kit, G-case Hsg ( Does Not Include Driveshaft)
21
0322018
Bearing Hsg Dshaft
22
0386473
Подшипник
23
0321928
Oil Ret Brg Hsg Ds
24
0332261
Oil Retainer
25
0320173
Ff Stud
26
0326361
Втулка
27
0325539
Винт
28
0321738
Шайба
29
0376856
Brg Ay, Needle
30
0336206
Screen, Water Inlet
31
0303347
Кольцо
32
0330441
Упорная шайба
33
0327716
Thrust Washer-upr
34
0301877
Кольцо
35
0388027
Thrust Brg Ay
36
0329217
Винт
37
5008161
Kit Ay, Trim Tab
38
5007582
Kit Ay, Anode
39
0332226
Винт
40
0304454
Стопорная шайба
41
0319684
Ff Thrust Washer
42
0337019
Рычаг
43
0392475
Gear & Bushing, Fwd
44
0302504
Штифт
45
0319635
Ff Bushing Rev Gr
46
0319747
Ff Retaining Ring
47
0319746
Ff Retainer Plate
48
0338518
Уплотнительное кольцо
49
0331465
Nut, Shift Connctr
50
0341636
Driveshaft, 15"
50
0341637
Driveshaft, 20" ( 20 Inch (508mm) Long Parts)
51
0395289
Imp & Key ( Also Included In Water Pump Repair Kit 393630)
52
0344470
Key, Impeller-blk ( Also Included In Water Pump Repair Kit 393630)
53
0301250
Шайба
53
0306470
Lockwasher ( 20 Inch (508mm) Long Parts)
54
0306422
Nut ( 20 Inch (508mm) Long Parts)
55
0328725
Screw ( Also Included In Water Pump Repair Kit 393630)
56
0393632
Imp Hsg & Bush Ay
57
0328754
Втулка
58
0319785
Bushing ( 20 Inch (508mm) Long Parts)
59
0325537
Gasket ( Also Included In Water Pump Repair Kits 393630 & 393509)
60
0328753
Seal ( Also Included In Water Pump Repair Kits 393630 & 393509)
61
0328751
Cup, Imp Hsg ( Also Included In Water Pump Repair Kit 393630)
62
0319891
Ff Prop Nut
63
0320785
Ff Cotter Pin 5pk
64
0326692
64
0326693
Spacer, Long ( 20 Inch (508mm) Long Parts)
65
0335420
Bushing, Thrust
66
0325624
Connctr, Shft Rod
67
0387320
Al Prop 35hp 7p
67
0391064
Prop, Al 10x17
67
0765049
Prop, Al 10.5x11 Rh
67
0778863
Prop, Al/10.3x13
67
0765048
Prop, Al 11 X 9 Rh
67
0765176
Prop, Ss-10x11 3bld
67
0390727
67
0763486
Prop, Al 10 X 15
67
0765178
Prop, Sst 10x13
67
0765180
Prop Ay, Ss-10x15-3
67
0390731
68
0332542
Converging Ring
69
0392881
Bushing Ay
69
0386638
70
0302497
Grommet ( Also Included In Water Pump Repair Kit 393630)
71
0395339
Wtr Tube Ay
71
0395340
Wtr Tube Ay ( 20 Inch (508mm) Long Parts)
72
0330658
Washer ( 20 Inch (508mm) Long Parts)
73
0325625
Keeper
74
0323943
Spacer Prop Nut
75
0392967
Ext, Stud & Screw ( 20 Inch (508mm) Long Parts)
76
0328333
Винт
76
0339823
Screw ( 20 Inch (508mm) Long Parts)
77
0320173
Ff Stud ( 20 Inch (508mm) Long Parts)
78
0305283
Screw, G/c Extn ( 20 Inch (508mm) Long Parts)
79
0311338
O Ring ( Also Included In Water Pump Repair Kit 393630 20 Inch (508mm) Long Parts)
80
0301877
O Ring ( Also Included In Water Pump Repair Kit 393630)
81
0554545
O Ring ( Also Included In Water Pump Repair Kits 393630 & 393509)
82
0328755
Plate ( Also Included In Water Pump Repair Kit 393630)
83
0331479
Shift Rod-lower
84
0393630
Wtr Pump Kit
85
0394415
86
0396351
Комплект сальников редуктора
325541
0325541
Shift Rod-lng ( Not Shown 20 Inch (508mm) Long Parts)
325974
0325974
Rubber Mount ( Not Shown 20 Inch (508mm) Long Parts)
325975
0325975
Rubber Mount ( Not Shown 20 Inch (508mm) Long Parts)
396707
0396707
Kit, G-case Extn ( Not Shown 20 Inch (508mm) Long Parts)
434763
0434763
Gearcase Ay, Compl ( Does Not Include Driveshaft Not Shown)
