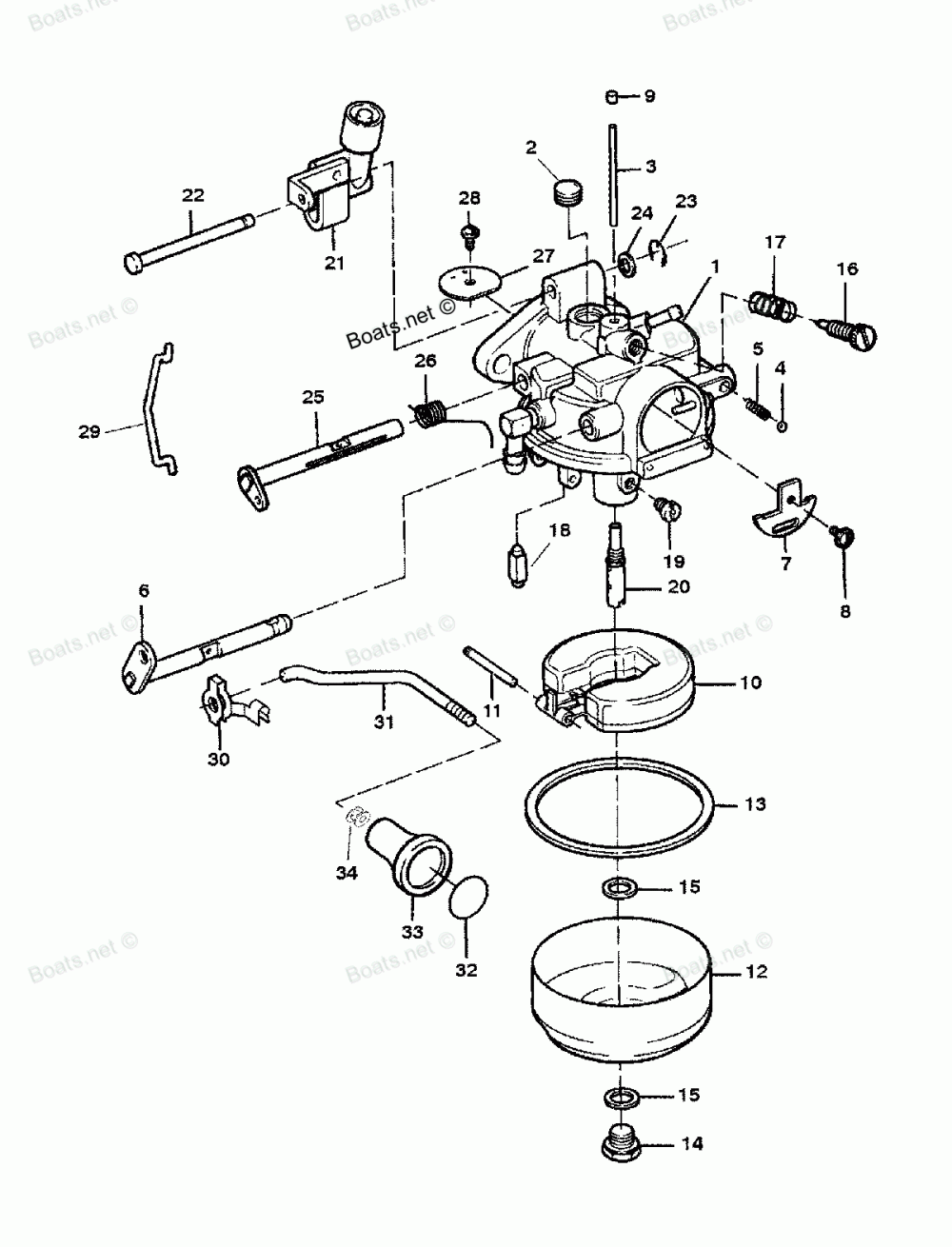

Карбюратор

Force H0092S88A
Force
#oem кодцена
1
F714061
CARBURETOR (HO-5A)
2
FO2531
PLUG-BY PASS CHAMBER
3
F10235
TUBE-BY PASS
4
FO4784
BALL-CHOKE FRICTION
5
FO8805
SPRING-CHOKE FRICTION
6
FO15736
SHAFT-CHOKE
7
F10236
SHUTTER-CHOKE
8
FO10280
SCREW-SHUTTER
9
FO10588
PLUG-BODY CHANNEL
10
F10346
FLOAT-FUEL BOWL
11
FO13944
PIN-FLOAT
12
FO15366
BOWL-FUEL
13
FO15623
GASKET-FUEL BOWL
14
5128
SCREW-FUEL BOWL
15
FO2510
GASKET-FUEL BOWL
16
FO15520
NEEDLE-IDLE MIXTURE
17
27160
SPRING-IDLE MIXTURE NEEDLE
18
F10265
NEEDLE-INLET
19
1457
JET-MAIN (.057) (0 - 2500 )
19
1655
JET-MAIN (.055) (2500 - 5000 )
19
1653
JET-MAIN (.053) (5000 - 7500 )
19
FO11764
JET-MAIN (.051) (7500 - 10000 )
20
F10238
Жиклер главный
21
F10290
LINKAGE-THROTTLE CAM FOLLOWER
22
F10240
SHAFT-LINKAGE
23
F10241
E RING-LINKAGE SHAFT
24
F10242
WASHER-LINKAGE SHAFT
25
F10339
SHAFT-THROTTLE
26
F10246
SPRING-THROTTLE SHAFT
27
F10354
SHUTTER-THROTTLE
28
F10328
SCREW-SHUTTER
29
F10338
LINK-THROTTLE
30
F341384
RETAINER-CHOKE ROD
31
819348
ROD-CHOKE
32
F681677
INSERT-CHOKE KNOB
33
F286547
KNOB-CHOKE
34
F197319
BUSHING-CHOKE ROD
NS
FK10295
REPAIR KIT-CARBURETOR
NS
FK10294
GASKET SET-CARB
