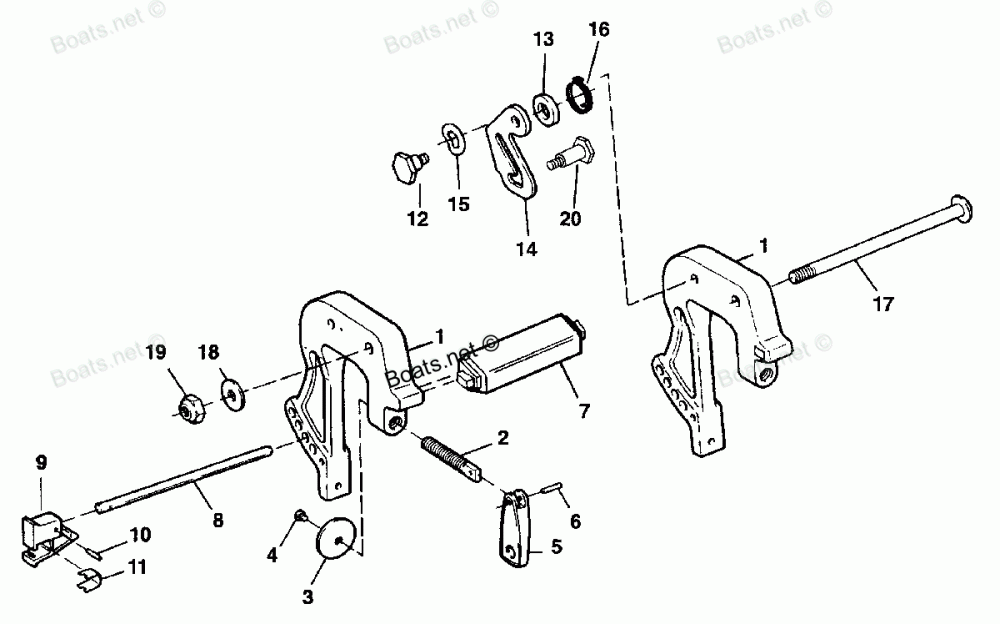

Clamp Brackets (serial # 0e143888 And Up)
Clamp Brackets (serial # 0e143888 And Up)

Clamp Brackets (serial # 0e143888 And Up)

Force H0092S88A

Clamp Brackets (serial # 0e143888 And Up)

#

oem код

название

цена

1

BRACKET-STERN (PAINTED)

BRACKET-STERN (PAINTED)

2

SCREW-STERN BRACKET (SPECIAL)

SCREW-STERN BRACKET (SPECIAL)

3

FOOT-STERN BRACKET SCREW

FOOT-STERN BRACKET SCREW

4

SCREW (#10-32 x .500)

SCREW (#10-32 x .500)

5

HANDLE (PAINTED)

HANDLE (PAINTED)

6

PIN-ROLL

PIN-ROLL

7

HANDLE-CARRYING

HANDLE-CARRYING

8

BAR KIT-LOCK

BAR KIT-LOCK

9

HANDLE-LOCK BAR

HANDLE-LOCK BAR

10

PIN-ROLL

PIN-ROLL

11

SPRING-LOCK BAR HANDLE

SPRING-LOCK BAR HANDLE

12

SCRW-TILT LOCK (.312-18 SPECIAL)

SCRW-TILT LOCK (.312-18 SPECIAL)

13

SPACER-TILT LOCK

SPACER-TILT LOCK

14

LOCK-TILT

LOCK-TILT

15

WASHER-WAVE

WASHER-WAVE

16

SPRING-TILT LOCK

SPRING-TILT LOCK

17

BOLT-STERN BRACKET PIVOT (.375-16 x 6.880)

BOLT-STERN BRACKET PIVOT (.375-16 x 6.880)

18

Шайба

Шайба

19

NUT (.375-16)

NUT (.375-16)

20

PIN-TILT LOCK (.250-20)

PIN-TILT LOCK (.250-20)
