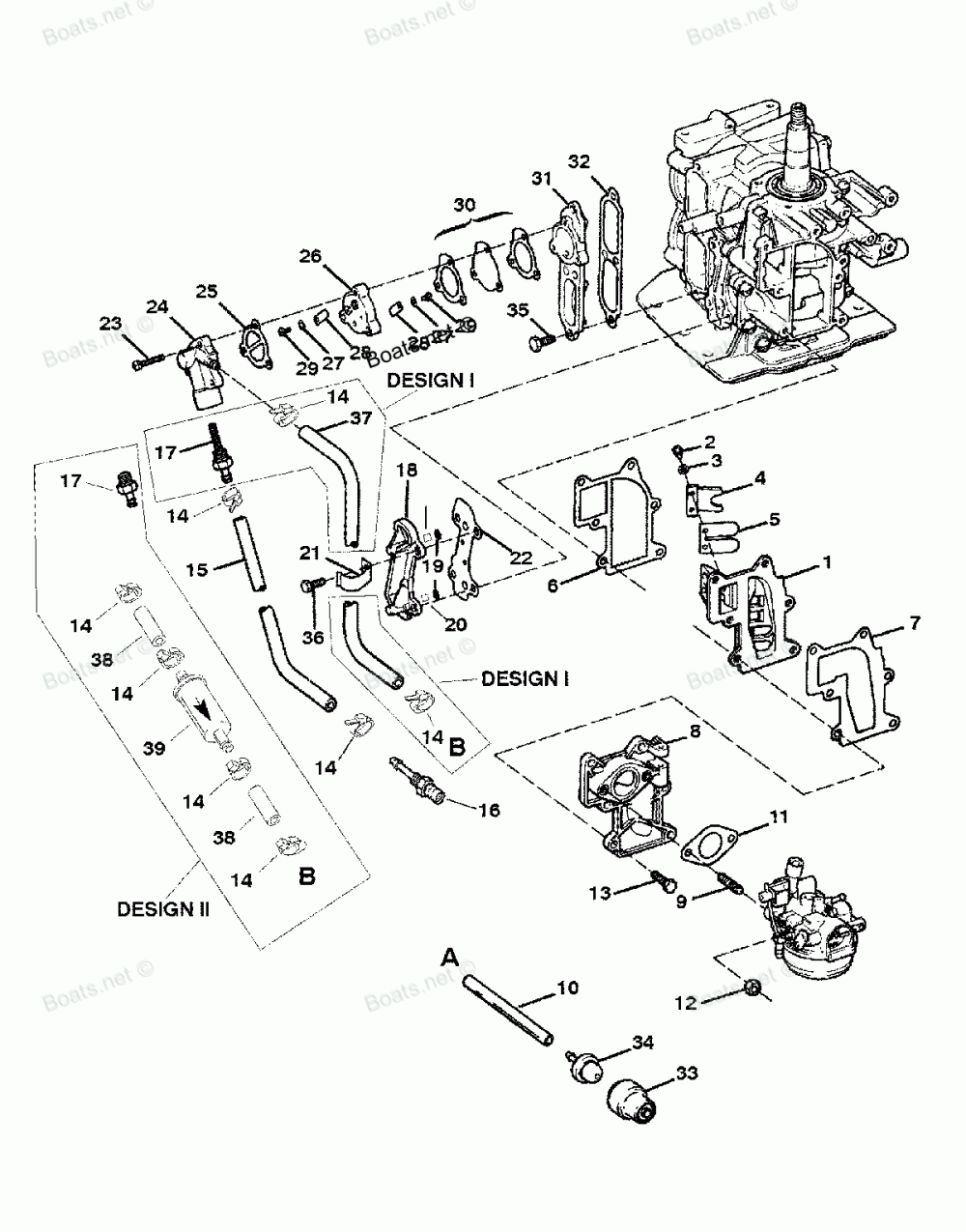

Fuel And Recirculation System

Force H0092S88A
Force
#oem кодцена
1
FA715158
PLATE ASSEMBLY-REED
2
28430
SCREW (6-32 X 1/4")
3
F1704
LOCKWASHER (#6 INTERNAL)
4
F715161
STOP-REED
5
F31160-2
REED
6
F286159-1
GASKET-REED PLATE
7
F715168
GASKET-MANIFOLD
8
FA714167
MANIFOLD KIT-CARBURETOR
9
826622
STUD (1/4-20 X .91") WITH DRI LOC
10
F40253-1
HOSE-PRIMER BULB TO CARB (5-3/4") (CUT AS REQ D)
11
F18906
GASKET-CARBURETOR
12
20890
NUT (1/4-20)
13
28668
SCREW (1/4-20 X 7/8")
14
56762
CABLE TIE (4.00 IN.)
15
F40253-1
HOSE-FUEL (8-1/4") (13.38") (CUT AS REQ D)
16
F197767-2
BUSHING-FUEL
17
F901811
FILTER-FUEL PUMP
17
850314
FITTING-FUEL PUMP (WITH FILTER)
18
FA429471
COVER ASSEMBLY-CYLINDER DRAIN (PAINTED)
19
F429811
Водозаборная решетка
20
817741A1
VALVE KIT
21
F286772-1
Зажим
22
825188
GASKET-CYLINDER DRAIN COVER
23
F1069
SCREW (10-24 X 1-1/16")
24
819993T1
COVER-FUEL PUMP (PAINTED)
25
F24748-2
GASKET-FUEL PUMP
26
F2A24757
PLATE ASSEMBLY-FUEL PUMP
27
18552
Шайба
28
F18160-3
REED
29
F1286
SCREW (4-40 X 3/16")
30
818043A1
GASKET/DIAPHRAGM SET
31
8201162
COVER-TRANSFER PORT
32
825183
GASKET-TRANSFER PORT COVER
33
F681954-1
COVER-PRIMER BULB
34
F681046
BULB-PRIMER
35
98254
SCREW (1/4-20 X 5/8")
36
F1922
SCREW (1/4-20 X 5/8")
37
819398T
HOSE-FUEL (18.00 INCHES BULK)(CUT 8.25 INCHES)
38
819398T
HOSE-FUEL (18.00 INCHES BULK)(CUT 4.00 INCHES)
39
828998
Фильтр топливный
