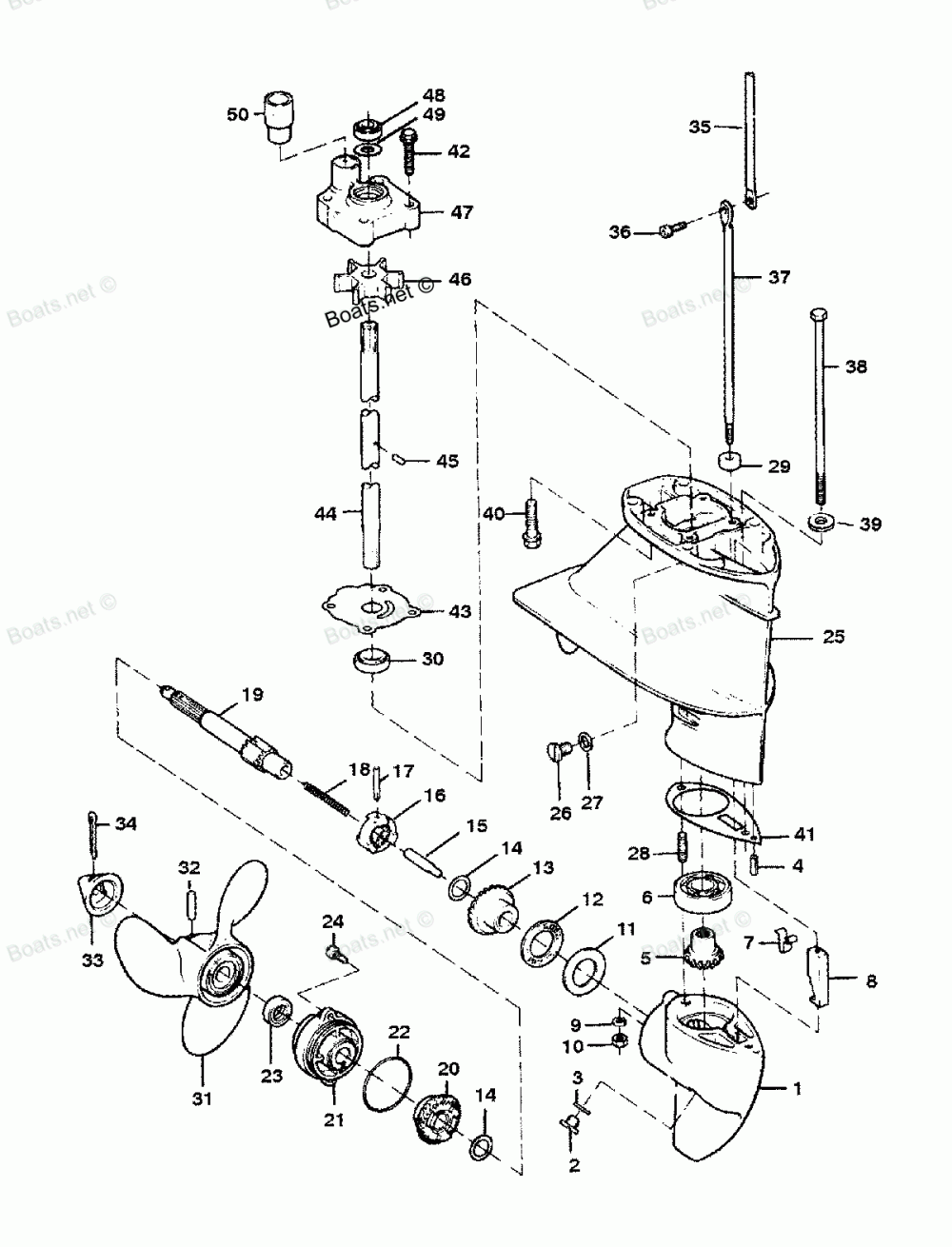

Gear Housing

Force H0092S88A

Gear Housing

#

oem код

название

цена

-

HOUSING KIT-GEAR (COMPLETE) (PAINTED)

HOUSING KIT-GEAR (COMPLETE) (PAINTED)

1

HOUSING KIT-GEAR (BASIC) (PAINTED)

HOUSING KIT-GEAR (BASIC) (PAINTED)

2

Заглушка

Заглушка

3

Шайба

Шайба

4

Штифт

Штифт

5

GEAR ASSEMBLY-PINION

GEAR ASSEMBLY-PINION

6

Подшипник

Подшипник

7

SPRING-SHIFT CAM

SPRING-SHIFT CAM

8

Кулачок

Кулачок

9

LOCKWASHER (1/4")

LOCKWASHER (1/4")

10

NUT (1/4-20)

NUT (1/4-20)

11

Шайба

Шайба

12

BEARING-PROPSHAFT

BEARING-PROPSHAFT

13

GEAR ASSEMBLY-FORWARD

GEAR ASSEMBLY-FORWARD

14

Упорная шайба

Упорная шайба

15

PIN-SHIFT

PIN-SHIFT

16

Муфта сцепления

Муфта сцепления

17

PIN-SPIRAL

PIN-SPIRAL

18

SPRING-CLUTCH

SPRING-CLUTCH

19

Гребной вал

Гребной вал

20

GEAR ASSEMBLY-REVERSE

GEAR ASSEMBLY-REVERSE

21

CAGE ASSEMBLY-PROPSHAFT (PAINTED)

CAGE ASSEMBLY-PROPSHAFT (PAINTED)

22

Уплотнение

Уплотнение

23

Уплотнение

Уплотнение

24

SCREW (1/4-20 X 5/8")

SCREW (1/4-20 X 5/8")

25

HOUSING KIT-DRIVESHAFT-UPPER (PAINTED)

HOUSING KIT-DRIVESHAFT-UPPER (PAINTED)

26

Заглушка

Заглушка

27

Шайба

Шайба

28

STUD (1/4-20 X 1.36")

STUD (1/4-20 X 1.36")

29

SEAL-GEAR SHIFT ROD

SEAL-GEAR SHIFT ROD

30

SEAL-DRIVESHAFT

SEAL-DRIVESHAFT

31

PROPELLER (8 X 9-1/4 X 3)

PROPELLER (8 X 9-1/4 X 3)

32

PIN KIT-PROPELLER (3 PINS WITH COTTER PIN)

PIN KIT-PROPELLER (3 PINS WITH COTTER PIN)

33

NUT KIT-PROPELLER

NUT KIT-PROPELLER

34

PIN-COTTER

PIN-COTTER

35

ROD-GEAR SHIFT-UPPER

ROD-GEAR SHIFT-UPPER

36

SCREW (10-24 X 1/2")

SCREW (10-24 X 1/2")

37

ROD-GEAR SHIFT-LOWER-15"-FOR MODEL 225.581998

ROD-GEAR SHIFT-LOWER-15"-FOR MODEL 225.581998

37

ROD-GEAR SHIFT-LOWER-20"-FOR MODEL 225.581988

ROD-GEAR SHIFT-LOWER-20"-FOR MODEL 225.581988

38

BOLT (1/4-20 X 7")

BOLT (1/4-20 X 7")

39

Шайба

Шайба

40

SCREW (5/16-18 X 1-1/4")

SCREW (5/16-18 X 1-1/4")

41

GASKET-GEAR HOUSING

GASKET-GEAR HOUSING

42

SCREW (1/4-20 X 1-1/4")

SCREW (1/4-20 X 1-1/4")

43

PLATE-WATER PUMP

PLATE-WATER PUMP

44

DRIVESHAFT-15"-FOR MODEL 225.581998

DRIVESHAFT-15"-FOR MODEL 225.581998

44

DRIVESHAFT-20"-FOR MODEL 225.581988

DRIVESHAFT-20"-FOR MODEL 225.581988

45

PIN-DRIVE

PIN-DRIVE

46

Импиллер

Импиллер

47

BODY ASSEMBLY-WATER PUMP

BODY ASSEMBLY-WATER PUMP

48

SEAL-DRIVESHAFT

SEAL-DRIVESHAFT

49

DISC

DISC

50

SEAL-WATER LINE

SEAL-WATER LINE

NS

SEAL KIT-GEAR HOUSING

SEAL KIT-GEAR HOUSING

NS

REPAIR KIT-WATER PUMP

REPAIR KIT-WATER PUMP
