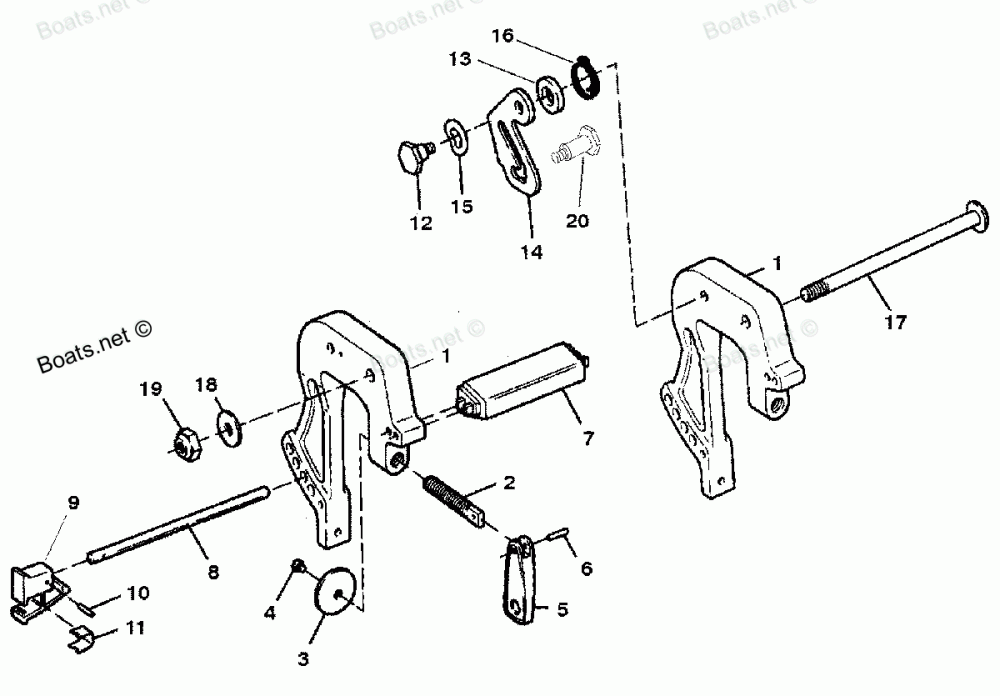

Clamp Brackets (serial # 0e143887 And Below)
Clamp Brackets (serial # 0e143887 And Below)

Clamp Brackets (serial # 0e143887 And Below)

Force H0093S88A

Clamp Brackets (serial # 0e143887 And Below)

#

oem код

название

цена

1

BRACKET-STERN (PAINTED)

BRACKET-STERN (PAINTED)

2

SCREW-STERN BRACKET

SCREW-STERN BRACKET

3

FOOT-STERN BRACKET SCREW

FOOT-STERN BRACKET SCREW

4

SCREW (10-32 X 1/2")

SCREW (10-32 X 1/2")

5

HANDLE (PAINTED)

HANDLE (PAINTED)

6

PIN-ROLL

PIN-ROLL

7

HANDLE-CARRYING

HANDLE-CARRYING

8

BAR KIT-LOCK

BAR KIT-LOCK

9

HANDLE-LOCK BAR

HANDLE-LOCK BAR

10

PIN-ROLL

PIN-ROLL

11

SPRING-LOCK BAR HANDLE

SPRING-LOCK BAR HANDLE

12

SCREW-TILT LOCK

SCREW-TILT LOCK

13

SPACER-TILT LOCK

SPACER-TILT LOCK

14

LOCK-TILT

LOCK-TILT

15

WASHER-WAVE

WASHER-WAVE

16

SPRING-TILT LOCK

SPRING-TILT LOCK

17

BOLT-STERN BRACKET PIVOT

BOLT-STERN BRACKET PIVOT

18

Шайба

Шайба

19

NUT (3/8-16)

NUT (3/8-16)

20

PIN-TILT LOCK

PIN-TILT LOCK
