БЛОК ЦИЛИНДРОВ

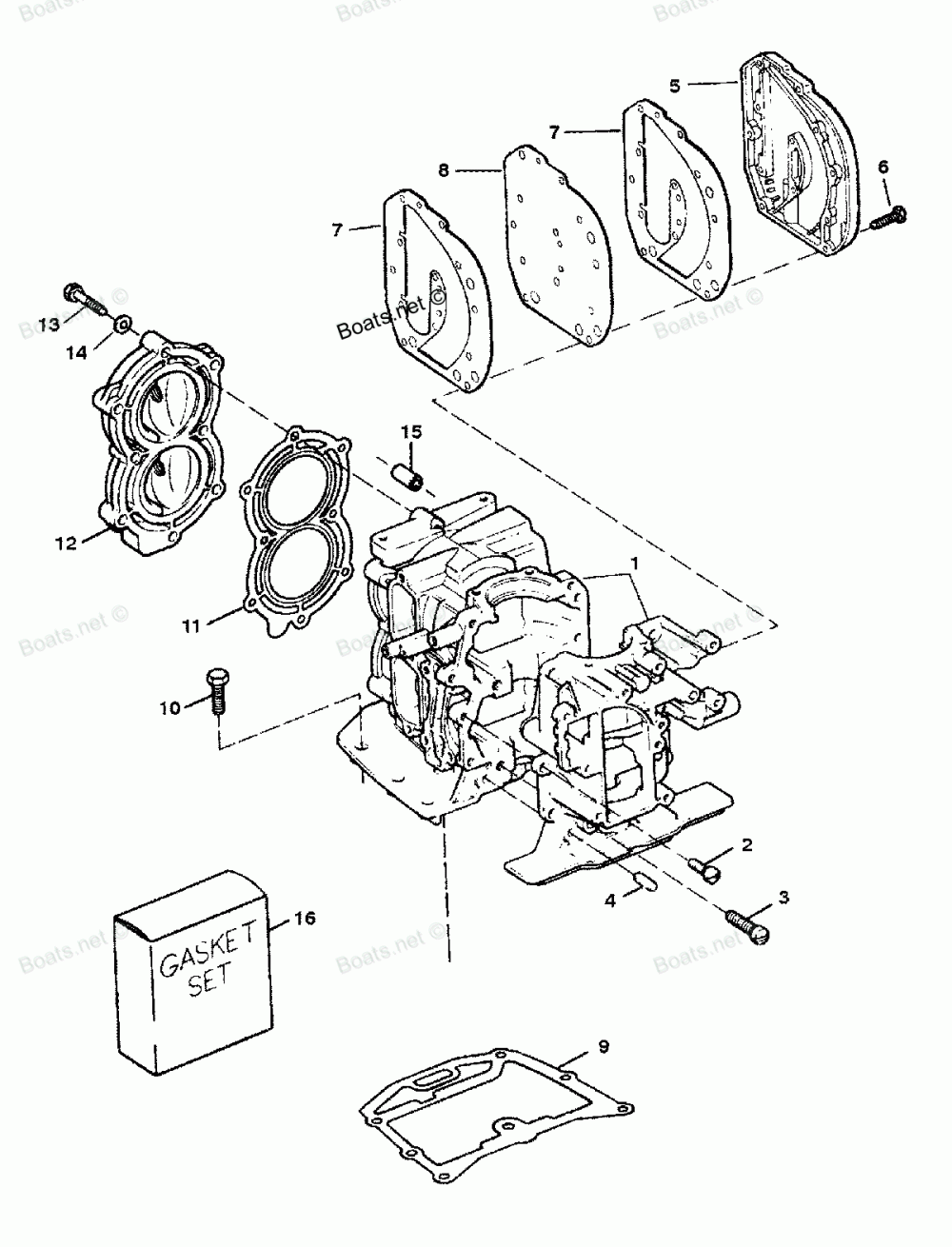

БЛОК ЦИЛИНДРОВ

БЛОК ЦИЛИНДРОВ

Force H0093S88A

БЛОК ЦИЛИНДРОВ

#

oem код

название

цена

-

SHORT BLOCK ASSEMBLY (PAINTED)

SHORT BLOCK ASSEMBLY (PAINTED)

1

CYLINDER KIT

CYLINDER KIT

2

SCREW (1/4-20 X 3/4")

SCREW (1/4-20 X 3/4")

3

SCREW (5/16-18 X 1-1/4")

SCREW (5/16-18 X 1-1/4")

4

Штифт

Штифт

5

COVER-EXHAUST (PAINTED)

COVER-EXHAUST (PAINTED)

6

SCREW (1/4-20 X 7/8")

SCREW (1/4-20 X 7/8")

7

GASKET-EXHAUST PORT COVER

GASKET-EXHAUST PORT COVER

8

PLATE-EXHAUST

PLATE-EXHAUST

9

GASKET-CYLINDER MOUNTING

GASKET-CYLINDER MOUNTING

10

SCREW (5/16-18 X 1")

SCREW (5/16-18 X 1")

11

GASKET-CYLINDER HEAD

GASKET-CYLINDER HEAD

12

HEAD-CYLINDER (PAINTED)

HEAD-CYLINDER (PAINTED)

13

SCREW-CYLINDER HEAD

SCREW-CYLINDER HEAD

14

Шайба

Шайба

15

TUBE-CYLINDER WATER JACKET

TUBE-CYLINDER WATER JACKET

16

Комплет прокладок

Комплет прокладок
