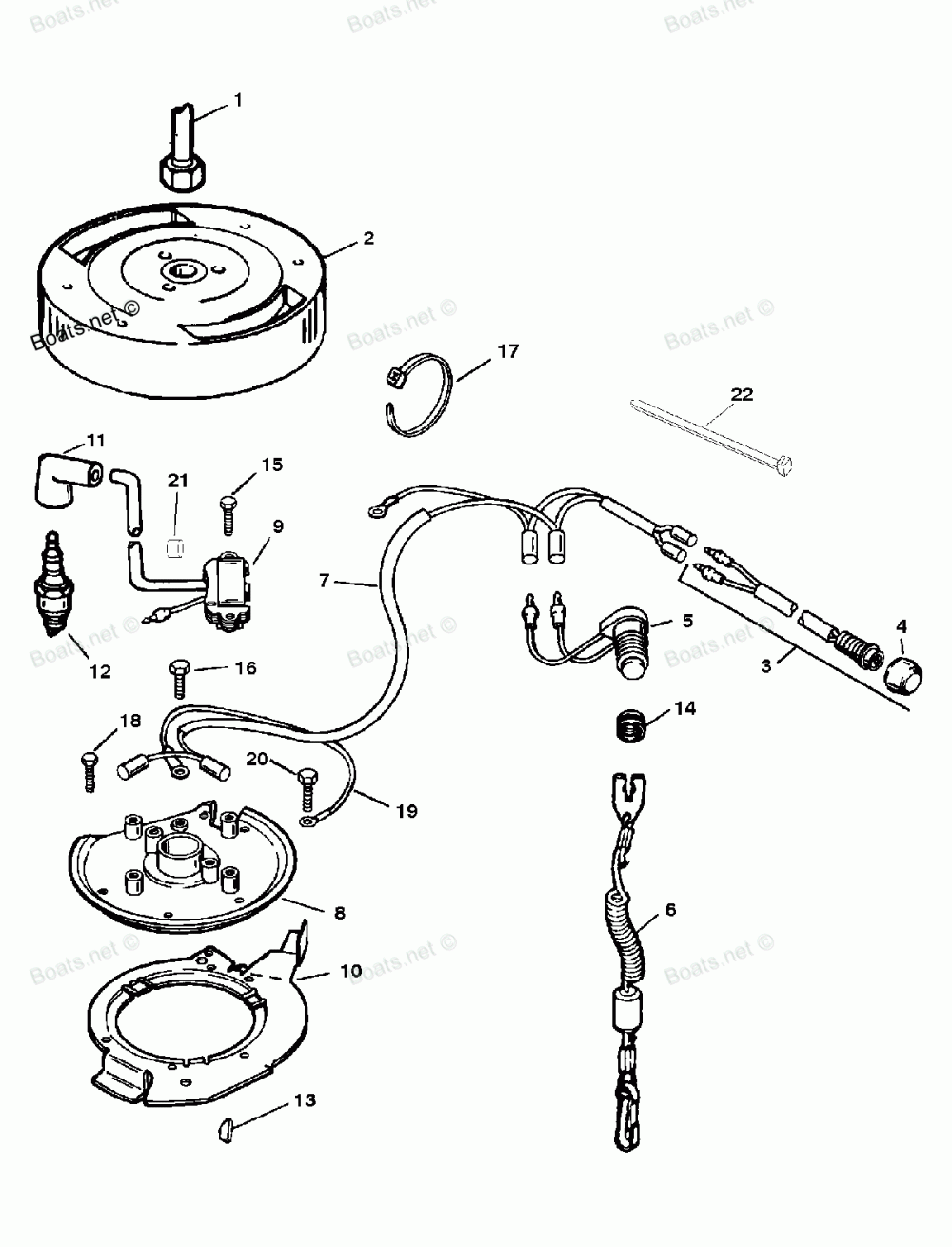

Система зажигания

Force H0093S88A
Force
#oem кодцена
1
F681091
Гайка
2
824380T1
FLYWHEEL (PAINTED)
3
824440A9
SWITCH ASSEMBLY-STOP
4
824466A3
COVER ASSEMBLY-STOP SWITCH
5
826214A1
SWITCH ASSEMBLY-EMERGENCY STOP
6
819399A1
LANYARD ASSEMBLY
7
819379A7
HARNESS ASSEMBLY-ENGINE STOP
8
826692T
PLATE-STATOR
9
819156T
MODULE-IGNITION (CUT WIRE AS REQ D)
10
826691
CAM-THROTTLE
11
FK1123
BOOT KIT-SPARK PLUG
11
818751
COVER-SPARK PLUG (RFI)
12
312
SPARK PLUG (CHAMPION # L87YC)
12
327
SPARK PLUG (RFI) (CHAMPION # RL87YC)
13
F458498-1
KEY-CRANKSHAFT/FLYWHEEL
14
F681188
NUT-STOP SWITCH SLEEVE
15
824353
SCREW (8-32 X 3/4")-IGNITION MODULE
16
824352
SCREW (10-24 X 3/8")-GROUND
17
56762
CABLE TIE (4")
18
824358
SCREW (10-24 X 1/2")-STATOR PLATE
19
60466A16
WIRE ASSEMBLY-GROUND
20
824358
SCREW (10-24 X 1/2")-GROUND
21
20117A1
MARKER SET-IGNITION MODULE CABLE
22
816311
CABLE TIE (8")
NS
824915
BEZEL-STOP SWITCH COVER
