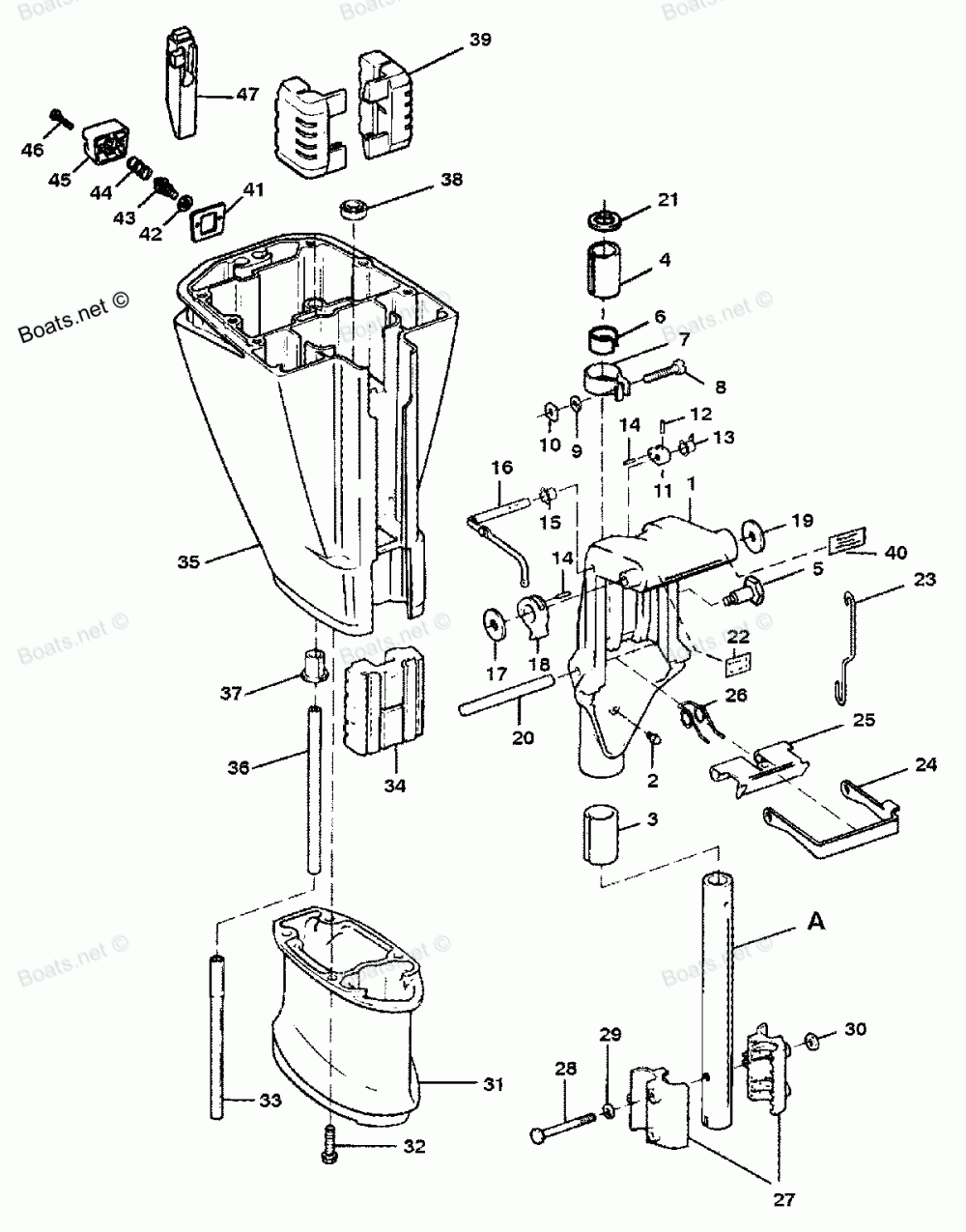

Swivel Bracket And Driveshaft Housing

Force H0093S88A
Force
#oem кодцена
1
817750A4
BRACKET KIT-SWIVEL (PAINTED)
2
F213274
FITTING-GREASE
3
F286169
BUSHING-BOTTOM (1-3/4")
4
F681169
BUSHING-TOP (1-1/8")
5
819707
PIN-TILT LOCK
6
F681631
SHOE-FRICTION-SWIVEL BRACKET
7
F286573-1
CLAMP-STEERING FRICTION
8
F1820
SCREW (1/4-20 X 1-3/8")
9
12038
Шайба
10
F1608
NUT (1/4-20)
11
F286364
LEVER-REVERSE LOCK
12
F8538
PIN-SPRING
13
26856
Втулка
14
F1794
PIN-SPRING
15
F536813
Втулка
16
FA387742
LEVER ASSEMBLY-INTERMEDIATE
17
F2037
Шайба
18
F286827
LEVER-REVERSE LOCK
19
F286286-1
Шайба
20
F1806
PIN-GROOVE
21
F286011
WASHER-SWIVEL BRACKET
22
F688585
DECAL-TILT LOCK
23
FA341510
LINK-REVERSE LOCK
24
F286433
BRACKET-SHALLOW WATER DRIVE
25
F286349
LOCK-REVERSE
26
F286300
SPRING-REVERSE LOCK
27
819320T
BRACKET-SHOCK MOUNT LOWER (PAINTED)
28
FA1844
SCREW KIT (1/4-20 X 2-3/8")
29
26992
LOCKWASHER (1/4")
30
64015
NUT (1/4-20)
31
FA492845T
EXTENSION KIT (PAINTED)
32
F430732
SCREW (5/16-18 X 1-1/4")
33
FS901244
LINE-WATER-EXTENSION
34
F286346
MOUNT-SHOCK-LOWER
35
819344T
HOUSING-DRIVESHAFT (PAINTED)
36
F286244
LINE-WATER
37
F286914-1
SLEEVE-WATER LINE
38
F901307-2
SEAL-DRIVESHAFT
39
F286347
MOUNT-SHOCK-UPPER
40
818029
DECAL-FUEL MIX
41
819669
GASKET-THERMOSTAT COVER
42
F658504
Шайба
43
819550
THERMOSTAT (105 DEGREES)
44
819329
SPRING-THERMOSTAT
45
819321
COVER-THERMOSTAT
46
819382
SCREW (.250-20 x 1.00)
47
823694
INSERT-THERMOSTAT
