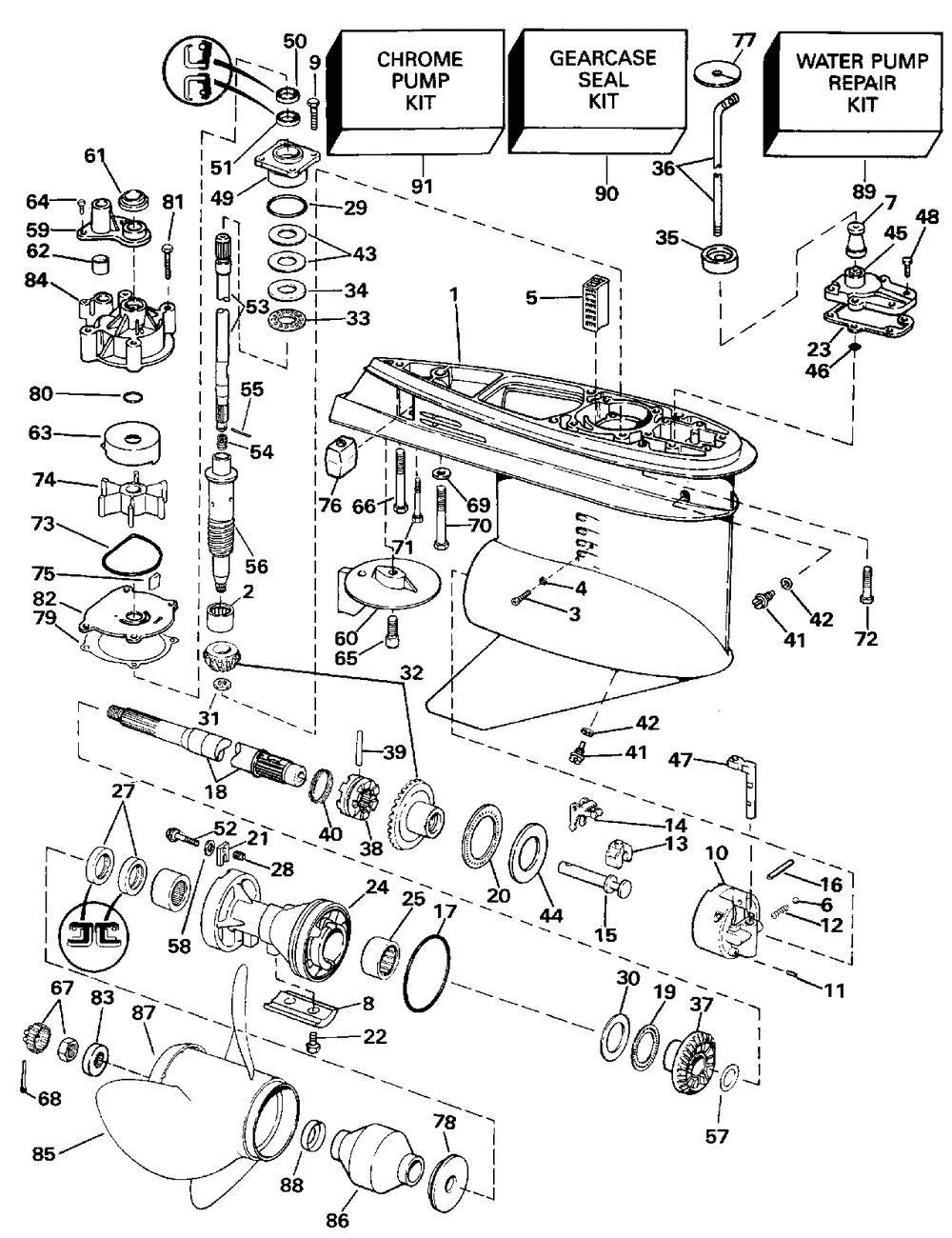

Редуктор

Evinrude E100WTXENE
Evinrude
#oem кодцена
1
0439973
Call Tech Svc/qipl
2
0387817
Roller Brg Ay
3
0324852
Retaining Screw
4
0332584
Шайба
5
0321123
Screen, Water Intk
6
0160084
Шарик
7
0321122
Spacer-shift Rod ( 25 In. (635mm) Transom Models)
8
0431708
Анодная пластина
9
0317624
Винт
10
0389455
Hsg.& Bearing Ay
11
0331880
Штифт
12
0911961
Пружина
13
0334163
Cradle-shift
14
0322938
Shifter-lever
15
0322941
Shaft-shifter
16
0328825
Pin-shifter Arm
17
0305123
Уплотнительное кольцо
18
5004765
Propshaft Ay, Serv
19
0382408
Bearing Ay, Thrust
20
0389042
Thrust Brg-fwd Gr
21
0333957
Retaining Tab
22
0908158
Винт
23
0352165
Прокладка
24
5004257
Hsg Ay, Propshaft
25
0382407
Подшипник игольчатый
26
0434467
Подшипник игольчатый
27
0334950
Уплотнение
29
0354731
Уплотнительное кольцо
30
0314731
Упорная шайба
31
0314730
Nut Pinion
32
0435123
Gearset, Fwd&pin V4
33
0387656
Thrust Brg Ay
34
0327656
Упорная шайба
35
0321008
Grommet Exh Hsg ( Also Included In Water Pump Repair Kit 395060)
36
0332122
Shift Rod-long ( 20 In. (508mm) Transom Models)
36
0332293
Shift Rod-xl ( 25 In. (635mm) Transom Models)
37
0336574
Gear, Reverse(.44)
38
0337774
Shifter-clutch Dog
39
0313448
Штифт
40
0324369
Пружина
41
0318544
Drain Screw
42
0333572
Уплотнительное кольцо
43
0323362
Shim-pinion-003
43
0323361
Shim-pinion-004
43
0314745
Shim 005
44
0327669
Упорная шайба
45
5006241
Cover Ay, Shift Rod
46
0318372
Уплотнительное кольцо
47
0915954
Detent
48
0302325
Винт
49
0439476
Ds Brg Hsg&seal Ay
50
0329922
Oil Retainer
51
0329923
Oil Retainer
52
0350271
Screw, Brg Carrier
53
5007671
Upper D/s Kit 20" ( 20 In. (508mm) Transom Models)
53
5007672
Kit, Upper D/s-25" ( 25 In. (635mm) Transom Models)
54
0335684
Пружина
55
0311538
Pin, Roll
56
0345905
Driveshaft, Lower
57
0336565
Шайба
58
0328743
Шайба
59
0338893
Cover, Impeller Hsg ( Also Included In Water Pump Repair Kit 395060)
60
0127466
Tab, Trim
61
0320943
Grommet ( Also Included In Water Pump Repair Kit 395060)
62
0314008
Grommet ( Also Included In Water Pump Repair Kit 395060)
63
0435027
Cup & Plate Ay ( Also Included In Water Pump Repair Kit 395060 Stainless Steel)
63
0435526
Cup & Plate Ay ( Chrome Plated)
64
0306643
Screw ( Also Included In Water Pump Repair Kit 395060)
65
0313715
Винт
66
0330263
Винт
67
0398042
Prop Nut & Keeper
68
0306394
Cotter Pin 10 Pk
69
0306314
Lockwasher 4pk
70
0331998
Винт
71
0328096
Screw, Anode
72
0331999
Винт
73
0331353
Seal ( Also Included In Water Pump Repair Kit 395060)
74
5001593
Kit Ay, Impeller ( Also Included In Water Pump Repair Kit 395060)
75
0331107
Imp Key ( Also Included In Water Pump Repair Kit 395060)
76
0436745
Anode&insert Ay
78
0126870
Bushing, Thrust
79
0338484
Gasket, Wtr Pmp 5pk ( Also Included In Water Pump Repair Kit 395060 Also Included In Gearcase Seal Kit 434516)
81
0335221
Screw ( Also Included In Water Pump Repair Kit 395060)
82
0435027
Cup & Plate Ay ( Also Included In Water Pump Repair Kit 395060 Stainless Steel)
82
0435526
Cup & Plate Ay ( Chrome Plated)
83
0320570
Spacer Prop Nut
84
0435485
Housing Ay, Pump ( Also Included In Water Pump Repair Kit 395060)
85
0763453
Prop-al, 15.5 X 13
85
0765186
Prop Ay, Al 15x15v6
85
0765187
Prop Ay, Al 14.8x17
85
0765188
Prop Ay, Al 14.5x19
85
0765189
Prop Ay, Al 14.3x21
85
0763470
Prop Al 14.25 X 23
85
0763962
Ssp V6 15x15 Rh
85
0763914
Vipertbx14.75x17rh
85
0763918
Vipertbx14.75x19rh
85
0763922
Vipertbx14.5x21rh
85
0177264
Raker Ii Tbx 22rh
85
0177265
Raker Ii Tbx 24rh
85
0177266
Raker-2/tbx 26 Rh
85
0177267
Rakerii Tbx 28
86
0387157
Prop Hub, 15 Spline
87
0332394
Converg Ring, V6
88
0313926
Гильца
89
5001594
Рем.комплект водяного насоса
90
5006373
Kit Ay, Seal-gc
91
0435526
Cup & Plate Ay
