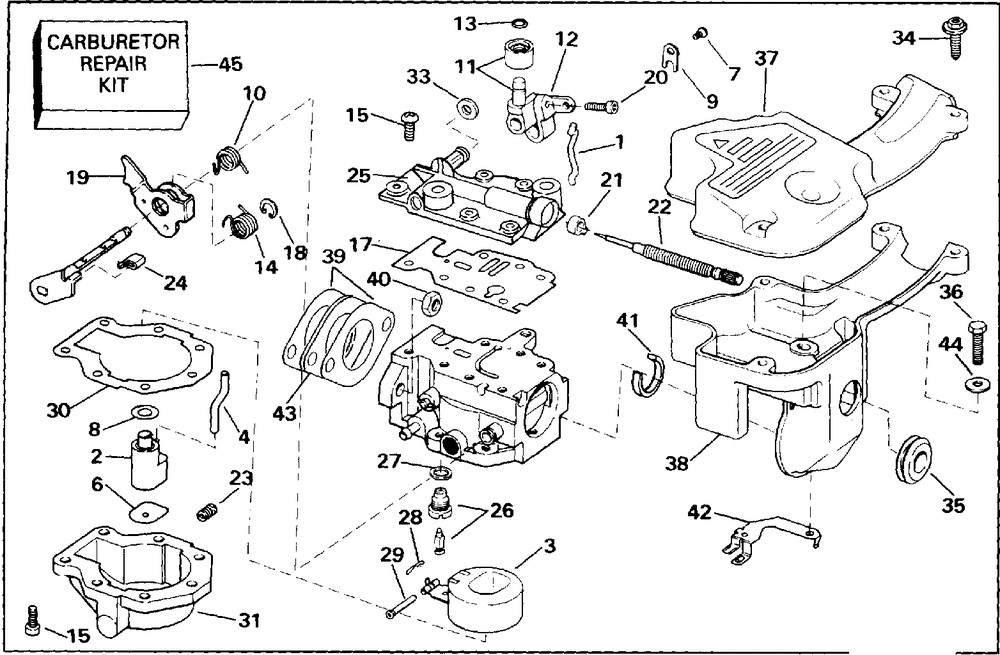

Карбюратор

Evinrude E15RELENM
Evinrude
#oem кодцена
1
0334235
Link
2
0396605
Nozzle Well Ay
3
0396514
Float&arm Ay
4
0336567
Патрубок
6
0333348
Прокладка
7
0330284
Screw ( Sel Models Only 9.9 Models Only 15 Models Only)
8
0338883
Прокладка
9
0330285
Retaining Clip ( Sel Models Only 9.9 Models Only 15 Models Only)
10
0319023
Spring ( Sel Models Only 9.9 Models Only 15 Models Only)
11
0396236
Roller, Cam Follow
12
0323327
Cam Follower
13
0308776
Уплотнительное кольцо
14
0321734
Spring Choke ( Sel Models Only 9.9 Models Only 15 Models Only)
15
0908045
Винт
17
0334043
Gasket, Carb Cvr
18
0202850
Ring ( Sel Models Only 9.9 Models Only 15 Models Only)
19
0330312
Lever ( Sel Models Only 9.9 Models Only 15 Models Only)
20
0330346
Винт
21
0315232
Retainerk
22
0435356
Valve Ay, Needle ( Late Production)
23
0323703
Orifice, .036 ( Sel Models Only)
23
0334014
Orifice ( 15 Models Only 15rel)
23
0324025
Orifice, #34 ( 9.9 Models Only 10rel)
25
0337833
Cover, Carb Body ( Late Production)
26
0396522
Float Valve & Seat
27
0301996
Шайба
28
0336842
Защелка пружинная
29
0302661
Штифт
30
0338882
Gasket, Float Bowl
31
0398068
Float Chmbr&plug
33
0321117
Кольцо
34
0330838
Винт
35
0320521
Grommet Ss Adj
36
0331758
Винт
37
0330581
Крышка
40
0328742
Nut-stud
41
0319287
Уплотнение
42
0336395
Detent
44
0306413
Шайба
45
0439073
Рем.компл.Карбюратора
