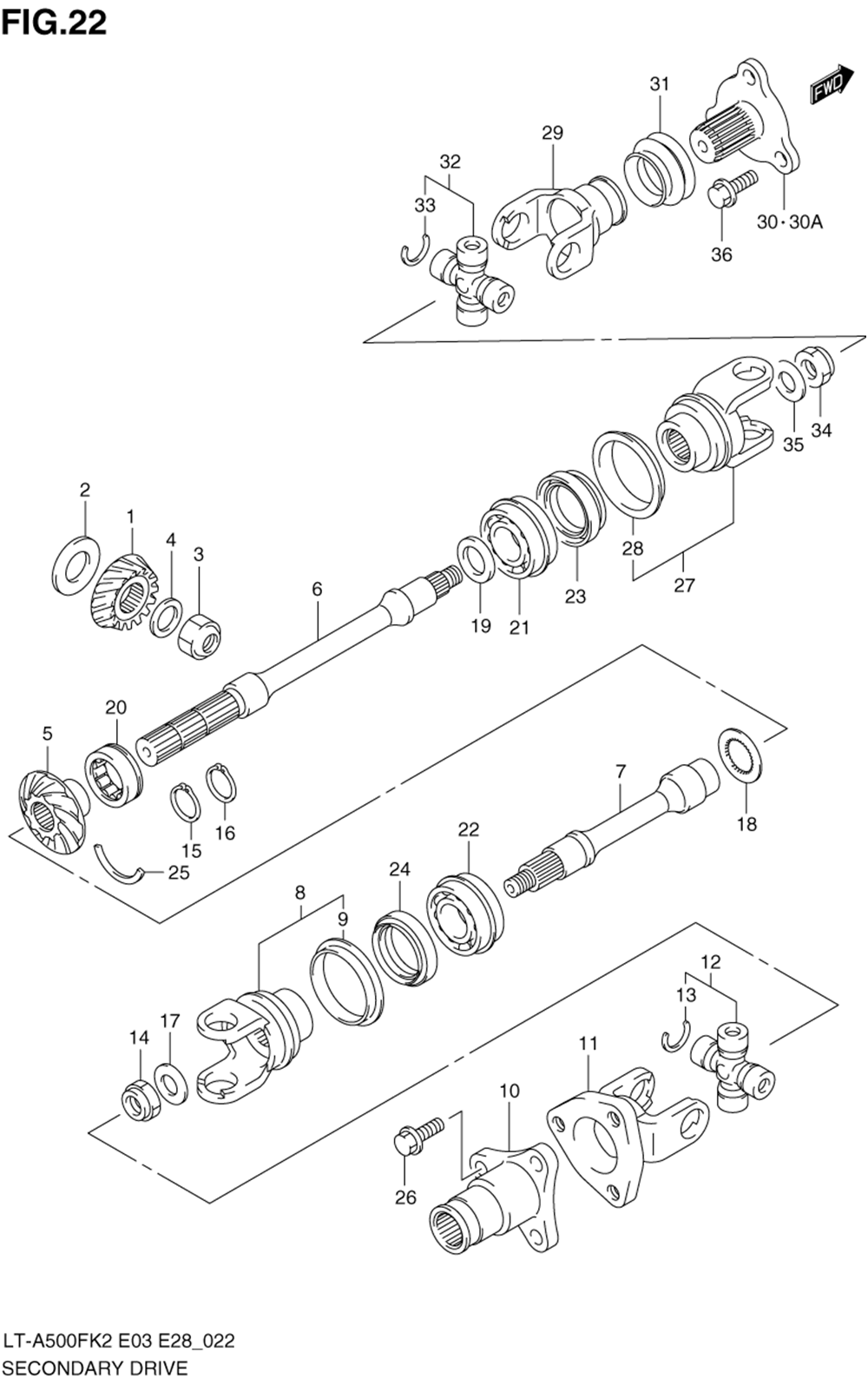

Secondary drive

Suzuki LT-A500F VINSON 4x4 AUTOMATIC
Suzuki
#oem кодцена
1
24911-44D40
Gear, Sec Drive Bevel
2
24935-19810
Shim Set, Sec Drive Bevel Gr (t:0.25/0.30/0.35/0.90/1.00/1.05/1.10/1.15)
3
09140-20012
Гайка
4
09181-20223
Washer (20x32x1.0)
5
24921-09F70
Gear, Sec Driven Bevel
6
24961-09F70
Shaft, Sec Driven Front
7
24970-09F52
Shaft, Sec Driven Output Rear
8
27130-03G10
Yoke, Rr Drive Output
9
27592-38F00
.plate, Output
10
27150-38F00
Shaft, Propeller Rear
11
27161-03G00
Yoke, Prop Shaft Joint Rear
12
27200-73813
Joint Set, Universal Rr
13
09380-25005
.circlip
14
09159-16003
Nut, Sec Driven Bevel Couplin
15
08331-3124A
СТОПОРНОЕ КОЛЬЦО
17
09160-16026
Washer, Fr Drive Output Yoke
18
09167-24002
Washer, Sec Driven Shaft
19-1
09181-25051
Shim, Sec Driven Gear
19-2
09181-25052
Shim, Sec Driven Gear
19-3
09181-25053
Shim, Sec Driven Gear
19-4
09181-25054
Shim, Sec Driven Gear
19-5
09181-25162
Shim 0.8
19-6
09181-25056
Shim, Sec Driven Gear
19-7
09181-25164
Shim 0.9
19-8
09181-25058
Shim, Sec Driven Gear
19-9
09181-25167
Washer, 5th Drive
19-10
09181-25060
Shim, Sec Driven Gear
19-11
09181-25061
Shim, Sec Driven Gear
19-12
09181-25062
Shim, Sec Driven Gear
19-13
09181-25063
Shim, Sec Driven Gear
20
09263-30050
Brg, Sec Driven Gear, Mdl
21
09267-25014
Brg, Sec Driven Output Sft Fr (25x52x20.625x52x20.6)
23
09283-34008
Oil Seal, Driven Sft, Fr (34x52x934x52x9)
25
09390-50002
Ring, Sec Driven Brg, Mdl
26
01550-1020A
Bolt, Bal Sprocket
27
27130-03G00
Yoke, Fr Drive Output
29
27140-03G00
Yoke, Rear Drive Output
30
27151-03G00
Вал гребного винта
30A
27150-03G10
Вал гребного винта
31
27153-03G00
Boot, Propeller Shaft
32
27200-19810
Joint Set, Universal Rr
33
09380-20016
.circlip
36
09103-10310
Bolt, Muf Body Support Rh
2
24935-03811
Shim Set, Sec Drive Bevel Gr (t:0.25/0.30/0.35/0.90/1.00/1.05/1.10/1.15)
