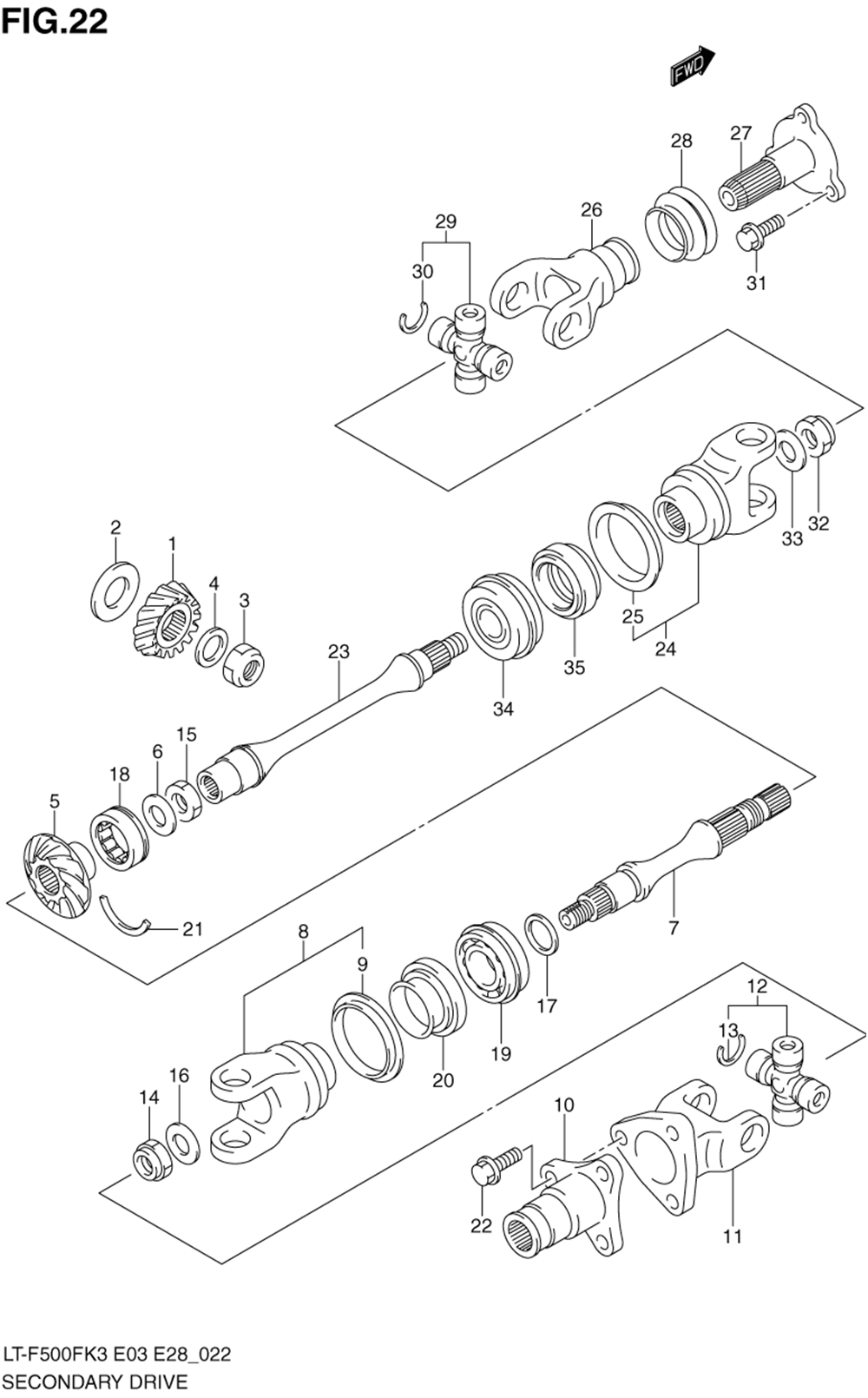

Secondary drive

Suzuki LT-F500F Vinson 4WD
Suzuki
#oem кодцена
1
24911-44D11
Gear, Sec Drive Bevel Gr
2
24935-19810
Shim Set, Sec Drive Bevel Gr (t:0.25/0.30/0.35/0.90/0.95/1.00/1.05/1.10/1.15)
3
09140-20012
Гайка
4
09164-20007
Шайба
5
24921-44D10
Gear, Sec Driven Bevel
6
08211-22365
Washer, Sec Driven Gear
7
24971-44D60
Shaft, Sec Driven Output Rr
8
27130-03G50
Yoke, Rr Drive Output
9
27592-38F00
.plate, Output
10
27150-38F00
Shaft, Propeller Rear
11
27161-03G00
Yoke, Prop Shaft Joint Rear
12
27200-73813
Joint Set, Universal Rr
13
09380-25005
.circlip
14
09159-16003
Nut, Sec Driven Bevel Couplin
15
09159-22005
Nut, Sec Driven Gear
16
09160-16026
Washer, Fr Drive Output Yoke
17-1
09181-25051
Shim, Sec Driven Gear
17-2
09181-25052
Shim, Sec Driven Gear
17-3
09181-25053
Shim, Sec Driven Gear
17-4
09181-25054
Shim, Sec Driven Gear
17-5
09181-25162
Shim 0.8
17-6
09181-25056
Shim, Sec Driven Gear
17-7
09181-25164
Shim 0.9
17-8
09181-25058
Shim, Sec Driven Gear
17-9
09181-25167
Washer, 5th Drive
17-10
09181-25060
Shim, Sec Driven Gear
17-11
09181-25061
Shim, Sec Driven Gear
17-12
09181-25062
Shim, Sec Driven Gear
17-13
09181-25063
Shim, Sec Driven Gear
18
09263-30050
Brg, Sec Driven Gear, Mdl
19
09267-25014
Brg, Sec Driven Output Sft Fr
20
09283-34008
Oil Seal, Driven Sft, Fr
21
09390-50002
Ring, Sec Driven Brg, Mdl
22
09103-10310
Bolt, Muf Body Support Rh
23
24960-44D60
Shaft, Sec Driven, Fr
24
27130-03G00
Yoke, Fr Drive Output
26
27140-03G00
Yoke, Rear Drive Output
27
27150-03G50
Вал гребного винта
28
27153-03G00
Boot, Propeller Shaft
29
27200-19810
Joint Set, Universal Rr
30
09380-20016
.circlip
34
09262-25006
Bearing (25x47x8)
2
24935-03811
Shim Set, Sec Drive Bevel Gr (t:0.25/0.30/0.35/0.90/0.95/1.00/1.05/1.10/1.15)
