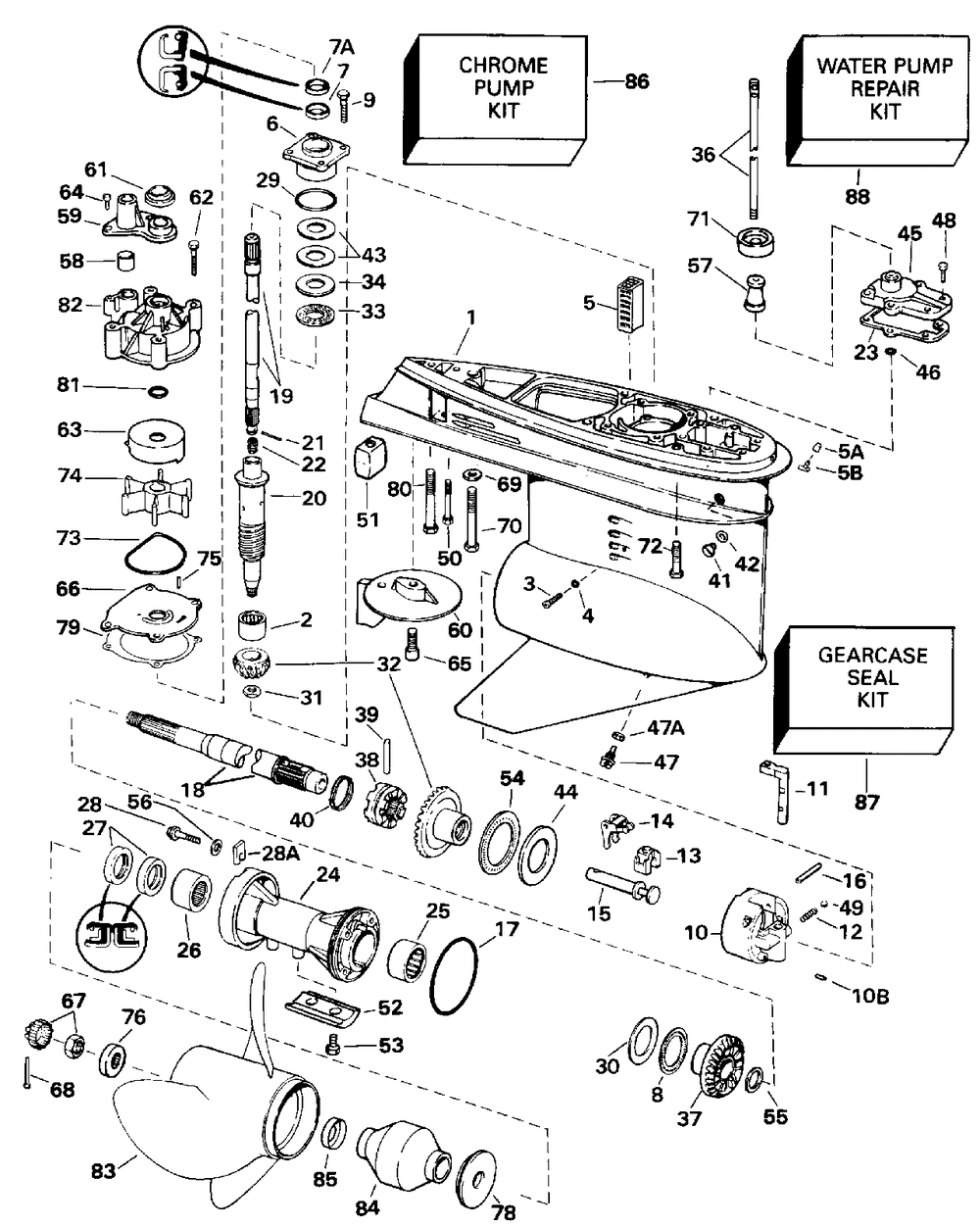

Корпус редуктора-Стандартное вращение

Evinrude VE175EXENC
Evinrude
#oem кодцена
1
0439973
Call Tech Svc/qipl
2
0387817
Roller Brg Ay
3
0324852
Retaining Screw
4
0332584
Шайба
5
0321123
Screen, Water Intk
6
0439476
Ds Brg Hsg&seal Ay
7
0329923
Oil Retainer
8
0382408
Bearing Ay, Thrust
9
0317624
Винт
10
0389455
Hsg.& Bearing Ay
11
0915954
Detent
12
0911962
Пружина
13
0334163
Cradle-shift
14
0322938
Shifter-lever
15
0322941
Shaft-shifter
16
0328825
Pin-shifter Arm
17
0305123
Уплотнительное кольцо
18
5004765
Propshaft Ay, Serv
19
5000615
Kit, Upper D/s-20" ( 20 In. (508mm) Transom Models Only)
19
5000624
25in D/s Kit Up ( 25 In. (635mm) Transom Models Only)
20
0345905
Driveshaft, Lower
21
0311538
Pin, Roll
22
0335684
Пружина
23
0352165
Прокладка
24
5004257
Hsg Ay, Propshaft
25
0382407
Подшипник игольчатый
26
0434467
Подшипник игольчатый
27
0334950
Уплотнение
28
0350271
Screw, Brg Carrier
29
0354731
Уплотнительное кольцо
30
0314731
Упорная шайба
31
0314730
Nut Pinion
32
5004938
Gearset, V6 Fwd&pin
33
0387656
Thrust Brg Ay
34
0327656
Упорная шайба
36
0335509
Rod, Shift 20" ( 20 In. (508mm) Transom Models Only)
37
0336561
Gear, Reverse .54
38
0337774
Shifter-clutch Dog
39
0313448
Штифт
40
0324369
Пружина
41
0318544
Drain Screw
42
0333572
Уплотнительное кольцо
43
0323362
Shim-pinion-003
43
0323361
Shim-pinion-004
43
0314745
Shim 005
44
0327669
Упорная шайба
45
5006241
Cover Ay, Shift Rod
46
0318372
Уплотнительное кольцо
47
0318544
Drain Screw
48
0302325
Винт
49
0160084
Шарик
50
0333350
Винт
51
0436745
Anode&insert Ay
52
0431708
Анодная пластина
53
0908158
Винт
54
0389042
Thrust Brg-fwd Gr
55
0336565
Шайба
56
0328743
Шайба
57
0321122
Spacer-shift Rod ( 25 In. (635mm) Transom Models Only)
58
0314008
Grommet ( Also Included In Water Pump Repair Kit 395062)
59
0338893
Cover, Impeller Hsg ( Also Included In Water Pump Repair Kit 395062)
5A
0305749
Nipple Plug
5B
0336535
Ниппель
60
0338742
Tab, Trim-std
61
0320943
Grommet ( Also Included In Water Pump Repair Kit 395062)
62
0335221
Screw ( Also Included In Water Pump Repair Kit 395062)
62
0302325
Винт
63
0435027
Cup & Plate Ay ( Also Included In Water Pump Repair Kit 395062 Stainless Steel)
63
0435526
Cup & Plate Ay ( Chrome Plated)
64
0306643
Screw ( Also Included In Water Pump Repair Kit 395062)
65
0313715
Винт
66
0435027
Cup & Plate Ay ( Also Included In Water Pump Repair Kit 395062 Stainless Steel)
66
0435526
Cup & Plate Ay ( Chrome Plated)
67
0398042
Prop Nut & Keeper
68
0306394
Cotter Pin 10 Pk
69
0330265
Шайба
70
0331998
Винт
71
0321008
Grommet Exh Hsg ( Also Included In Water Pump Repair Kit 395062)
72
0331999
Винт
73
0331353
Seal ( Also Included In Water Pump Repair Kit 395062)
74
5001593
Kit Ay, Impeller ( Also Included In Water Pump Repair Kit 395062)
75
0331107
Imp Key ( Also Included In Water Pump Repair Kit 395062)
76
0320570
Spacer Prop Nut
78
0126870
Bushing, Thrust
78
0128777
Bushing, Thrust
79
0338484
Gasket, Wtr Pmp 5pk ( Also Included In Water Pump Repair Kit 395062 Also Included In Gearcase Seal Kit 434516)
7A
0329922
Oil Retainer
80
0330263
Винт
84
0175401
Bushing Ay, Prop
84
0431730
Prop Hub Shtr
85
0313926
Гильца
86
0435526
Cup & Plate Ay
87
5006373
Kit Ay, Seal-gc
88
5001594
Рем.комплект водяного насоса
10B
0331880
Штифт
28A
0333957
Retaining Tab
47A
0333572
Уплотнительное кольцо
